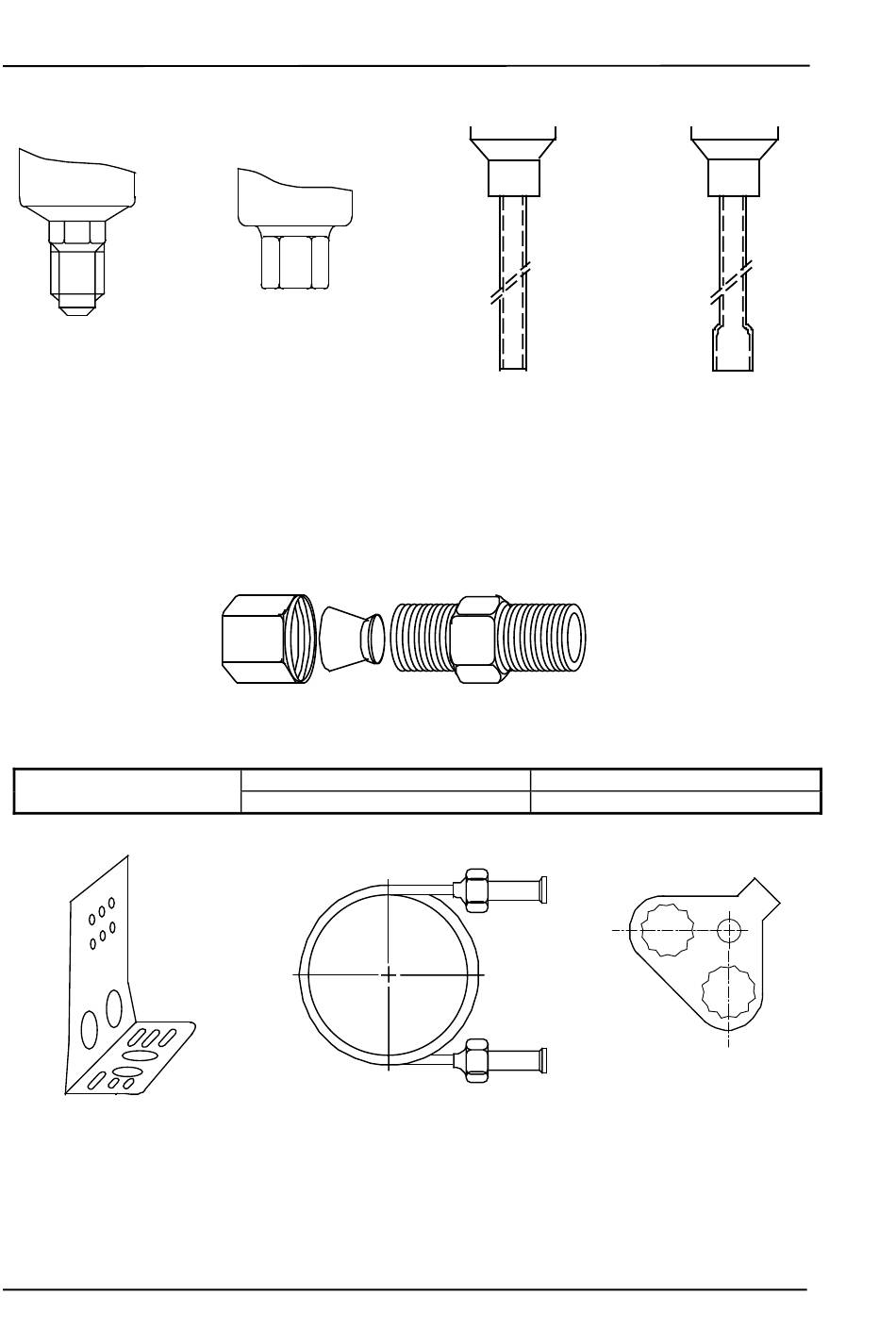

Fig. 4
Style 5
Male connector
7
/
"-20 UNF for 1/4"
16
6 mm flare nut.
Description
Fits into style 15
pressure connectors
Fig. 9
Mounting bracket
Order number 271-51L
Catalogue Section 6
Pressure connections
Fig. 5
Style 15
Female connector
1
/
"-18 NPT
4
Accessories (optional)
Fig. 8
Application
For 6 mm copper or steel tubing
For 8 mm copper or steel tubing
Fig. 10
90 cm Capillary with (2) flare
nuts (1/4" SAE)
Order number SEC002N600
Fig. 6
Style 28
Braze connection
6 mm ODM
Order number
CNR003N001R
CNR003N002R
Order number KIT023N600
P78
Issue 03/04/2002
Fig. 7
Style 30
Braze connection
1/4" ODF
Fig. 11
Locking kit
