ASSEMBLY INSTRUCTIONS ekey home (net) integra
NOTE ON THE DOCUMENT
These assembly instructions as well as the additional information and instructions
on the supplied DVD are not subject to updating. You can find the most up to date
version of these documents at www.ekey.net. Subject to optical and technical
amendments, as well as printing and typing errors
Please also observe the information on the supplied DVD as well as these
DELIVERY CONTENTS
FINGERSCANNER SEAL CONTROL PANEL
2 X SCREWS 2 X SCREWS
LK 2.9 X 19 LK 2.9 X 38

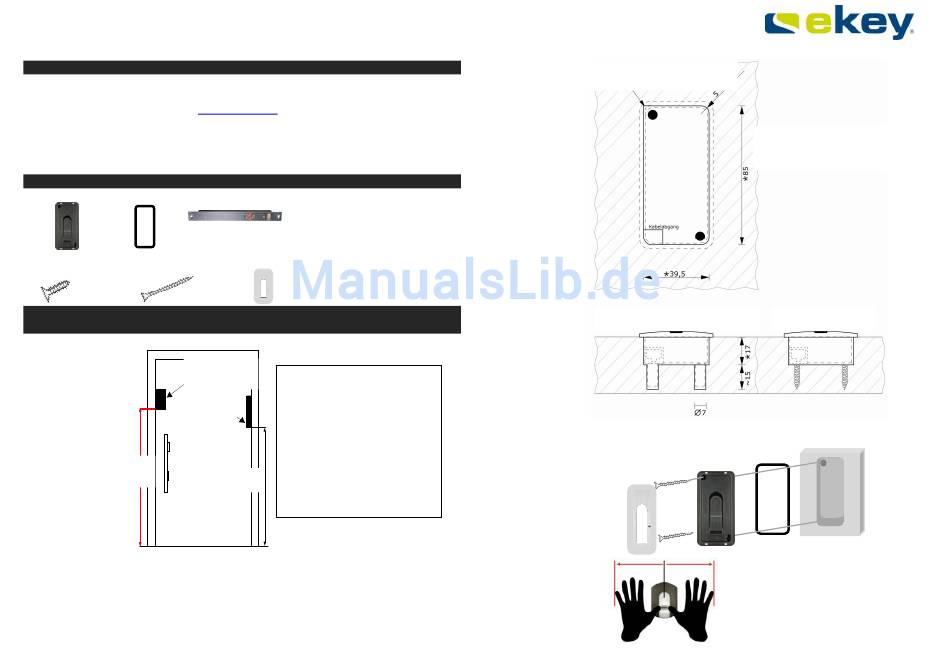

ASSEMBLY OF THE EKEY HOME (NET) INTEGRA – FINGERPRINT
SCANNER
MOUNTING HEIGHT
Fingerprint
Fingerscanne
scanner
r
Steuereinhei
Control
t
panel
155cm
m
Before you mount the fingerprint scanner and control panel, a counter-sinking in
the door leaf or door frame is necessary.
During installation please make sure that there is a space of approx. one hand's width on both sides
of the fingerprint scanner, in order to guarantee that the device functions without a problem.
WARNING !
instructions.
INSTRUCTIONS
DECORATIVE ELEMENT
The specified mounting
135cm
height is
or higher!
Only by mounting the
device at the correct
height can guarantee
good operation and
m
thereby flawless
130cm
functioning !
130
c
COUNTER-SINK
DVD
For mounting without assembly screw anchors (e.g. in a door frame) the screw
anchors applied to the casing have to be cut off.
ATTACHMENT TO THE DOOR LEAF
Corner or radius 5mm
(on all 4 corners)
*
dimensions (can vary depending
on the material)
Version 1 (installation screw anchors)
recommended milling
Version 2 (screws)
