WT306 -- MULTIFUNCTIONAL CLOCK
1. Introduction
Thank you for buying the WT306 ! This multifunctional clock does much more than merely display the correct time !
This device is also equipped with several other functions : a calendar, an alarm, a snooze function, a stopwatch, a
countdown timer and a temperature read-out.
2. Features

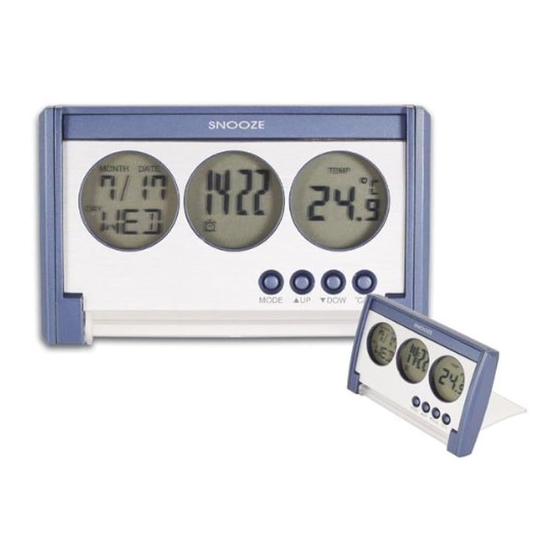

The device has three displays. The one the left displays the month, the date and the day of the week. The middle
one displays the time and you can read out the temperature on the right display.
Normal display mode : Hours, minutes, date, month, day of the week and temperature are displayed. Range for
Alarm/snooze mode : Set the alarm and press an arbitrary button while the alarm is sounding to activate the
Stopwatch : Put the left-hand selector at the back in the TIMER position and press MODE. Max. count
Countdown timer mode : Put the left-hand selector at the back in the TIMER position and press MODE. Max.
Time display mode : 12h- or 24h-mode.
Thermometer : Displays the temperature in °C or °F.
3. Battery
Open the battery compartment at the back and insert the included CR2025 battery (3V). The battery's positive pole
should face upwards! Replace the battery when the digits on the display are no longer clearly legible.
4. Setting the Clock
Place the left-hand selector at the back of the device in the T•SET position. The digits for the hours start to flash.
Note that the digits will change faster if the UP or DOW button is held Enter the hours with UP or DOW and confirm
them by pressing the MODE button. The digits for the minutes start to flash. Enter the minutes with UP or DOW and
confirm with MODE. The digits for the year start to flash. Enter the year (1900-2099) with UP or DOW and confirm
with MODE. The digits for the month start to flash. Select the month with UP or DOW and confirm with MODE. The
digits for the date start to flash. Enter the date with UP or DOW and confirm with MODE. Note that the day of the
week is adjusted automatically. Place the left-hand selector at the back in the NORMAL position to leave the time
setting mode. Note that the
selected.
5. Alarm and Snooze Function
Hold the MODE button in the normal display mode to display the current alarm time. Place the left-hand selector at
the back in the AL•SET position. The current alarm time is displayed on the middle display and the digits for the
hours are flashing. Enter the hours with UP or DOW and confirm with MODE. The digits for the minutes start to flash.
Enter the minutes with UP or DOW and confirm with MODE. The digits for the snooze delay snooze activation delay
WT306
the year setting : 1900 to 2099.
snooze mode (right-hand selector at the back in SNZ position).
is 29h 59min 59sec.
countdown is 29h 59min 59sec.
symbol is always displayed on the central display if the normal time display mode is
