Technical Data; D1. Mechanical Data - Divus Touchzone Technische Bedienungsanleitung

TZ07-B, TZ07-W
D. T
ECHNICAL DATA

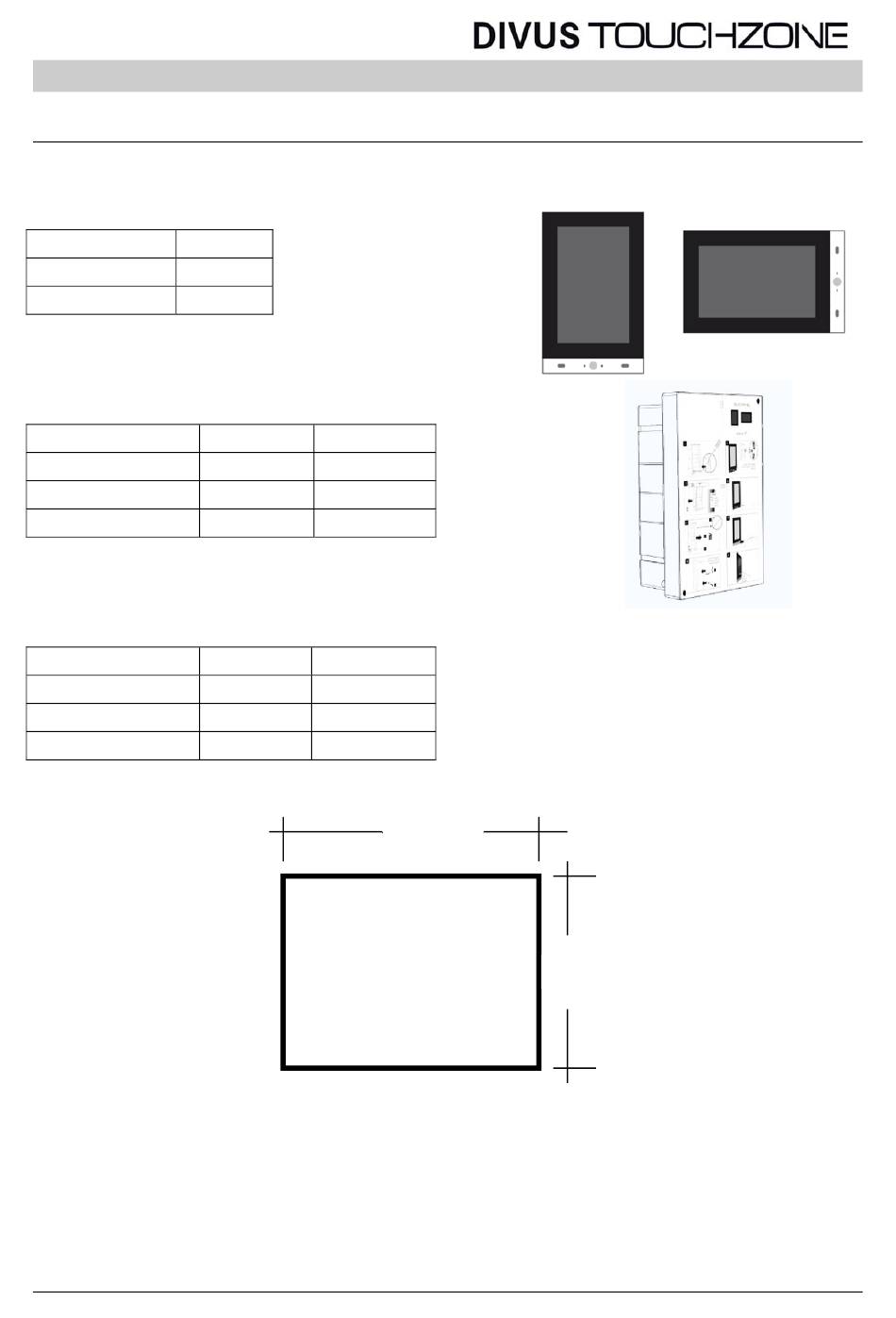

D1. Mechanical data

Outside dimensions DIVUS TOUCHZONE:
TZ07
width (d): 136 mm
height (e): 213 mm
Cut-out dimensions wall mount Box:
width (d):
height (e):
depth:
Dimensions in mortarless mount kit:
width (d):
height (e):
depth:
For the cutout see the wall mount box
Fixing elements
DIVUS TOUCHZONE has to be fixed to the wall mount box using the magnet and the furnished screw.
Mechanical characteristics
Front face: Alloy anodized
PC Unit: Plastic
MTZ07 MTZ07-W
129 mm 141 mm
210 mm 220 mm
75 mm 80 mm
MTZ07-T MTZ07-WT
190 mm 190 mm
210 mm 210 mm
75 mm 80 mm
d
e
