A-1
7 x 14 x 3.5mm
Bearing
AX31406 x2
M2 x 8mm
AX31066 x6
A-2
5x14x5mm
Bearing
AX31407 x1
5 x 11 x 4mm
Bearing
AXA1221 x1
M2.5 x 18mm
AXI235102 x4

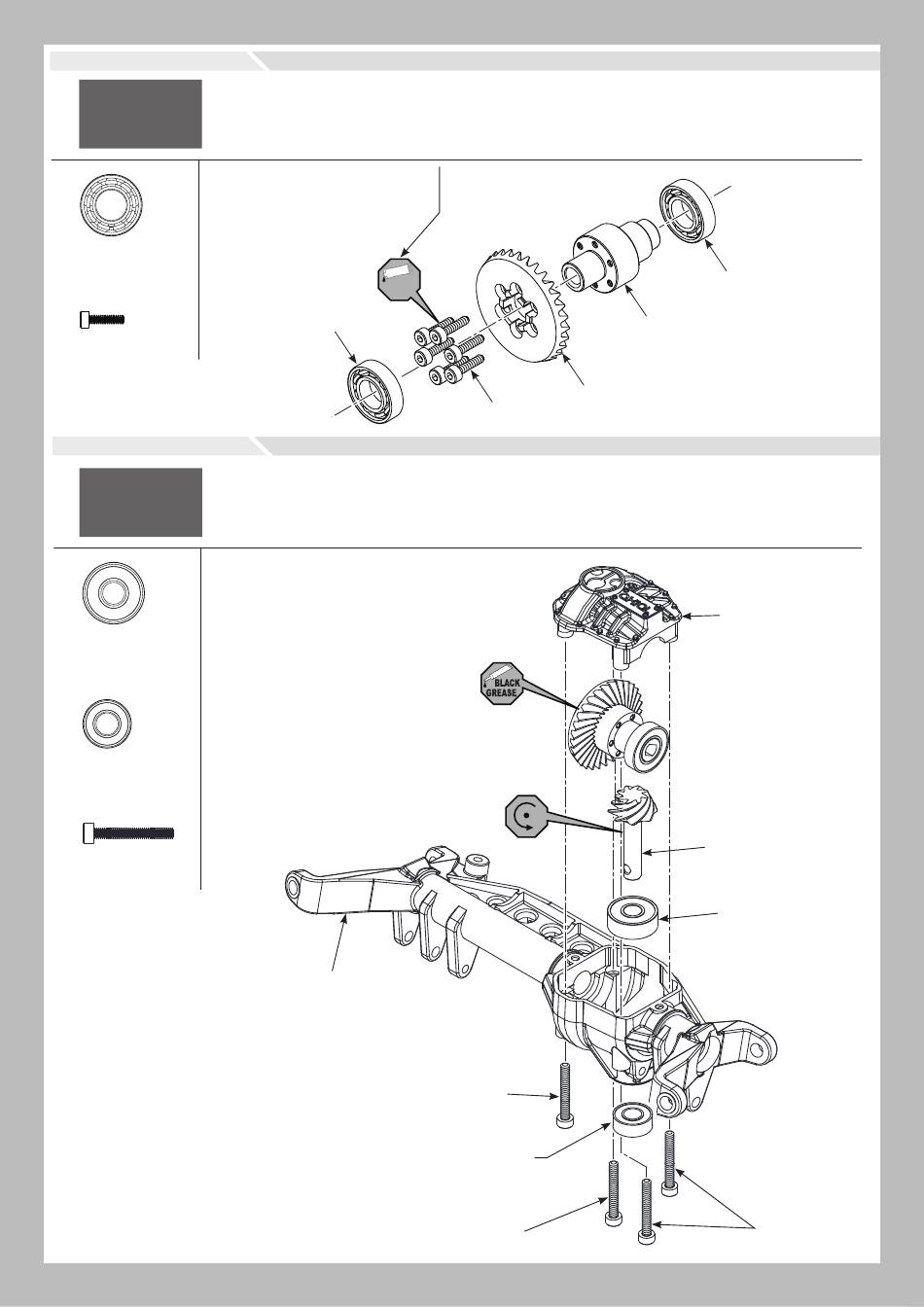

EN Front Ring Gear/Locker Assembly
DE Vorderes Hohlradgetriebe/Sicherungsbaugruppe
FR Assemblage engrenage à anneau avant/blocage
IT Assemblaggio corona dentata/blocco anteriore
EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia
THREAD
LOCK
AX31406
EN Front Third Member Installation
DE Montage des Vorderachseingangs
FR Montage du différentiel avant
IT Montaggio terzo membro anteriore
AXI232022
AXI235102
AXI232002
AXI232003
AX31066
AXA1221
AXI235102
8 8
AX31406
AXI232026
AXI232003
AX31407
AXI235102
