3.1

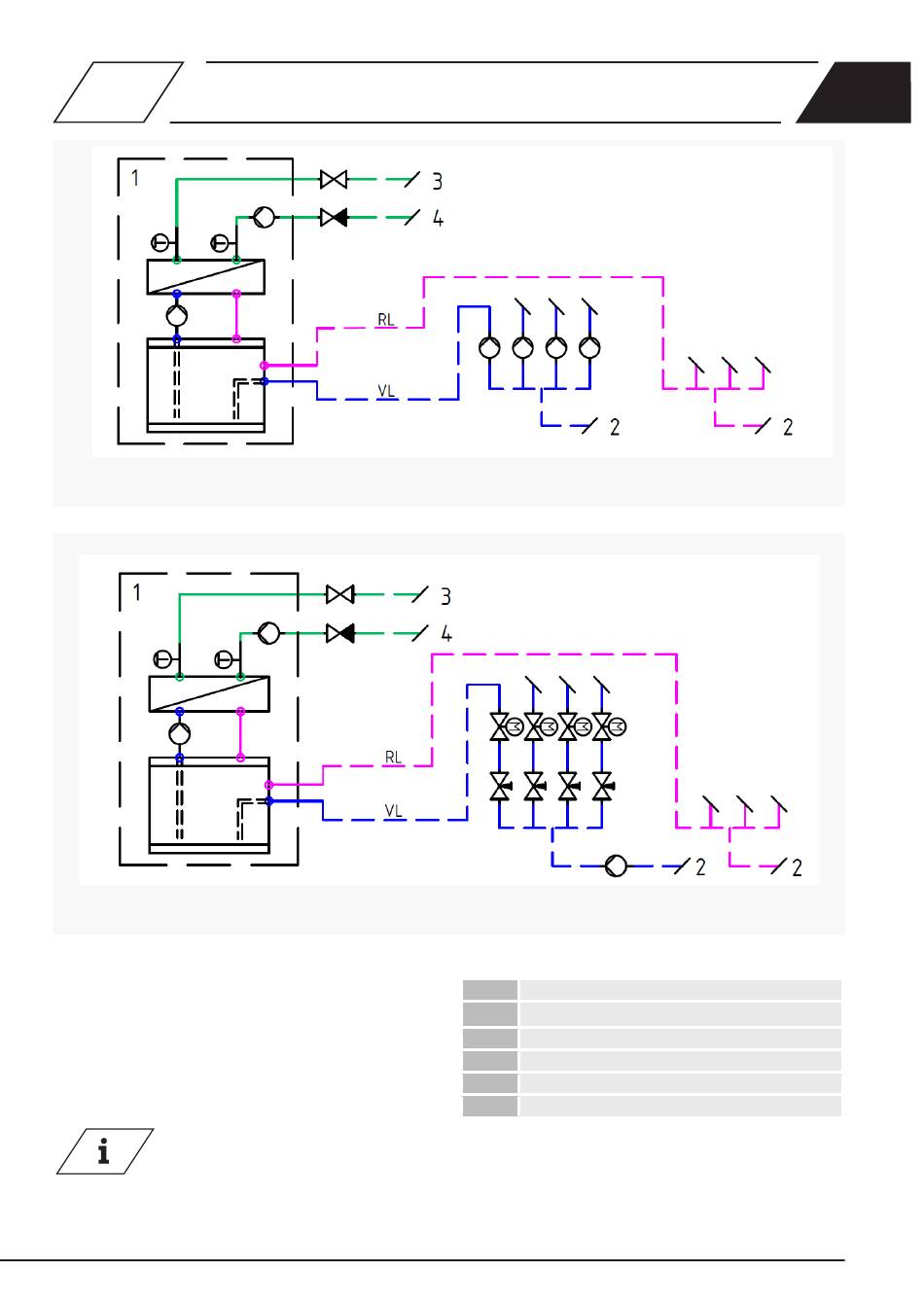

Connection diagrams
Connection of pressure-free manifolds
Connection of pressurised manifolds
Connection diagrams
The cold water chiller can be connected to the following cooling
systems:
•
Chilled water unit
•
Buffer tank
•
Pressure-free manifold
•
Pressurised manifold
Information
The shut-off devices on the process medium
side are not included in the scope of supply
and must be provided by the customer.
1 KHS CoolFlow cold water chiller
2 Cooling system
3 Connection to cold water main distributor (outlet)
4 Cold water circulation header (inlet)
VL Flow
RL Return
