4.1

Mechanical installation

The Dräger RVP 5000 is designed to be installed in a cabinet.
Make cuts and holes in accordance with the installation
dimensions.

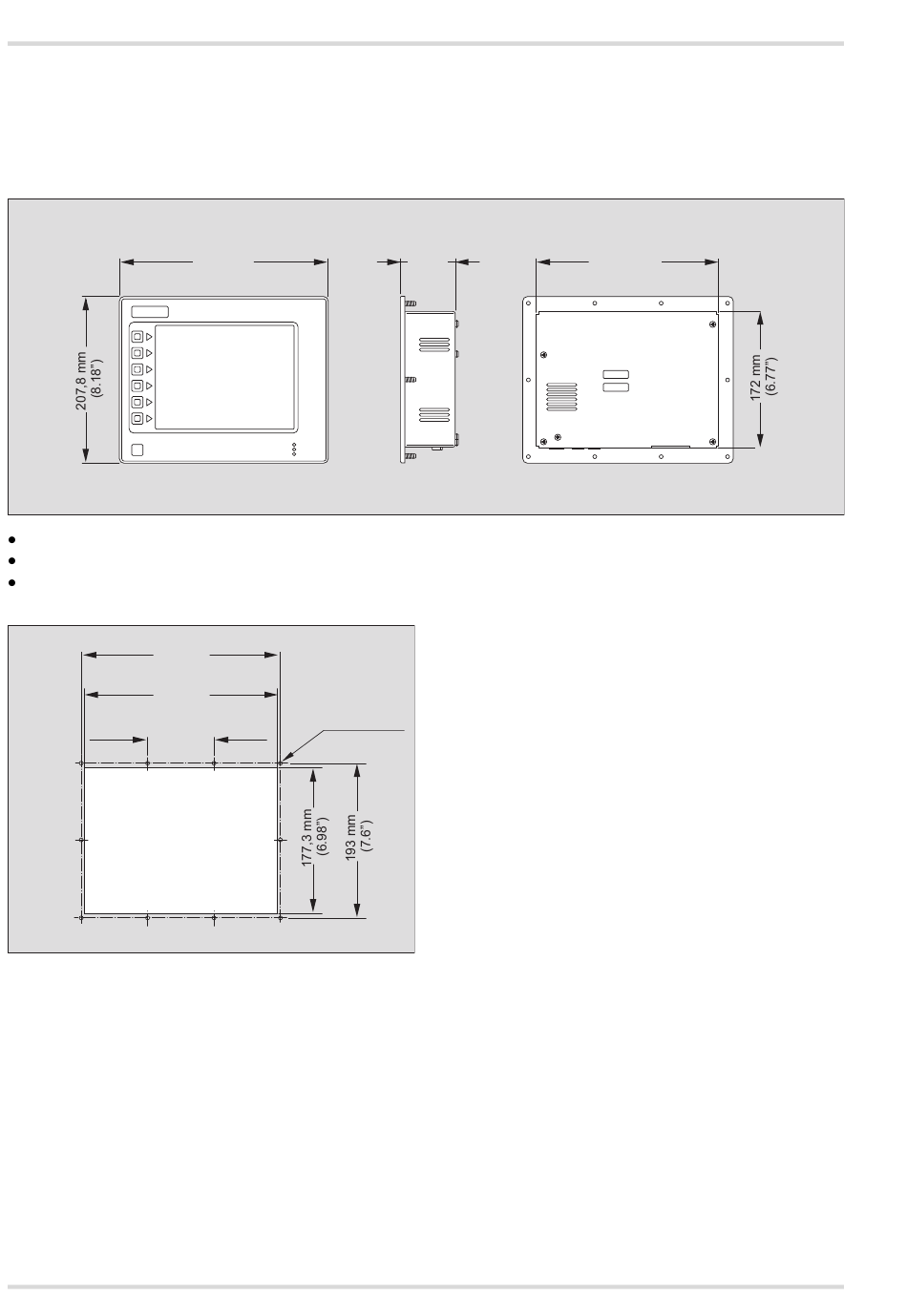

Dimensions in mm (inch)
All tolerances ±0.25 mm (±0.010")
Insert and screw in the Dräger RVP 5000
247,7 mm
(9.75")
231,5 mm
(9.115")
82,6 mm
(3.25")
24
262 mm
(10.32")
10 x Ø4,8 mm
(Ø0.188")
73 mm
(2.9")
05533194.eps
228 mm
(8.96")
Dräger RVP 5000
05133194.eps
