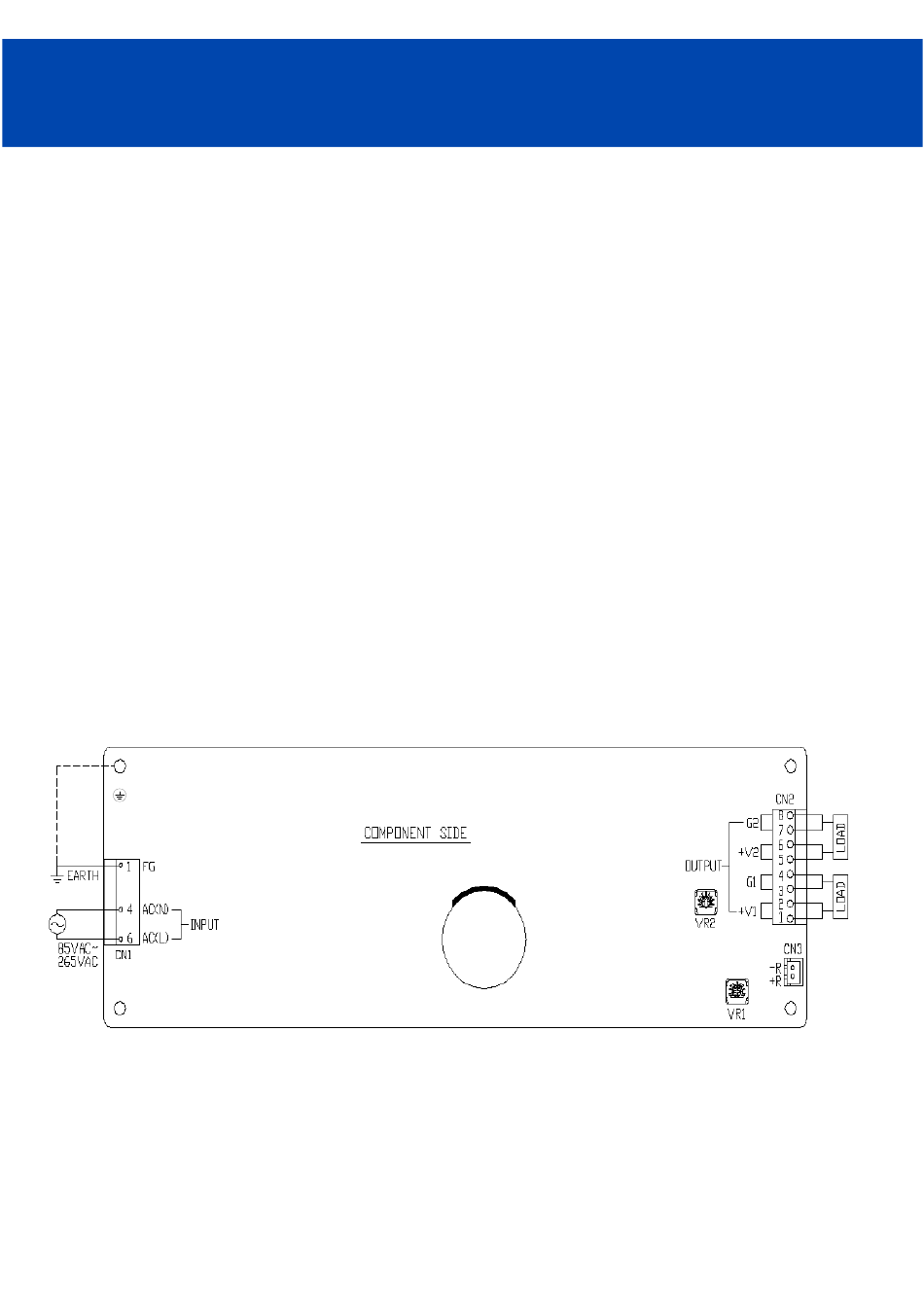

2. Terminal Connecting Method
Pay attention to the input wiring. If it is connected to the
wrong terminal, the power supply will be damaged.
·
Input must be turned off when making connections.
·
Connect FG terminal of input connector and mountable
PE to ground terminal of the equipment.
·
Output current of each connector pin must be less than
5A. ( Except /T model which M4 screw is used. )
·
The output load line and input line shall be separated
and twisted to improve noise sensitivity.
·
Remote ON/OFF control lines shall be twisted or use
shielded wire.
·
Use recommended input/output connector housing,
terminal pin & crimping tool.
Connector housing and terminal pin is not included
with this product.
·
When connecting or removing connector, do not apply
stress to PCB.
ZWD100PAF
- 4 -
TDK-Lambda
ZWD100PAF Series
INSTRUCTION MANUAL
