48 AVENTICS | GPC | R402003957–BDL–001–AB
Installation

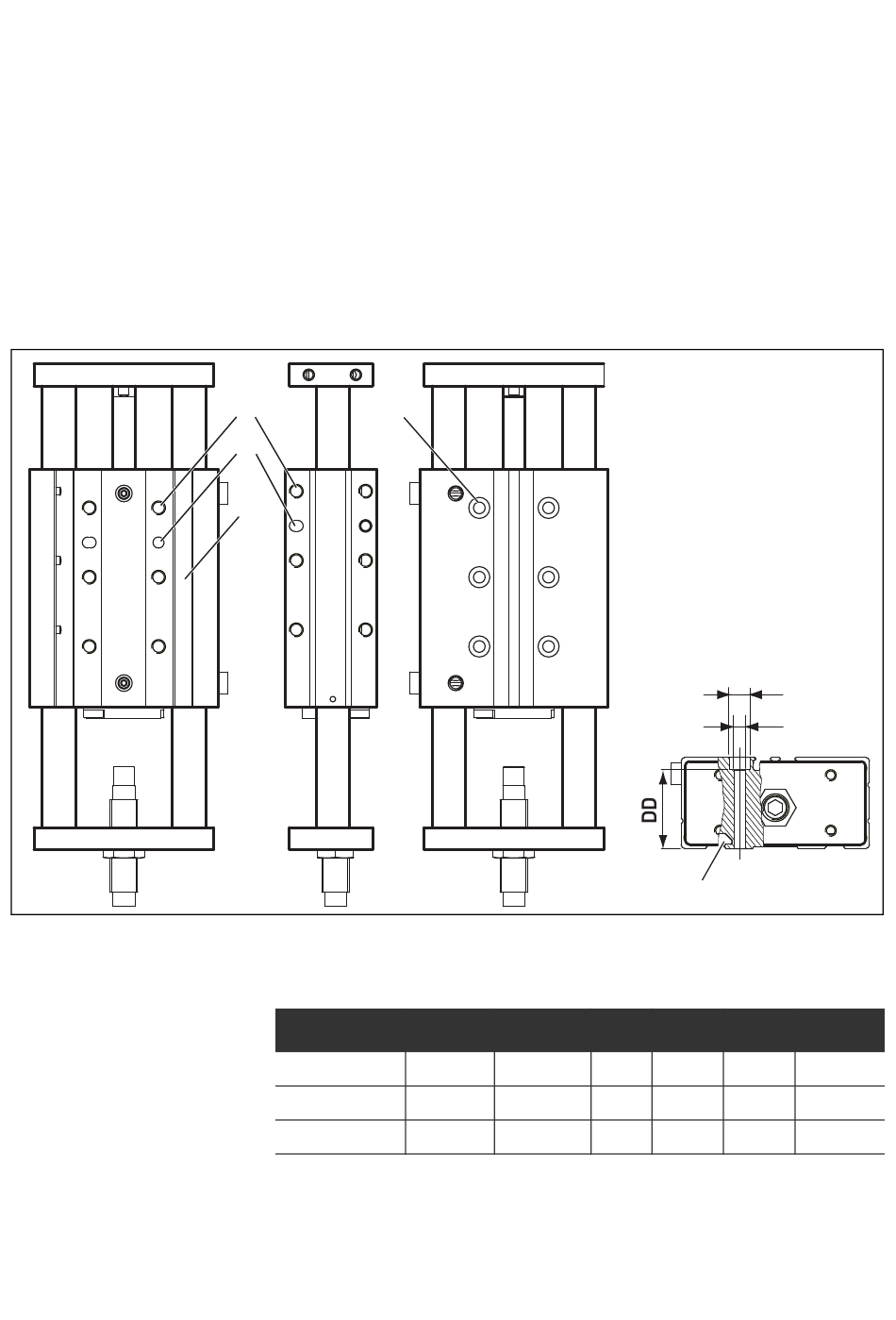

Abb. 5: Mounting holes GPC-E

6.1.3 GPC-E

The GPC-E cylinder is attached to the surface by using either
threaded holes (A) from below or from the side, or by using
through holes (D) from above. If necessary, use guide pins in
corresponding holes (B).
Use screws according to the following table. Alternatively, use
T-groove nuts (T).
A D
B
T
Tabelle 7: Mounting holes GPC-E
Piston size
12 mm
16 mm
20 mm
1)
Thickness of cylinder with countersunk screw head
A B
M5 x 8 4 H7 x 4
M5 x 8 4 H7 x 4
M6 x 10 4 H7 x 4
D2
D
T
1)
Ø Ø DD
D D2
4.2 7.6 20
4.2 7.6 28.5
5.2 9.5 30.5
00129075
T-groove
N6
N6
N6
