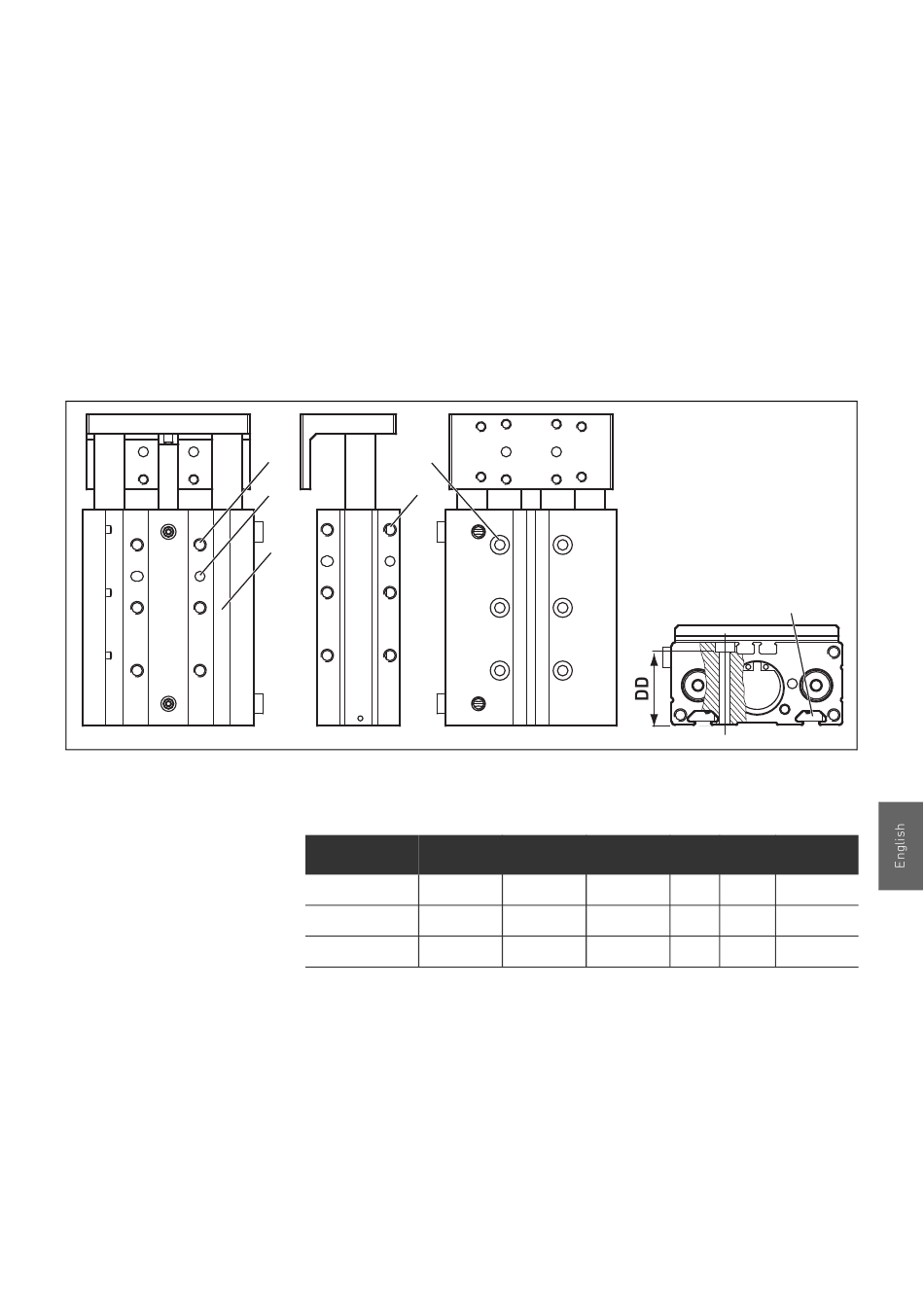

Abb. 4: Mounting holes GPC-TL
AVENTICS | GPC | R402003957–BDL–001–AB

6.1.2 GPC-TL

The GPC-TL cylinder is attached to the surface by using either
threaded holes (A) from below or by using through holes (D) from
above. If mounting the cylinder sideways, use threaded holes (C). If
necessary, use guide pins in corresponding
holes (B).
Use screws according to the following table. Alternatively, use
T-groove nuts (T).
A D
B C
T
Tabelle 6: Mounting holes GPC-TL
Piston size
A
12 mm M5 x 8
16 mm M5 x 8
20 mm M6 x 10
1)
Thickness of cylinder with countersunk screw head
B C D
4 H7 x 4 M5 x 8 4.2
4 H7 x 4 M5 x 8 4.2
4 H7 x 4 M6 x 10 5.2
47
Installation
T
00129074
1)
Ø DD
T-groove
20 N6
28.5 N6
30.5 N6
