Instructions for use

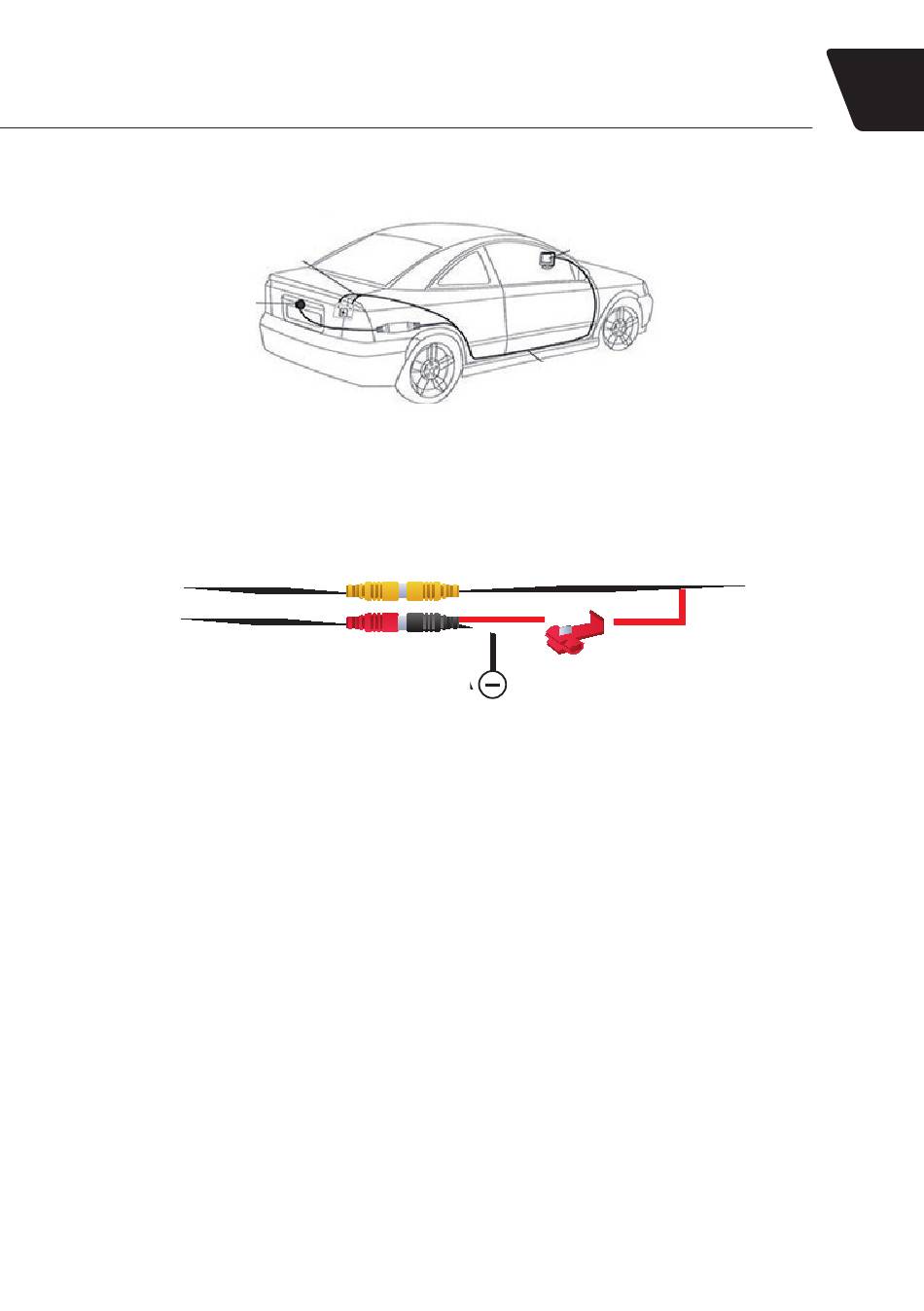

GUIDING THE 6M CABLE THROUGH THE CABIN
1. Plan the route of the cable from the trunk (taillight area) to the car dashboard, i.e. the point where you
will install the screen.
2. It is recommended not to guide the cable on the surface – it will be exposed to wear and tear.
3. Guide the wire under the car liner, headliner, or plastic elements of the car.
CONNECTING THE SCREEN
SCREEN CABLE
KABEL MONITORA
1. Place the screen in the desired location on the dashboard.
2. Connect the red wire of the 6M CABLE to the red wire of the SCREEN POWER SUPPLY CABLE. You
can use the supplied (QUICK) CONNECTOR for that purpose.
3. Connect the red plug of the SCREEN CABLE to the black plug of the SCREEN POWER SUPPLY
CABLE.
4. Connect the yellow plug of the SCREEN CABLE to the yellow plug of the 6M CABLE.
5. Connect the black wire of the POWER SUPPLY CABLE to the car ground (e.g. in the compartment
under the steering wheel, or in the fuse box area).
OPERATING THE REARVIEW CAMERA
If you have performed all the steps correctly, when you put the car in reverse, the power supply from the
taillight should activate the rearview camera and the screen; as a result, the screen should display the
camera image.
CABLE 6 M
KABEL 6 M
GROUND
