Tracer RVIEW S1

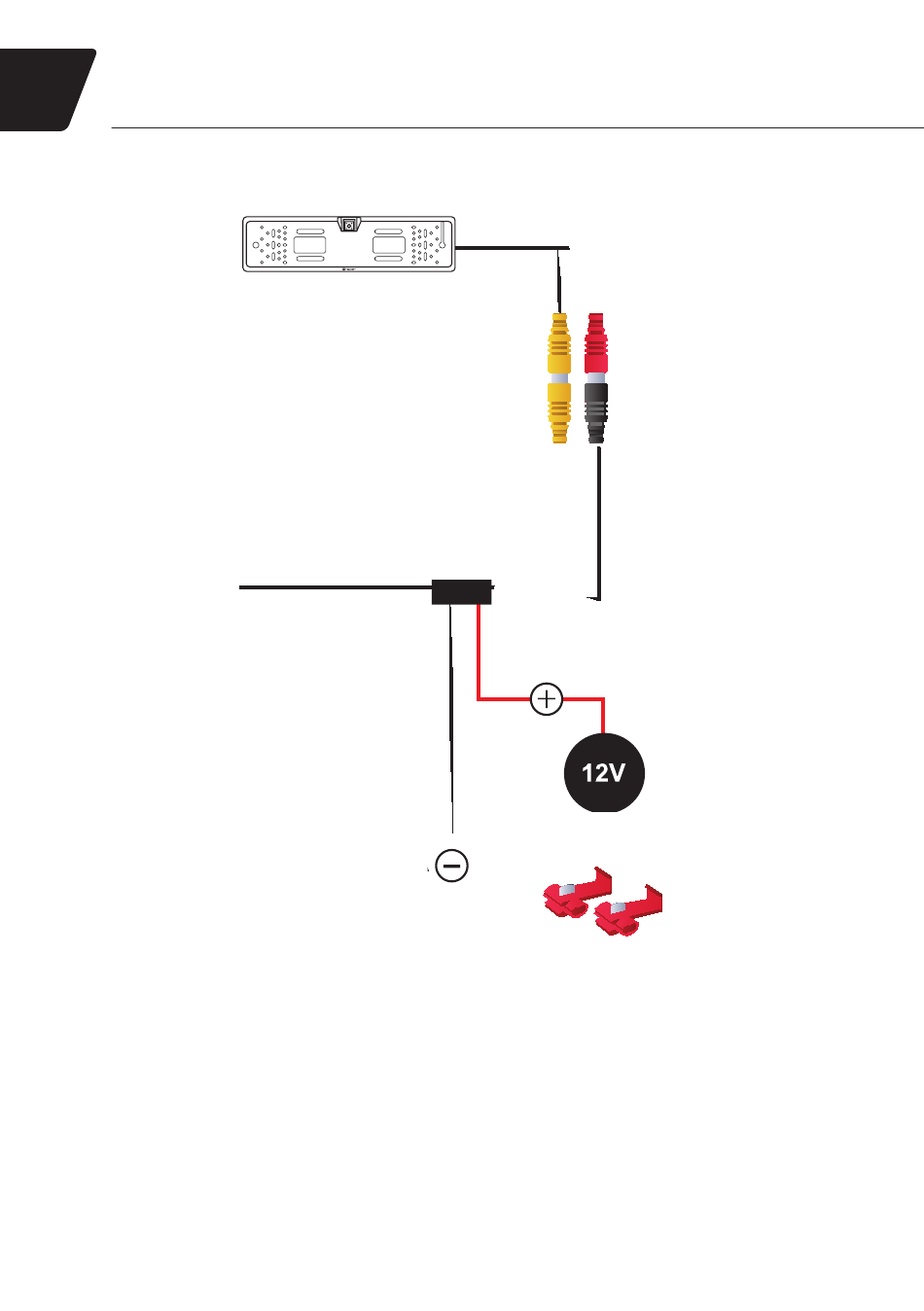

CONNECTING TO THE TAILLIGHT
1. Find the power cable connected to the taillight using the wiring diagram of the vehicle or using the 12V
electric meter (not supplied).
2. Using the supplied QUICK CONNECTOR/CONNECTOR, fasten the taillight power cable to the red
wire in the 6M CABLE (it will power the camera and the LCD screen).
3. The black wire from the 6M CABLE should be connected to the car ground.
4. Connect the red end of the FRAME WIRE to the black end of the 6M CABLE.
5. Connect the yellow end of the FRAME WIRE to the yellow end of the 6M CABLE.
8
CABLE 6 M
GROUND
Instructions for use
FRAME CABLE
TAILLIGHT
