4-8

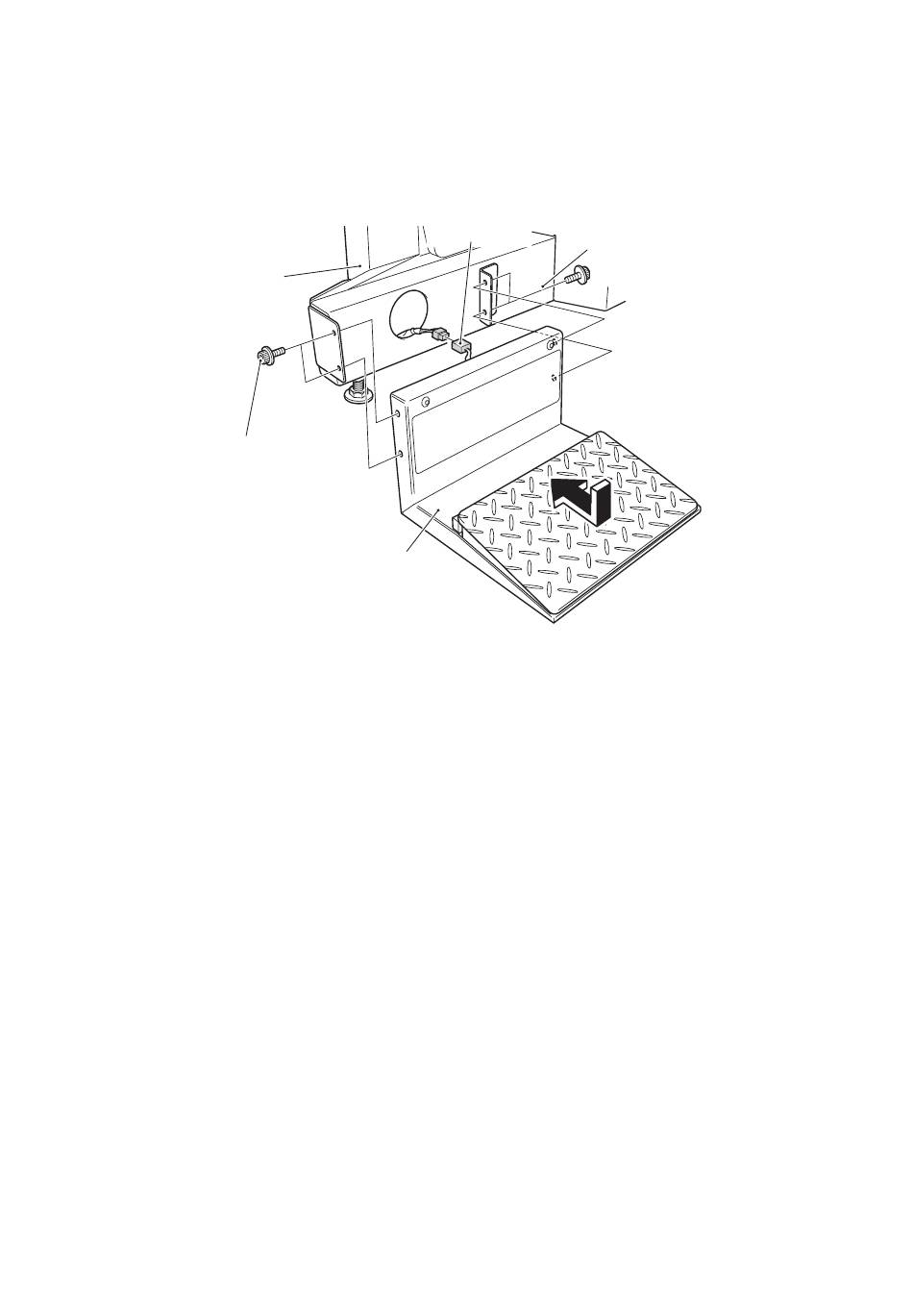

Fitting the Pedal Assy

1. Connect the Connector and fit, finger tight only, the Pedal Assy with 4off flange socket
screws (M6x12).
Control Assy
Flange socket screw (M6 x 12)
2. Push the Pedal Assy flat to the floor, and tighten fully the eight (4ea Assy) flange
socket screws.
( Ensure that there is no space between the Pedal Assy and the floor.)
3. To remove, follow the installation sequence in reverse.
Connector
Pedal Assy
Flange socket screw (M6 x 12)
45
