Extremis CAPTAIN’S CHAIR Handbuch Seite 5

ASSEMBLY HIGH WOODY'S CHAIR
WHAT YOU NEED
1 person
nr. 4 - 7 hex key
+/- 15 min.
A

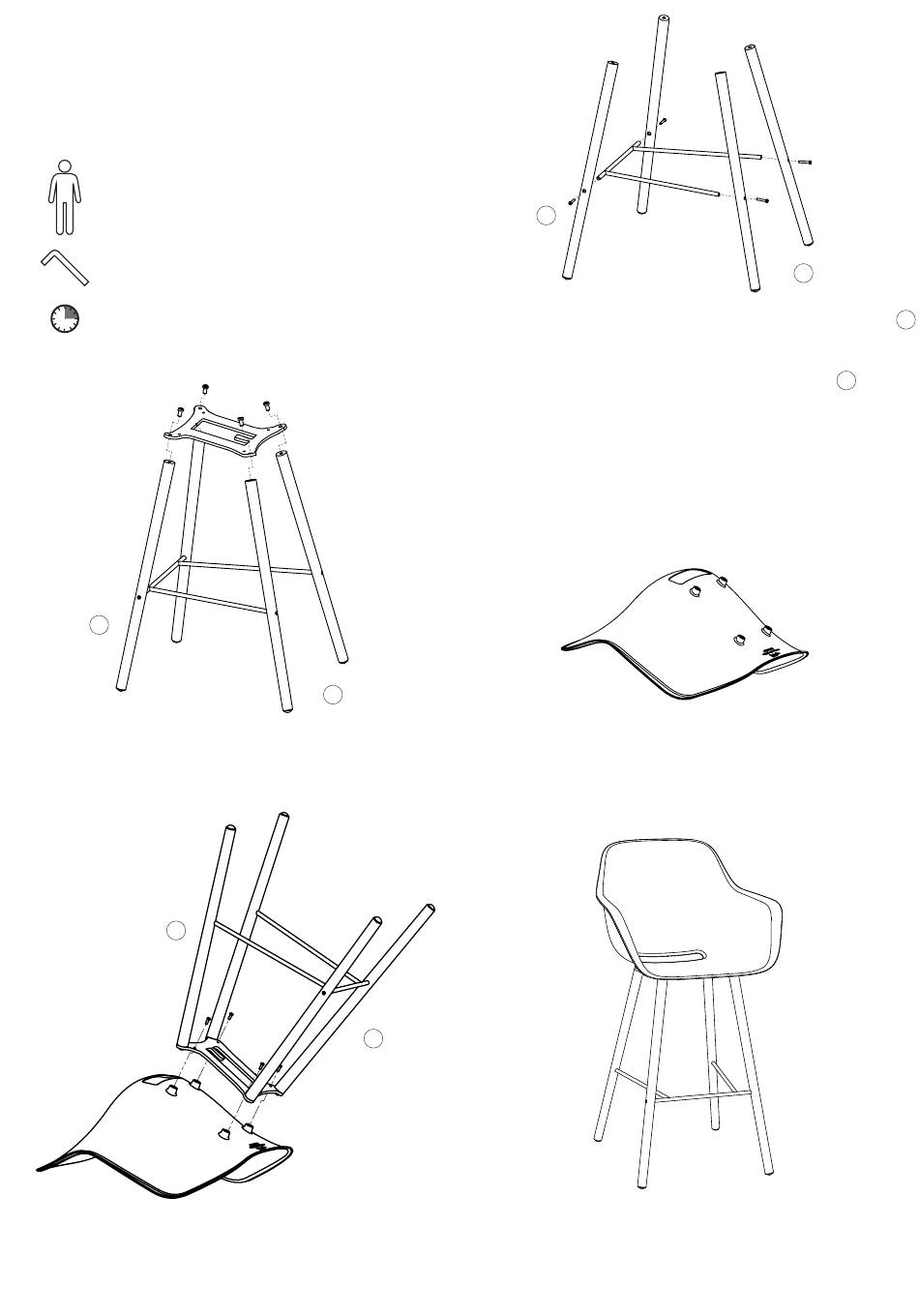

2. Take the frame assembled in step 1 and attach it to the
mounting plate using 4 socket button head screws
CAUTION
M8x25 ( : make sure that the orange
stickers match). Now fully tighten all the bolts.
B
4. Position the frame on the shell as shown in the figure
above and fasten it by means of 4 hexagon socket bolts
M6 x 16.
1. Take the 2 longest legs marked with the orange sticker
and attach them to the front of the mounting plate
using 2 socket bolts M6 x 35, as shown in the figure
above. Subsequently, attach the 2 shortest legs
the other side of the mounting plate. Do not fully
tighten the bolts yet.
B
3. Put the shell upside down on a soft surface with the
opening facing backwards so that you do not damage
the shell.
A
A
B
A
B
to
english 5
