CZ-01RT11P
READ THIS MANUAL
BEFORE STARTING UP THE UNIT. DO
NOT THROW IT AWAY. KEEP IT IN YOUR
FILES FOR FUTURE REFERENCE.
IMPROPER INSTALLATION OR ATTACH-
MENT OF EQUIPMENT OR ACCESSO-
RIES COULD RESULT IN ELECTRIC
SHOCK, SHORT-CIRCUIT, LEAKS, FIRE
OR OTHER DAMAGE TO THE EQUIP-
MENT. BE SURE ONLY TO USE ACCES-
SORIES MADE BY PANASONIC WHICH
ARE SPECIFICALLY DESIGNED FOR THE
USE WITH THE EQUIPMENT AND HAVE
THEM INSTALLED BY A PROFESSIONAL.
IF UNSURE OF INSTALLATION PROCE-
DURES OR USE, ALWAYS CONTACT
YOUR PANASONIC DEALER FOR ADVICE
AND INFORMATION.

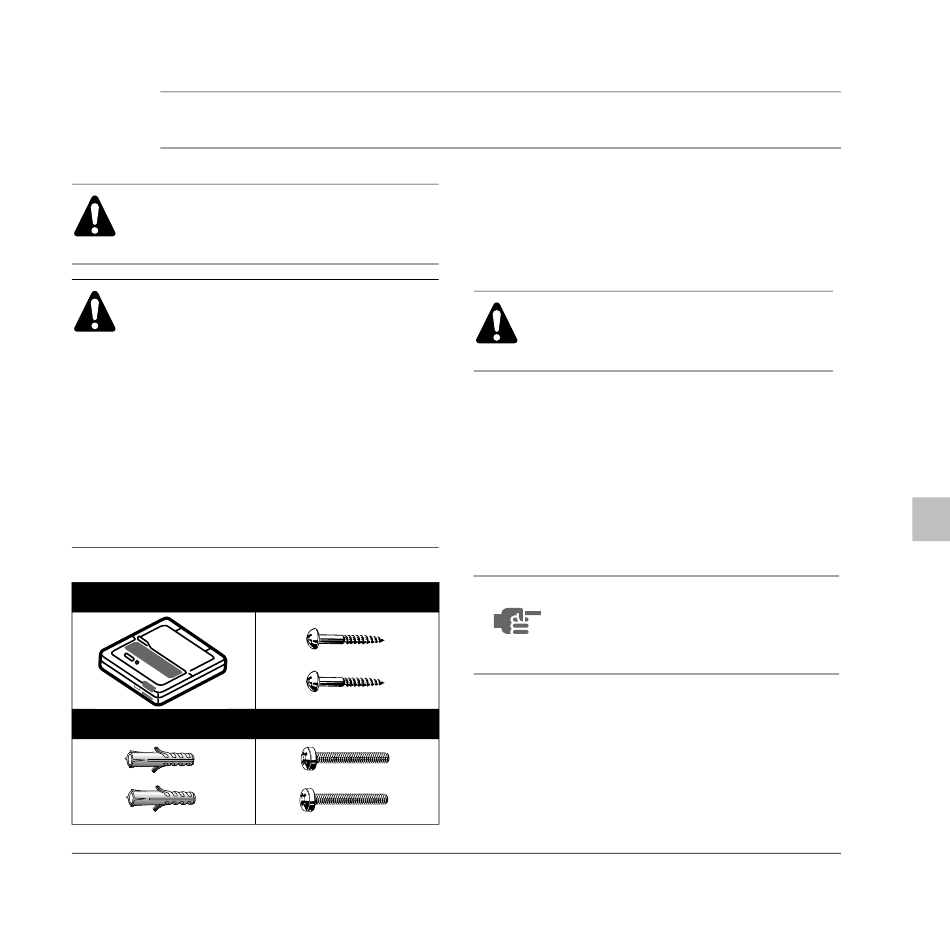

The kit includes the following parts:
Remote controller
Wall plugs
CZ-01RT11P
Remote controller
4PW12543-1
Remote controller
ATTENTIVELY
Wood screws
Machine screws
1. Remove the upper part of remote
controller
(Refer to figure 1)
Insert a minus screwdriver into the slots (1) in the
lower part of the remote controller (2 places), and
remove the upper part of the remote controller.
The PC board is mounted in the upper part
of the remote controller. Be careful not to
damage the board with the minus screw-
driver.
2. Fasten the remote controller
to figure 2)
1 for exposed mounting, fasten with the two
included wood screws (ø4 x 30) and plugs.
2 for flush-mounting, fasten with the two
included machine screws (M4 x 16).
For the field supplied switch box, use optional accessory
KJB111A or KJB211A.
NOTE Choose the flattest place possible for the
mounting surface. Be careful not to dis-
tort the shape of the lower part of the
remote controller by overtightening the
mounting screws.
