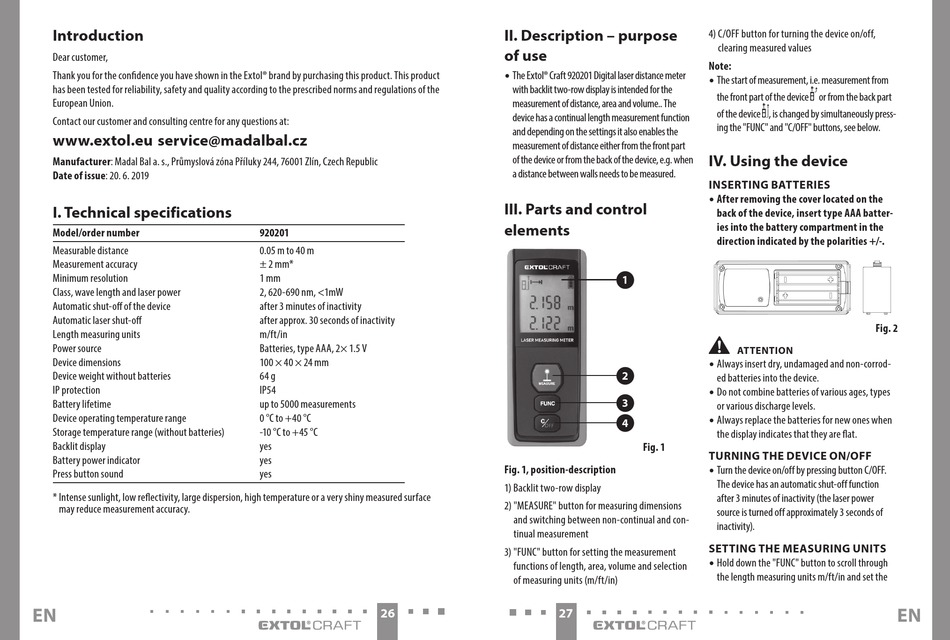

Introduction
EN
Dear customer,
Thank you for the confidence you have shown in the Extol® brand by purchasing this product. This product
has been tested for reliability, safety and quality according to the prescribed norms and regulations of the
European Union.
Contact our customer and consulting centre for any questions at:
www.extol.eu service@madalbal.cz
Manufacturer: Madal Bal a. s., Průmyslová zóna Příluky 244, 76001 Zlín, Czech Republic
Date of issue: 20. 6. 2019
I. Technical specifications
Model/order number
Measurable distance
Measurement accuracy
Minimum resolution
Class, wave length and laser power
Automatic shut-off of the device
Automatic laser shut-off
Length measuring units
Power source
Device dimensions
Device weight without batteries
IP protection
Battery lifetime
Device operating temperature range
Storage temperature range (without batteries)
Backlit display
Battery power indicator
Press button sound
* Intense sunlight, low reflectivity, large dispersion, high temperature or a very shiny measured surface
may reduce measurement accuracy.
EN
920201
0.05 m to 40 m
± 2 mm*
1 mm
2, 620-690 nm, <1mW
after 3 minutes of inactivity
after approx. 30 seconds of inactivity
m/ft/in
Batteries, type AAA, 2× 1.5 V
100 × 40 × 24 mm
64 g
IP54
up to 5000 measurements
0 °C to +40 °C
-10 °C to +45 °C
yes
yes
yes
26
II. Description – purpose
of use
• The Extol® Craft 920201 Digital laser distance meter
with backlit two-row display is intended for the
measurement of distance, area and volume.. The
device has a continual length measurement function
and depending on the settings it also enables the
measurement of distance either from the front part
of the device or from the back of the device, e.g. when
a distance between walls needs to be measured.
III. Parts and control
elements
1
2
3
4
Fig. 1
Fig. 1, position-description
1) Backlit two-row display
2) "MEASURE" button for measuring dimensions
and switching between non-continual and con-
tinual measurement
3) "FUNC" button for setting the measurement
functions of length, area, volume and selection
of measuring units (m/ft/in)
27
4) C/OFF button for turning the device on/off,
clearing measured values
Note:
• The start of measurement, i.e. measurement from
the front part of the device or from the back part
of the device , is changed by simultaneously press-
ing the "FUNC" and "C/OFF" buttons, see below.
IV. Using the device
INSERTING BATTERIES
• After removing the cover located on the
back of the device, insert type AAA batter-
ies into the battery compartment in the
direction indicated by the polarities +/-.
Fig. 2
•
ATTENTION
• Always insert dry, undamaged and non-corrod-
ed batteries into the device.
• Do not combine batteries of various ages, types
or various discharge levels.
• Always replace the batteries for new ones when
the display indicates that they are flat.
TURNING THE DEVICE ON/OFF
• Turn the device on/off by pressing button C/OFF.
The device has an automatic shut-off function
after 3 minutes of inactivity (the laser power
source is turned off approximately 3 seconds of
inactivity).
SETTING THE MEASURING UNITS
• Hold down the "FUNC" button to scroll through
the length measuring units m/ft/in and set the
EN
