8

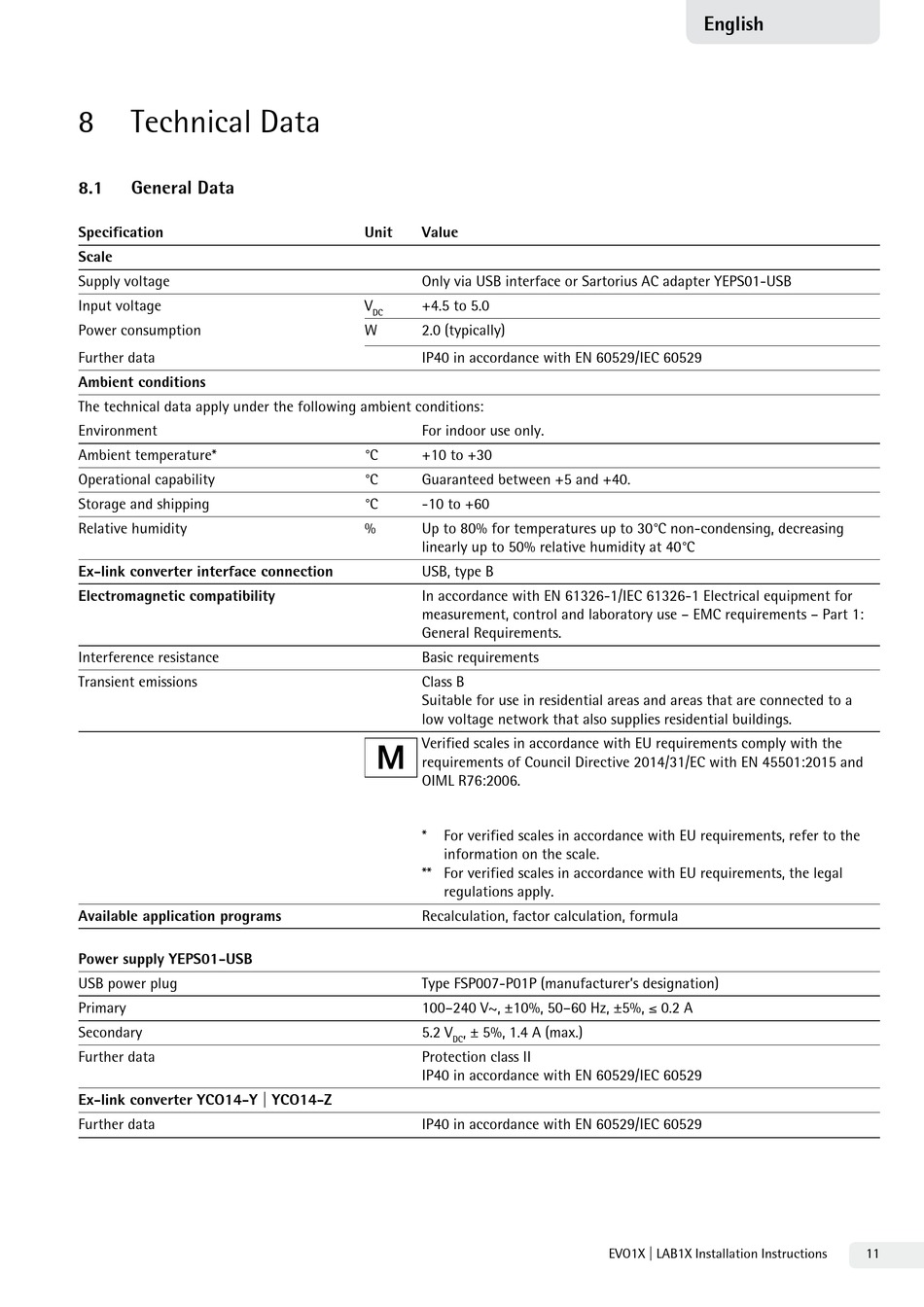

Technical Data

8.1

General Data

Specification
Scale
Supply voltage
Input voltage
Power consumption
Further data
Ambient conditions
The technical data apply under the following ambient conditions:
Environment
Ambient temperature*
Operational capability
Storage and shipping
Relative humidity
Ex-link converter interface connection
Electromagnetic compatibility
Interference resistance
Transient emissions
Available application programs
Power supply YEPS01-USB
USB power plug
Primary
Secondary
Further data
Ex-link converter YCO14-Y | YCO14-Z
Further data
Unit Value
Only via USB interface or Sartorius AC adapter YEPS01-USB
V +4.5 to 5.0
DC
W 2.0 (typically)
IP40 in accordance with EN 60529/IEC 60529
For indoor use only.
°C +10 to +30
°C Guaranteed between +5 and +40.
°C -10 to +60
% Up to 80% for temperatures up to 30°C non-condensing, decreasing
linearly up to 50% relative humidity at 40°C
USB, type B
In accordance with EN 61326-1/IEC 61326-1 Electrical equipment for
measurement, control and laboratory use – EMC requirements – Part 1:
General Requirements.
Basic requirements
Class B
Suitable for use in residential areas and areas that are connected to a
low voltage network that also supplies residential buildings.
Verified scales in accordance with EU requirements comply with the
requirements of Council Directive 2014/31/EC with EN 45501:2015 and
OIML R76:2006.
* For verified scales in accordance with EU requirements, refer to the
information on the scale.
** For verified scales in accordance with EU requirements, the legal
regulations apply.
Recalculation, factor calculation, formula
Type FSP007-P01P (manufacturer's designation)
100–240 V~, ±10%, 50–60 Hz, ±5%, < 0.2 A
5.2 V , ± 5%, 1.4 A (max.)
DC
Protection class II
IP40 in accordance with EN 60529/IEC 60529
IP40 in accordance with EN 60529/IEC 60529
English
EVO1X | LAB1X Installation Instructions 11
