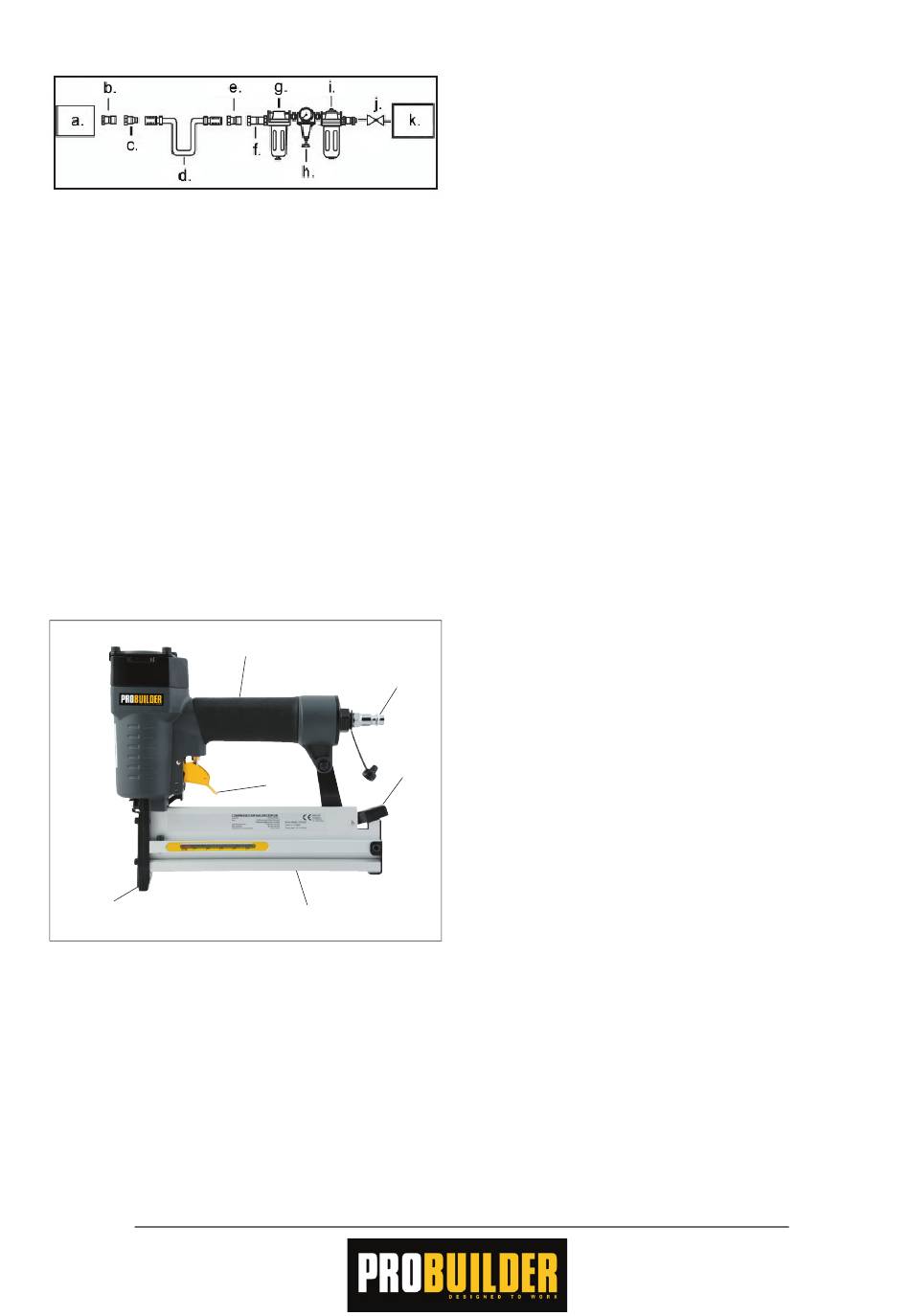

Connection
a. Compressed air tool
b. Connector
c. Snap coupling
d. Compressed air hose
e. Connector
f. Snap coupling
g. Lubrication unit
h. Regulator
i. Filter
j. Non-return valve
k. Compressor

Main components

6 6
1. Handle
2. Compressed air nozzle
3. Trigger
4. Magazine release
5. Magazine
6. Safety release
28
1 1
2 2
4 4
3 3
5 5
Use
Loading brad nails or staples
Be sure that the nail gun is not connected to
the compressed air supply.
Press the magazine release (4) and open the
magazine (5).
Load the required staples or brad nails
into the magazine. The points must point
downwards and the brad nails or staples
should be pushed forward by the feeder.
Close the magazine. Check that it clicks into
place and cannot be pushed to one side
without pressing the release.
Adjusting the discharge depth
Connect the nail gun to the air supply, and
be sure that the air pressure supply is correct.
Use the air supply regulator (h) to adjust the
depth to which the brad nails or staples are
to be driven into the workpiece.
Check the discharge depth is correct on a
piece of scrap wood before using the nail
gun on the item.
Discharging brad nails or staples
Load the required brad nails or staples and
set the discharge depth as described above.
Grip the handle (1), place the nail gun against
the item so that the safety release (6) is
depressed and press the trigger (3) to � re a
staple. Release the trigger.
Do not press the nail gun too hard.
Disconnect the nail gun from the air hose
after use.
