4. CONNECTION & COMMISSIONING
There are three trigger connections to the power supply. (red, black, green) The
cables have the following different functions:
Red cable
Connect this cable to a standard +24 V source.
Black cable
Connect this cable to the chassis of the vehicle.
Green cable
Connect this cable to the positive port of the backlight or with one positive output
of the reverse gear. When the vehicle is put into reverse gear, the Monitor and
camera will be switched on.

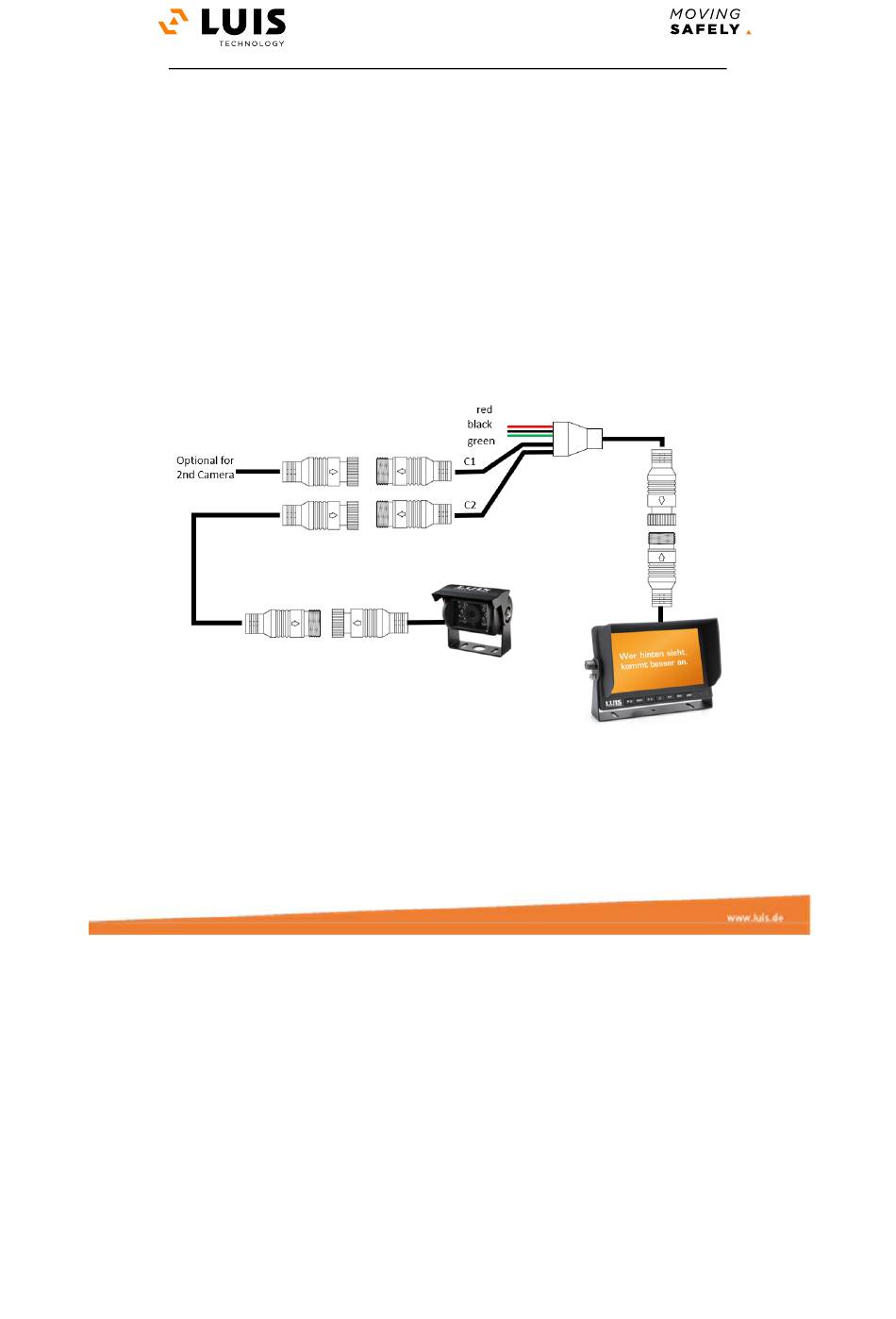

4.1. IMAGE OF THE CONNECTIONS
