Operation - Luis 7“-System Basic Betriebsanleitung

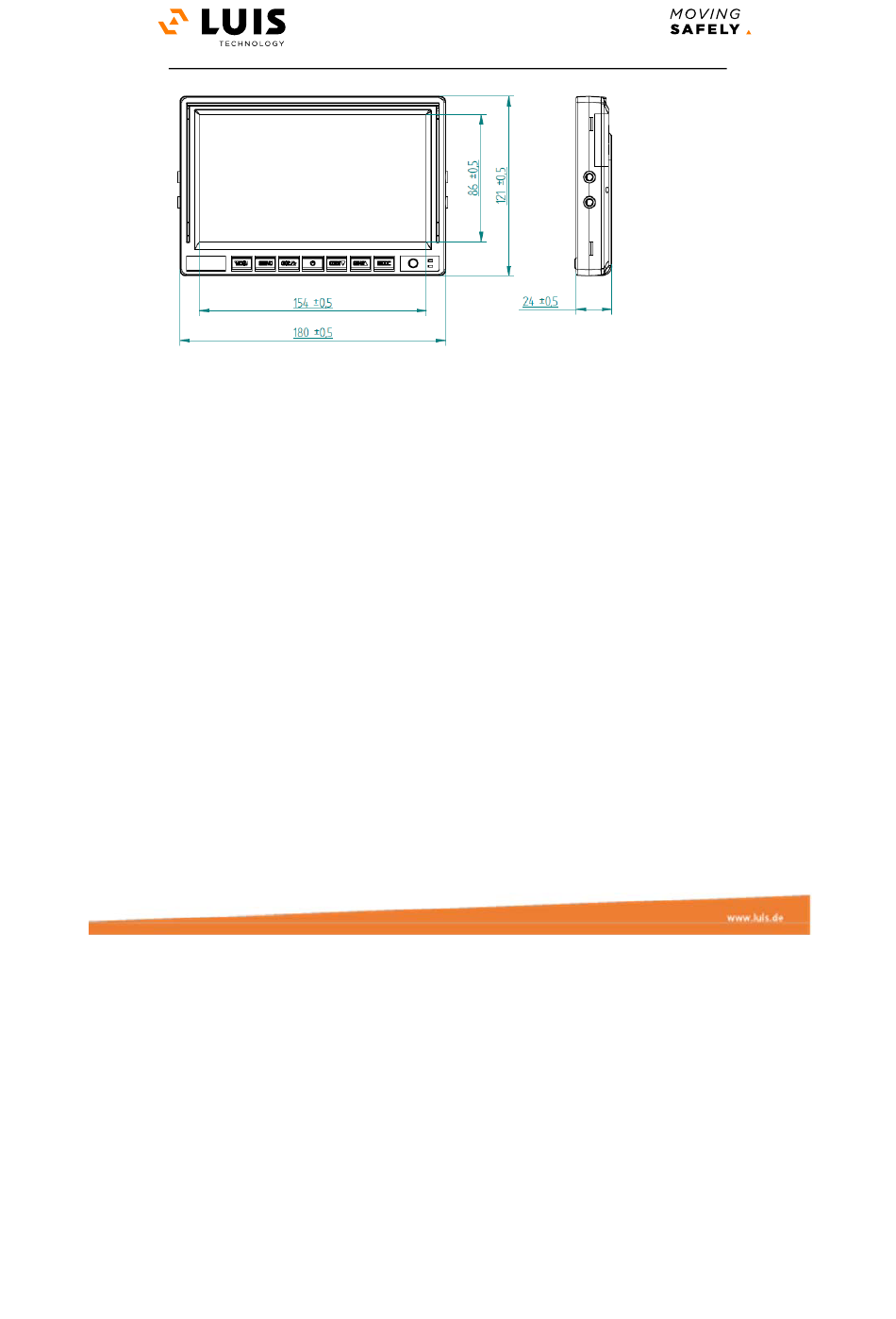

4.1.3. MEASURES
representation not true to scale

4.1.4. OPERATION

To access the different menu, please press MENU button.
Press ▲☼ / ▼☼ to adjust each of the menu items.
1 Button Down (▼☼):
Press this button to lower the volume.
2. MENU Button:
Press this button to enter the menu and switch between the menu points.
3. Button Up (▲☼):
Press this button to increase the volume.
4. POWER Button:
Press this button to switch the monitor ON /OFF.
5. CH1:
Press this button to choose channel 1.
6. CH2:
Press this button to choose channel 2.
7. MODE:
Press this button to choose between the picture settings STANDARD, SOFT,
VIVID and LIGHT.
25
Notice:
Indicated in
mm and
