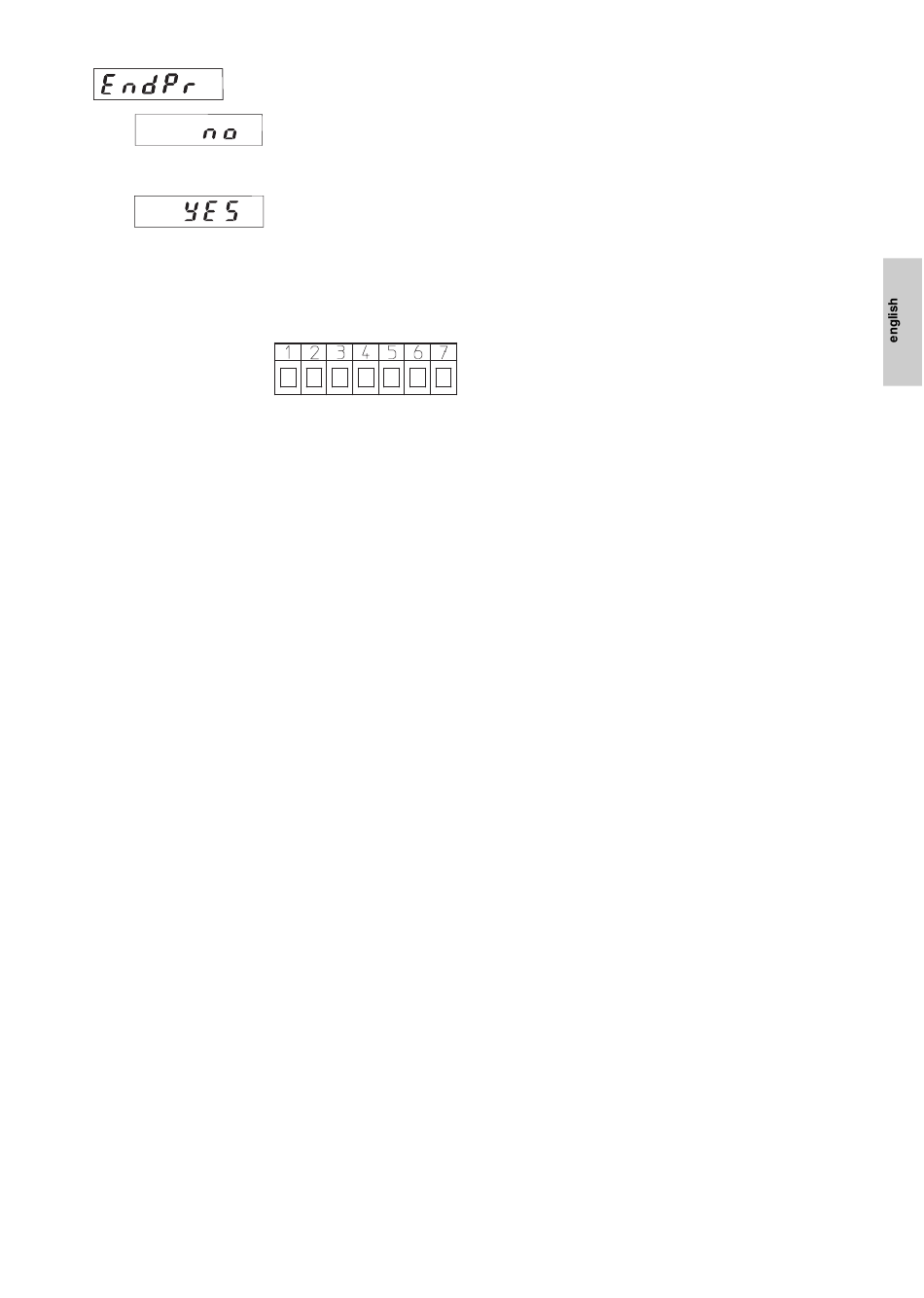

4.12 End of programming
5. Connection
1 10 – 30 V DC
2 GND
3 GND
4 MPI
5 0 (4) – 20 mA
6 Analog GND
7 0 (2) – 10 V DC

6. Technical data

Display:
5 digits - 7-segment LED's, height 8 mm
Measuring ranges:
0..10 V DC
2..10 V DC
0..20 mA
4..20 mA
Resolution: 14 bits
Accuracy: 0.1 % ± 1 digit at an ambient
temperature of 20 °C
Zero adjustment:
automatic
Temperature drift:
<70ppm/K
Measuring speed: 1 s -1
Current measuring:
Voltage drop:
max. 2,0 V at 20 mA
Current limitation: 50 mA
Voltage measurement:
Input resistance:
>1 MΩ
Mains hum suppression:
Digital filtering 50 Hz or 60 Hz, programmable
Supply voltage:
10..30 V DC
galvanically isolated
The programming routine
is performed once again.
The values input can be
checked and modified.
The programming routine
is finished and the values
entered are taken as the
new parameter values.
The device is then ready to
operate.
Maximum consumption:
50 mA
Ambient temperature: -10°C .. +50°C
Storage temperature: -25°C .. +70°C
Data recording:
via EEPROM (capacity : 1x10 6 recording cycles
or 10 years)
Weight: appr. 50g
Protection: IP 65 (on the front)
EMC:
EN 61 000-4-2 ; EN 55011 class B ;
EN 61 000-6-2
Error messages:
Err 0*
Error/defect in A/D-part
Err 3*
Error/defect EEPROM
Err 4**
Analogue input overflow
Err 5*
Error/defect EEPROM. Device
not calibrated
* Please send the device back for checking
** Please check input signal and programming
Cleaning:
The front side of the device is to be cleaned only with a
wet cloth.

7. Delivery specification

• Digital display
• Panel mounting clip
• Bezel for screw mount, panel cut-out 50 x 25 mm
• Bezel for clip mount, panel cut-out 50 x 25 mm
• Sealing
• 1 sheet with self-adhesive symbols
