A display value between -19999 and 99999 can be allo-
cated to the highest input value. With the left key select
the decade, then use the right key to determine the val-
ue. The decimal point adjustment is taken into consider-
ation.
4.7 Decimal point setting (adding counter)
The adding counter adds the values measured with a
reading frequency of 1 second.
As for the momentary values, the number of decimals
to be used to display the added value can be defined.
The number of decimals does not affect the accuracy of
the display. However, the maximum expected added
value to be displayed must be taken into account. If, as
in Example 9.1, the planned sum is 1000, one decimal
can be selected at the maximum.
Attention: in all cases, sufficient digits must be re-
served to allow displaying the expected added value, in
order to avoid the device acting like a tachometer and
going from "99999" to "0", loosing the result of the
measurement. If the 5-digit display proves to be insuffi-
cient, the display range can be extended using the
"Factor" (4.8) and the "Scale" (4.9).
4.8 Factor
For an optimum matching of the measuring signal, the
displayed values can be weighted by a factor. If, for ex-
ample, the momentary value is to be displayed in a
small unit like grams, but the added total must be dis-
played in kilograms or tons, define the corresponding
factor (multiplier):
Note: the factor and the scale only affect the adding
counter. Total scale = Factor x Scale!
4.9 Scale
The scale allows extending the display range of the
adding counter (or reducing it for a very fine adjust-
ment).
8

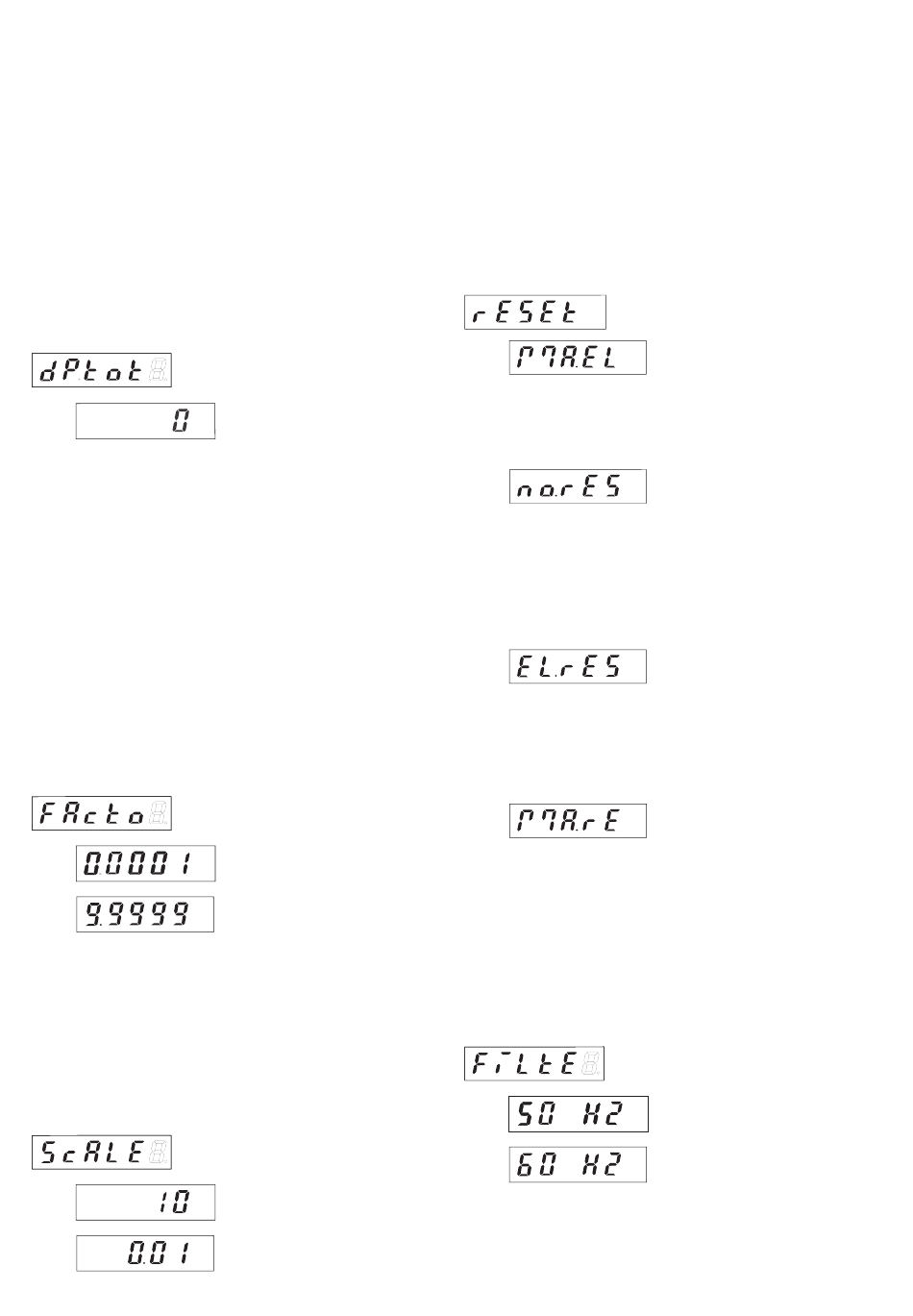

Factory setting
Select the decade with
the left key, then use the
the right key to define a
factor between 0.0001
and 9.9999.
Select the required scale
using the right key: 10, 1,
0.1 or 0.01
In Example 8.2 on page10, the tank has a capacity ex-
ceeding 100000 l. Using a scale of 0.01 allows display-
ing the sum in hectoliters. Since the scale (multiplier)
only affects the sum, the momentary throughput re-
mains displayed in liters/second.
Note: the factor and the scale only affect the adding
counter. Total scale = Factor x Scale!
4.10 Resetting mode
The device offers four resetting possibilities for the add-
ing counter. This setting determines the function of the
MPI input.
4.11 Filter
Using the right key, select the hum suppression filter
corresponding to the mains supply frequency:
50 or 60 Hz.
Manual (using the red
key) and electrical reset-
ting. The MPI input oper-
ates as a RESET input.
When activated, it resets
the adding counter to 0.
No resetting possible. The
MPI input operates as a
LATCH input. The mo-
mentary value displayed
is frozen.
Only electrical resetting.
The Reset pushbutton is
idle. The MPI input oper-
ates as a RESET input.
When activated, it resets
the adding counter to 0.
Only manual reset. The
MPI input operates as a
LATCH input. The mo-
mentary value displayed
is frozen.
