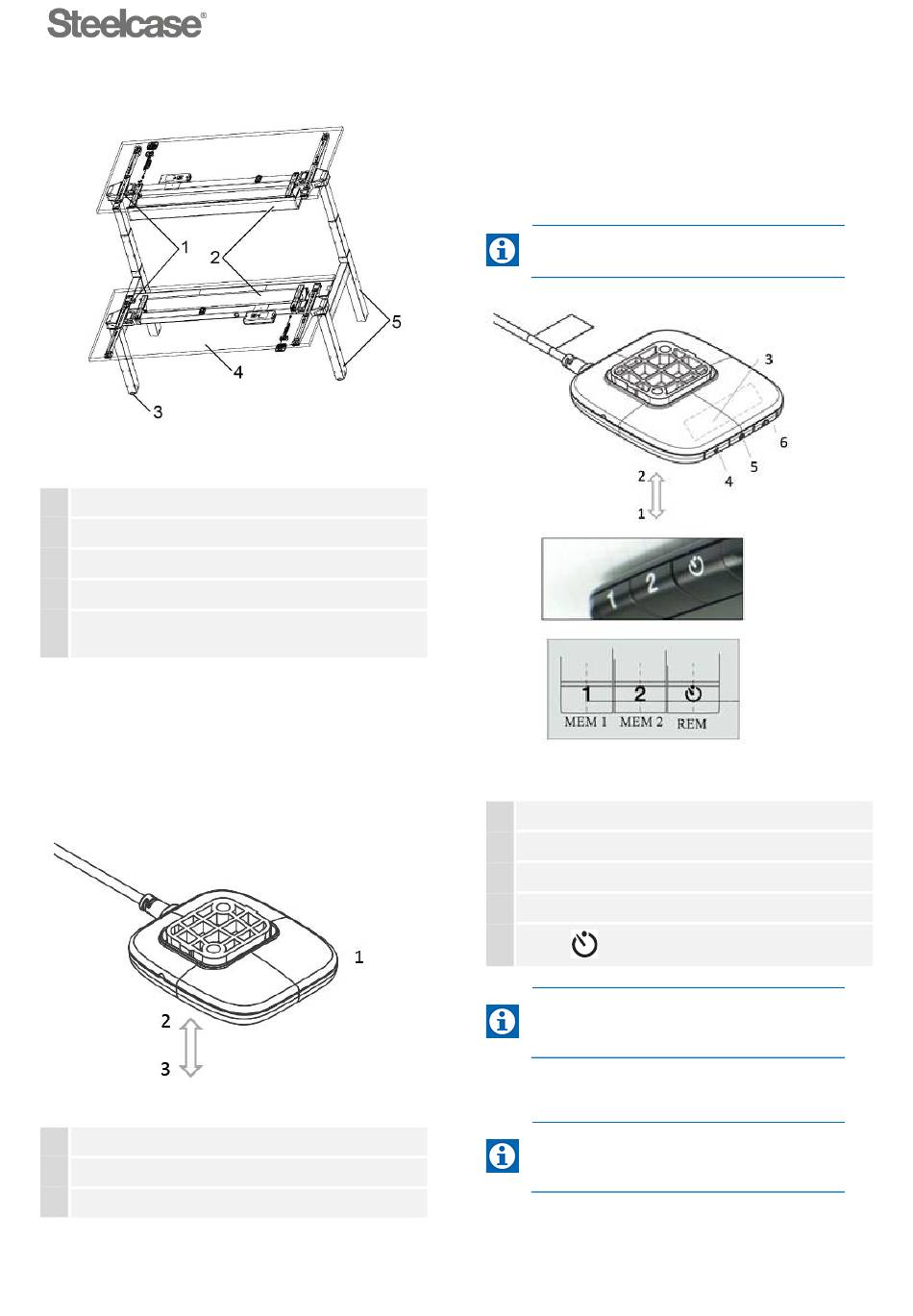

Figure 3-8: Ology Bench, Lift 1 and Lift 2 variant
1 Cantilever
2 Cable duct
3 Adjusting screw for height compensation
4 Desktop
Double telescopic column (electrical height
5
adjustment)
Simple Touch
operating panel
The operating panel with the functions "up" and
"down" is located usually on the right underside of
the desktop.
Figure 3-9: Simple Touch operating panel
1 Simple Touch operating panel
2 Direction "up"
3 Direction "down"
120917
Active Touch operating panel
The Active Touch operating panel allows the storing
of two positions.
5 Operating and adjusting
to set the memory positions.
Figure 3-10: Operating panel Active Touch variant
1 Toggle switch "down"
2 Toggle switch "up"
3 Button "1" (memory position 1)
4 Button "2" (memory position 2)
5
Button = "REMINDER" interval
The control panel cable is connected to
the controller. The controller is located
under the desk.
Electrical height adjustment unit
Operation of the electrical height
adjustment is described under
Operating and adjusting
The electrical height adjustment unit enables the
adjustment and fixed programming for three
Product description
describes how
