2.2.1. Power Connection

To connect the controller to the mains you have to use a PSU with 12V or 24V, depending on which
led fixture you want to use. You can connect maximum of 15A, but the PSU should be always
equipped with some headroom

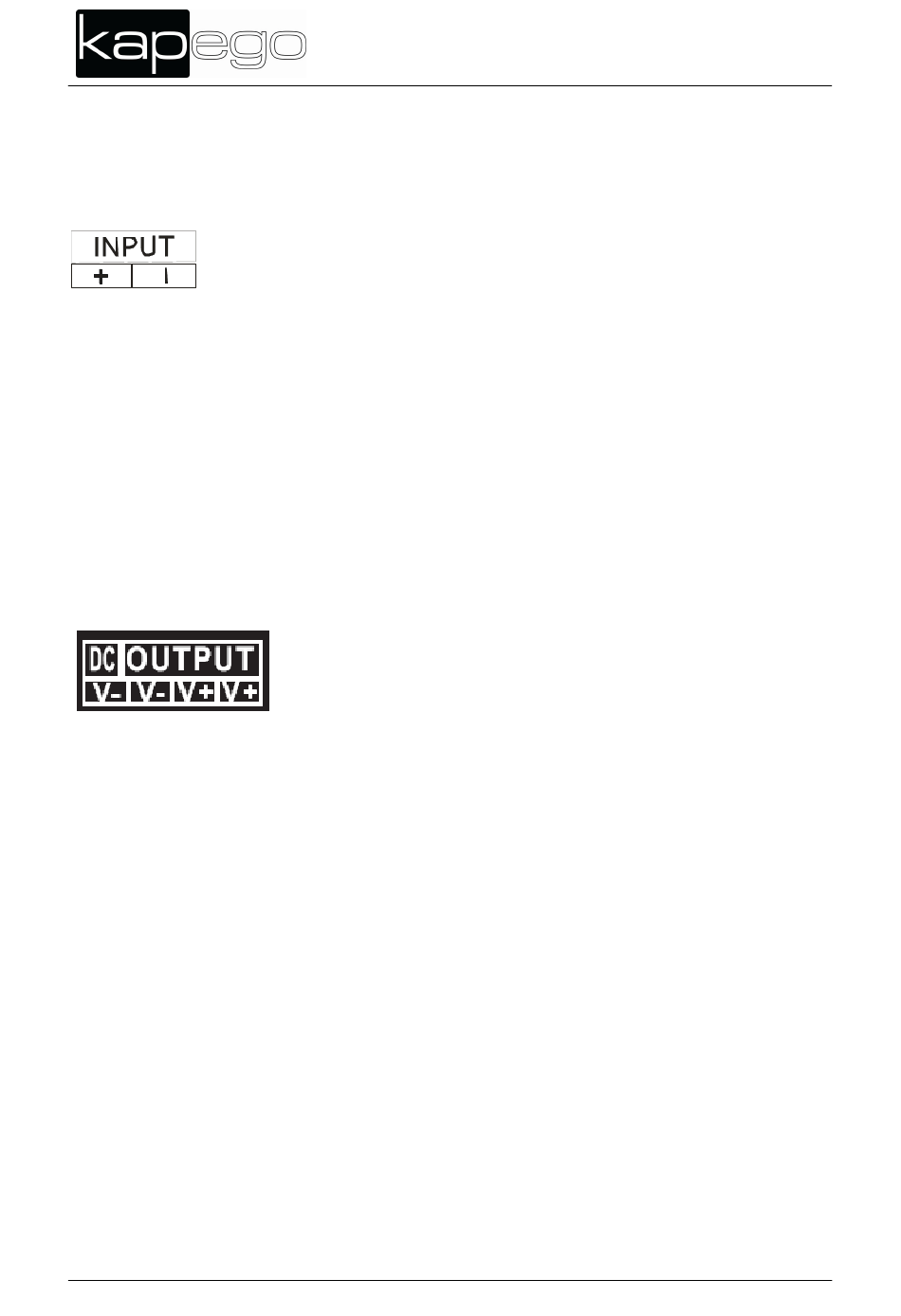

DC IN: 12V-24V
- Connect the PSU according to the description of the manufacturer
- Now connect the + Pole of the PSU with the + mains Insert of the RGB control.
- Now connect the - Pole of the PSU with the - mains Insert of the RGB control.
- Make sure to install according to the laws in your country.
- Make sure to use always the right voltage for the right fixture connected! If not their can be
damages on every connected item!!
2.2.2. Anschluss ihres Stripes/Gerätes
With this controller you can use fixtures with common anode only!
Connecting a stripe:
OUTPUT V- at the controller.
- Connect the wire of V+ of your fixture with the output marked with DC OUTPUT V+ at the
controller.
In this case you can connect up to two stripes because you will find the outputs twice.
- Connect the wire of V- of your fixture with the output marked with DC
X S P R O S I N G L E C O N T R O L
5 / 12
