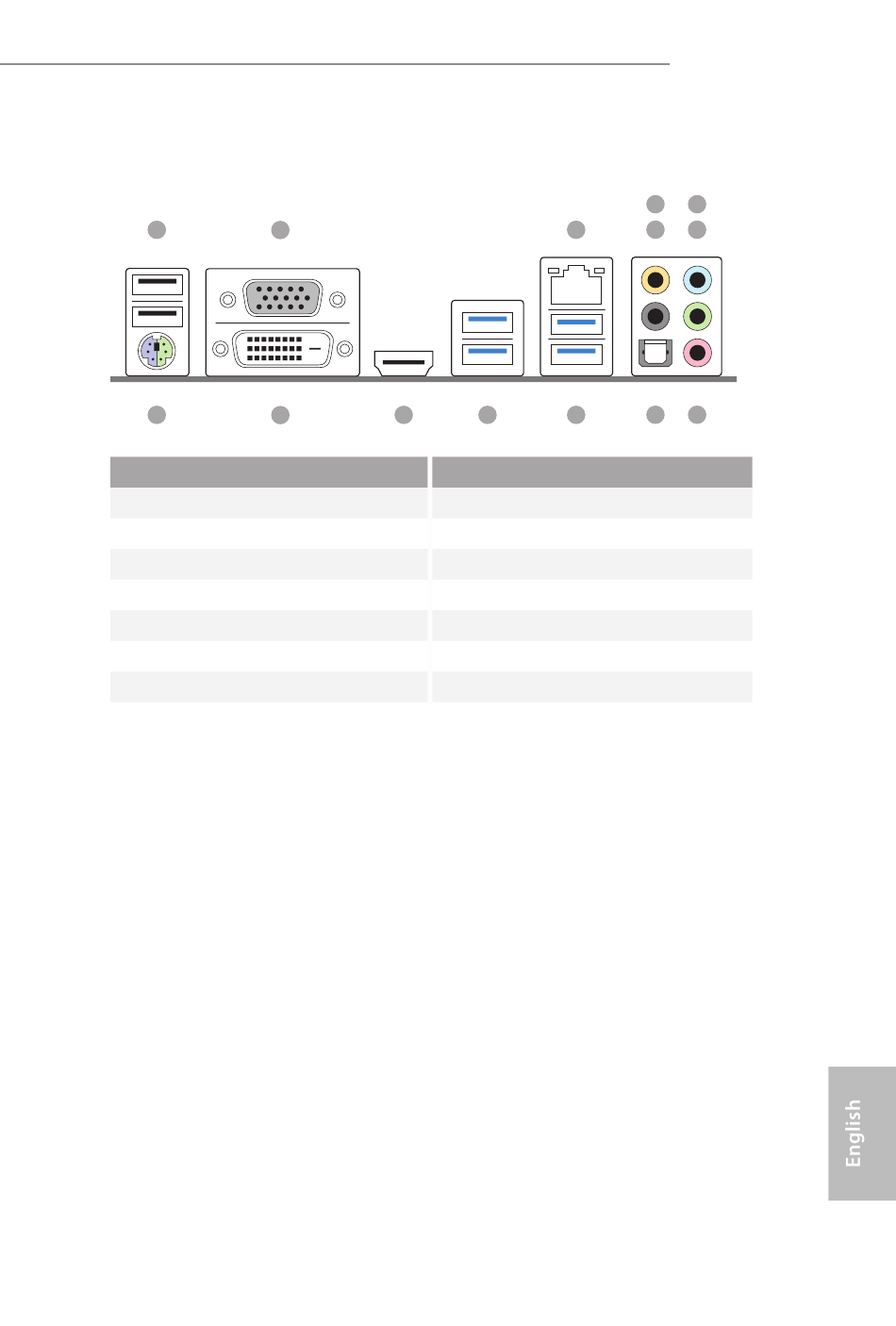

1.5 I/O Panel
1 2
14 13
No. Description
1 USB 2.0 Ports (USB_1_2)
2 D-Sub Port
3 LAN RJ-45 Port*
4 Central / Bass (Orange)
5 Rear Speaker (Black)
6 Line In (Light Blue)
7 Front Speaker (Lime)**
12 11
No. Description
8 Microphone (Pink)
9 Optical SPDIF Out Port
10 USB 3.0 Ports (USB3_3_4)
11 USB 3.0 Ports (USB3_1_2)
12 HDMI Port
13 DVI-D Port
14 PS/2 Mouse/Keyboard Port
H97M-ITX/ac
4 6
3 5 7
10 9 8
