2. SET CONTENTS.

1 Transmitter (scart).
1 Receiver (scart).
1 IR receiver.
2 Power adapters.
1 IR extender with 3 LEDs.
1 User manual.

3. INSTALLING THE TRANSMITTER.

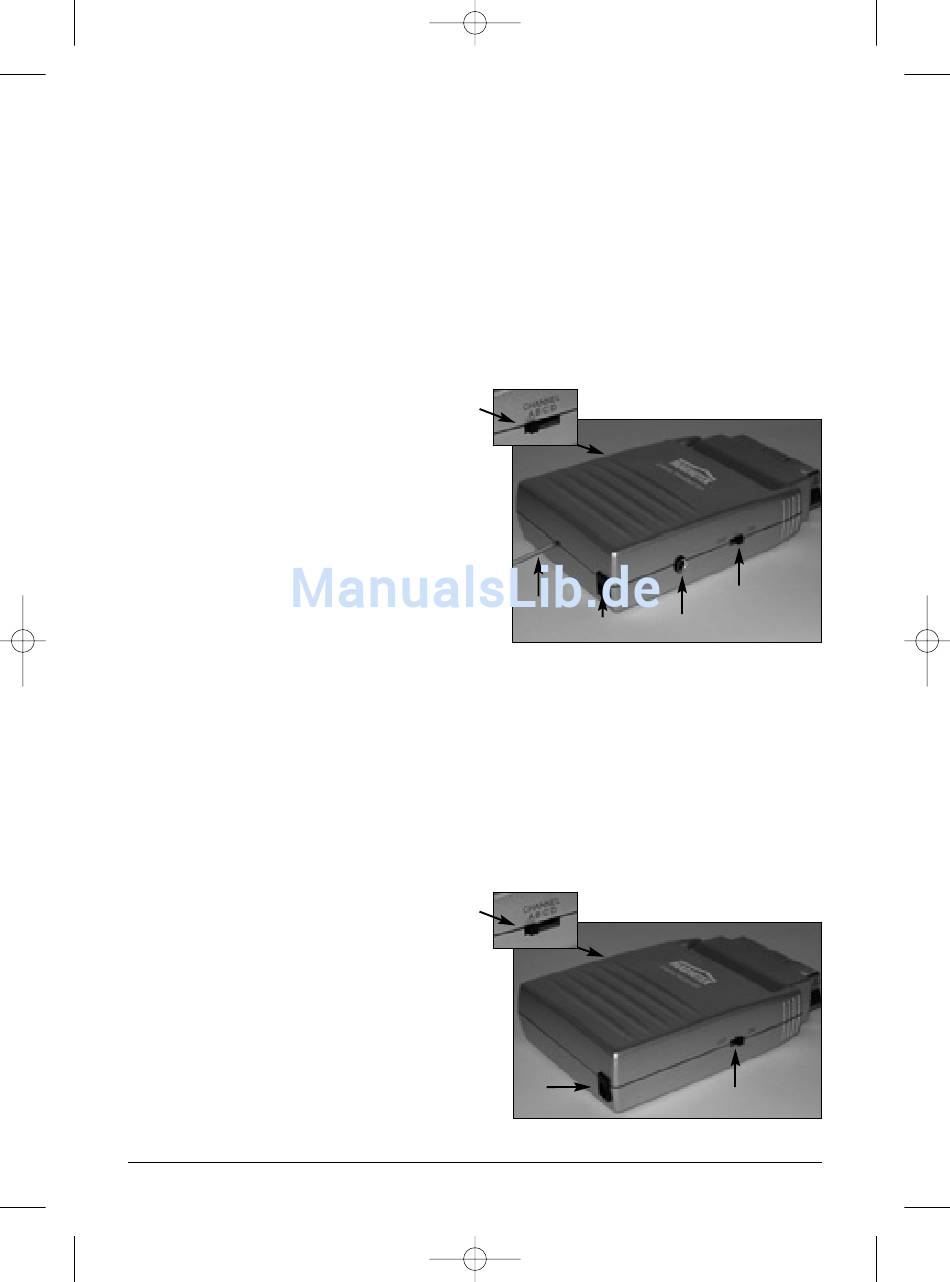

See image 1.
The transmitter can be connected to
any A/V device.
1. Plug the transmitter into the scart connection
of the A/V device from which you want the
signal to be transmitted.
2. Switch the channel selector [A] on the side
(A-B-C-D) to A.
3. Turn the ON/OFF switch [B] to 'OFF'.
4. Insert the power adapter into a wall socket
(230V-50Hz) and plug the adapter in to the
'DC IN' [E] on the back of the transmitter.
Please only use the adapter from this set!
5. Turn the ON/OFF switch [B] to 'ON'.
Make sure the antenna wire [G] is not stuck.

4. INSTALLING THE RECEIVER.

See image 2.
1. Plug the receiver into the free scart
IN of your TV (e.g. 'AV IN' or 'EXT 1')
you want to watch the signal on.
2. Switch the channel selector [A] on the
side (A-B-C-D) to A.
3. Turn the ON/OFF switch [B] to 'OFF'.
4. Insert the power adapter included into a
wall socket (230V-50Hz) and plug the power
adapter into the 'DC IN' [E] on the back of
the transmitter. Please only use the adapter
from this set!
5. Turn the ON/OFF switch [B] to 'ON'.
