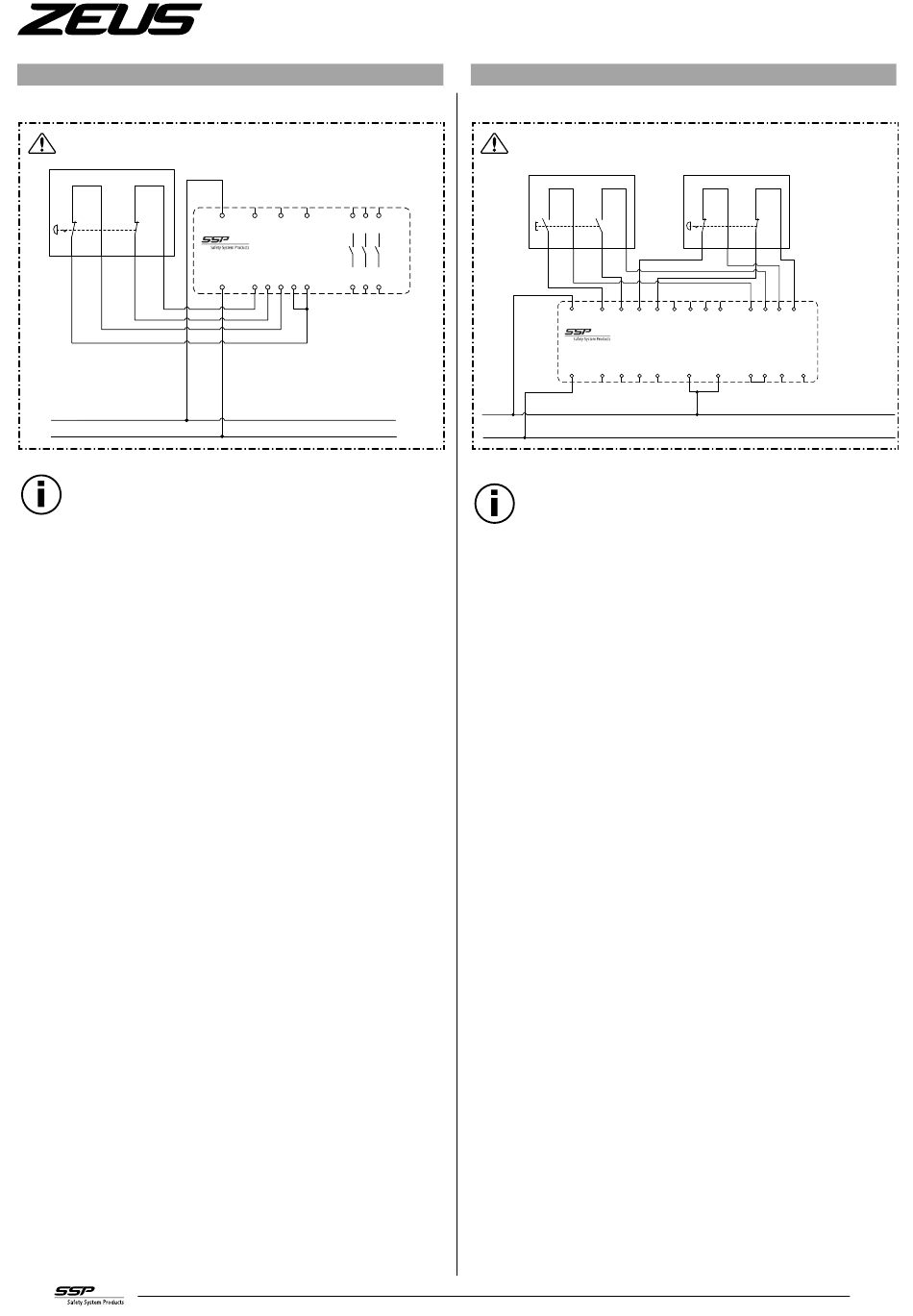

Connection example 2: ZEUS 10 with SSP safety relay S series
E-STOP pushbutton
1 2 1 2
24V DC
GND
Information
ZEUS with emergency stop provides the highest safety (Cat. 4/PLe) acc. to EN ISO
13849-1 only with an application of an appropriate safety relay, such as S-series.
6
A1 S33 S34 S35 13 23 33
Serie
S
A2 S21 S22 S12 S31 S11 14 24 34
Connection example 3: ZEUS 10 with safety PLC MOSAIC M1
Three-Position-Switch
C1 NO1 C2 NO2
1
17 18 19
24V DC IN1 IN2 IN3
MOSAIC M1
GND OSSD1A OSSD1B OSSD2A OSSD2B
1 5 6 9
24V DC
GND
Information
ZEUS with emergency stop provides the highest safety (Cat. 4/PLe) acc. to
EN ISO 13849-1 only with an application of an appropriate safety relay/PLC,
such as MOSAIC M1.
In a safety circuit, both contacts of the enabling switch have to be evaluated separately
(2-channel design). In this process, cross circuits and short circuits are identified by the
safety relay.
For the application and use that meet the requirements, a voltage supply with the attribute
SELV/PELV has to be used.
Danger of squeezing or cutting of the connection cable has to be eliminated by means of
appropriate measures:
• Protection of the cable by appropriate routing, e.g. in a protective hose.
• Cross-circuit monitoring with an evaluation device
• Use of cables with separately shielded wires. These shields have to be connected with
the protective conductor system of the machine or plant. Therewith the wiring short
circuits are detected and the control unit is immediately switched off by the activated
protection against short circuit.
The electrical connection should only be performed in a de-energized state by authorized skilled
personnel. After connection, remove debris such as cable residues from the contact element.
E-STOP pushbutton
1 2 1 2
20 21 22 23 24 21 22 23 24
IN4 IN5 IN6 IN7 IN8 OUT1 OUT2 OUT3 OUT4
M-ENABLE 1 M-ENABLE 2 FBK1 FBK2 OUT ST 1 OUT ST 2
10 2 3 7 11 8 12
