2 . Product Description

2 .1 Intended use

Users are operators, which have to work within the danger zone of the machine.
The device can only be used in industrial applications

2 .2 Function

Level 1: Off function, enabling switch not pressed
Level 2: Enabling function, enabling switch pressed in the middle position
(pressure point)
Level 3: Off function, enabling switch pressed into the end stop.
0 1 0
The enabling function is canceled by releasing of the enabling switch (Level 1) or pushing
over the pressure point (Level 3). The enabling function does not work when returning
from Level 3 to Level 1.
5 6

2 .3 Design types

This operating manual is valid for the following design types:
ZEUS 00-xxxxxx Enabling switch standard
ZEUS 10-xxxxxx Enabling switch with emergency stop switch
ZEUS 20-xxxxxx Enabling switch with stop switch
ZEUS 01-xxxxxx Enabling switch standard with individual wiring
ZEUS 11-xxxxxx Enabling switch with emergency stop switch and individual wiring
ZEUS 21-xxxxxx Enabling switch with stop switch and individual wiring
Enabling switch
7
Connector
Allgemein-
Werkstoff/material
Oberfl./surface
toleranzen
ISO 2768-
mittel
Name Bezeichnung/ titel
Date
Bearb.
01.01.2015 Frombach
Gepr.

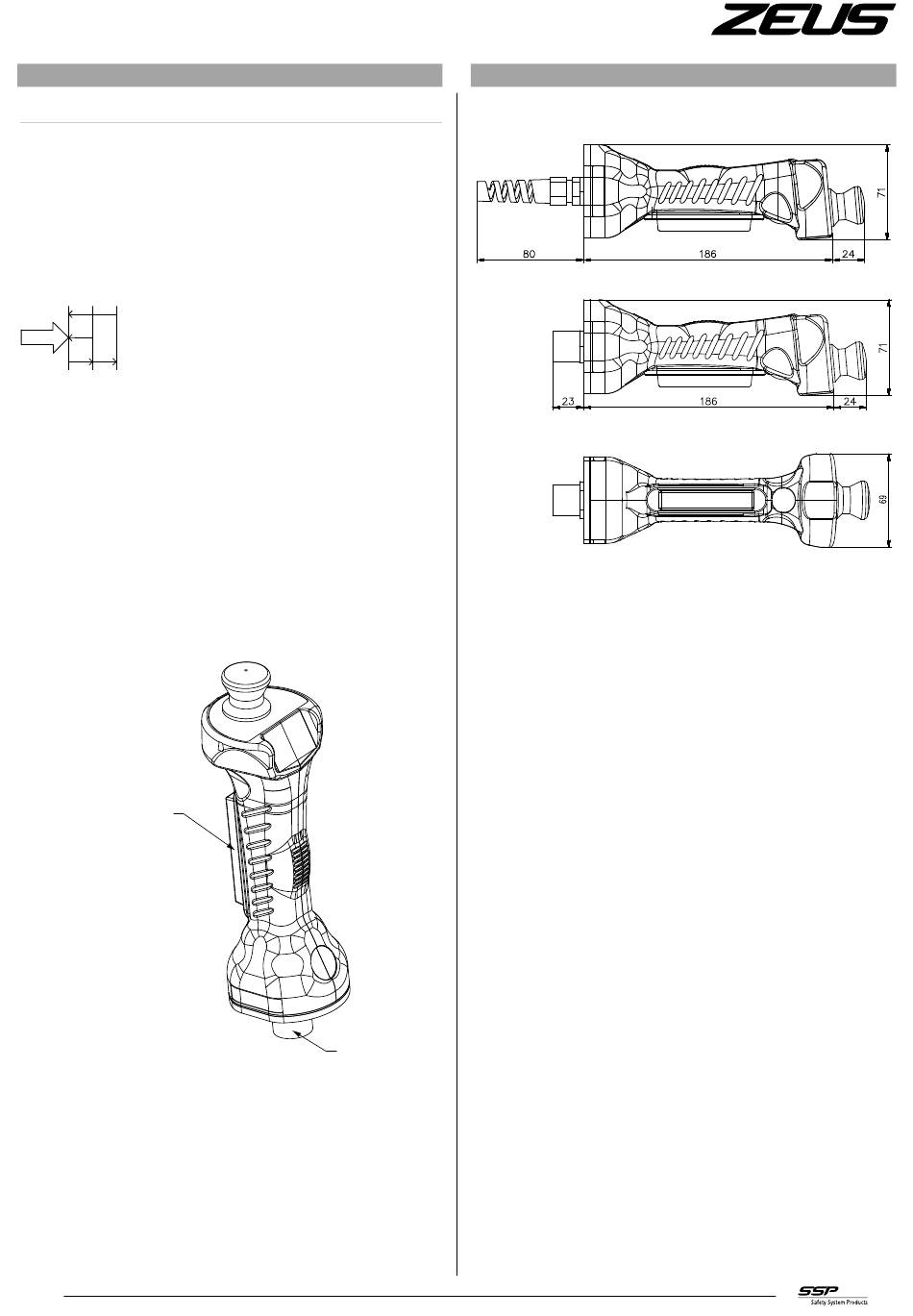

2 .4 Dimensions

8
A

2 .5 Special design types

For special design types, that are not listed under 2.3 type code, the above and following
information is accordingly applicable if they correspond to the standard design.
2 .6 Intended use
ZEUS is a 3-level enabling switch with operational unit. The enabling/operational unit
provides the highest safety (Cat. 4 / PLe) only with an application of an appropriate safety
relay. The safety relays have to be equipped with a possibility for cross-circuit monitoring.
