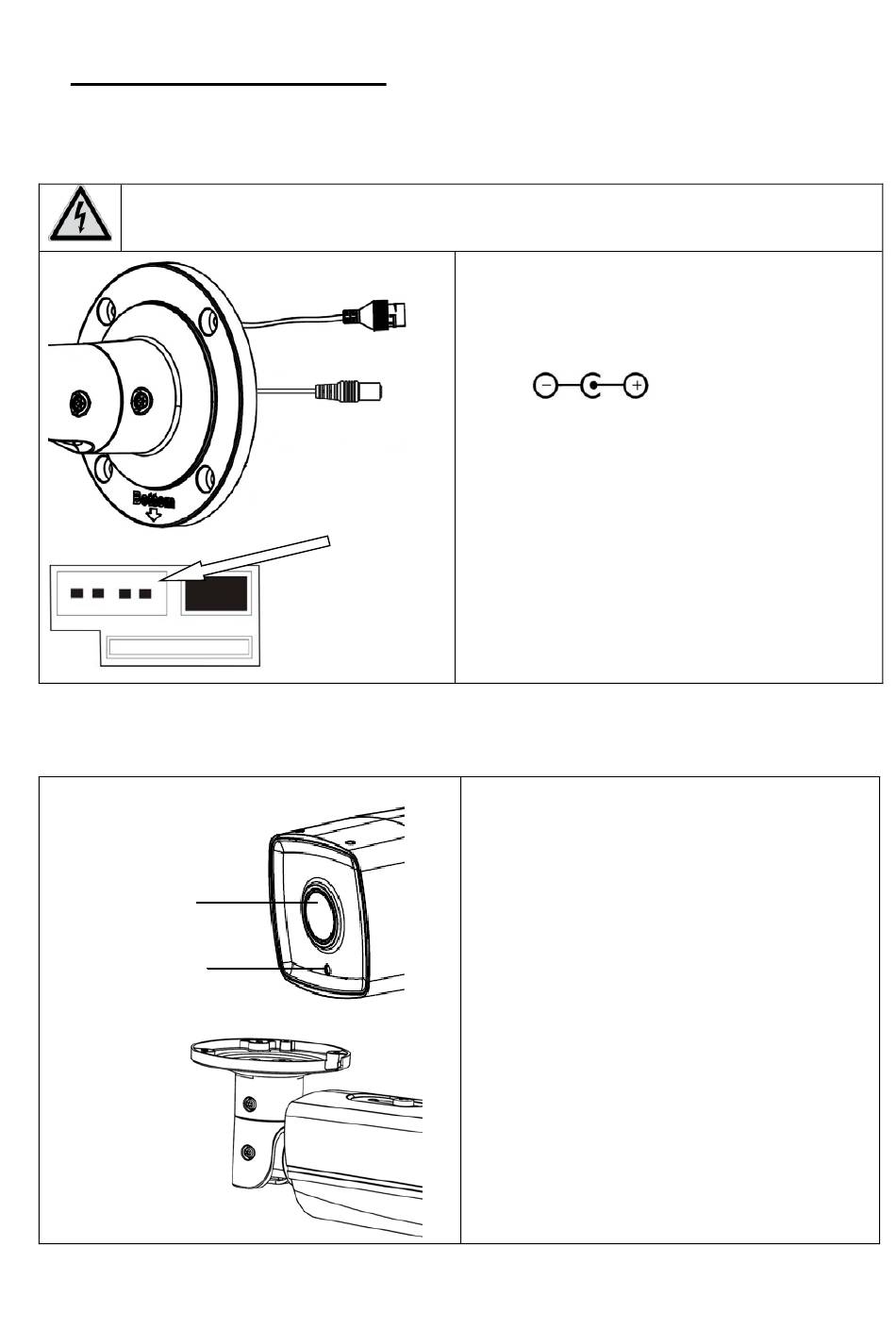

3. Connections and functions

3.1 Connections

ATTENTION!
Before you begin the installation, make sure that the supply voltage and the nominal
voltage of the camera match.

3.2 Housing overview

1
2
3
1:
1
2:
2
3: On bottom side of device, under the
cover:
Analogue video output for service need
(BNC, FBAS, 1Vpp)
3
1:
2:
3:
4:
4
14
Network connector (RJ45, PoE 802.3at)
Power connector, 12 V DC, ensure that
the polarity is correct
Lens
Light sensor for day/night switch
Camera bracket (3-asis adjustable)
Sunshield (removable, movable)
