30 EN

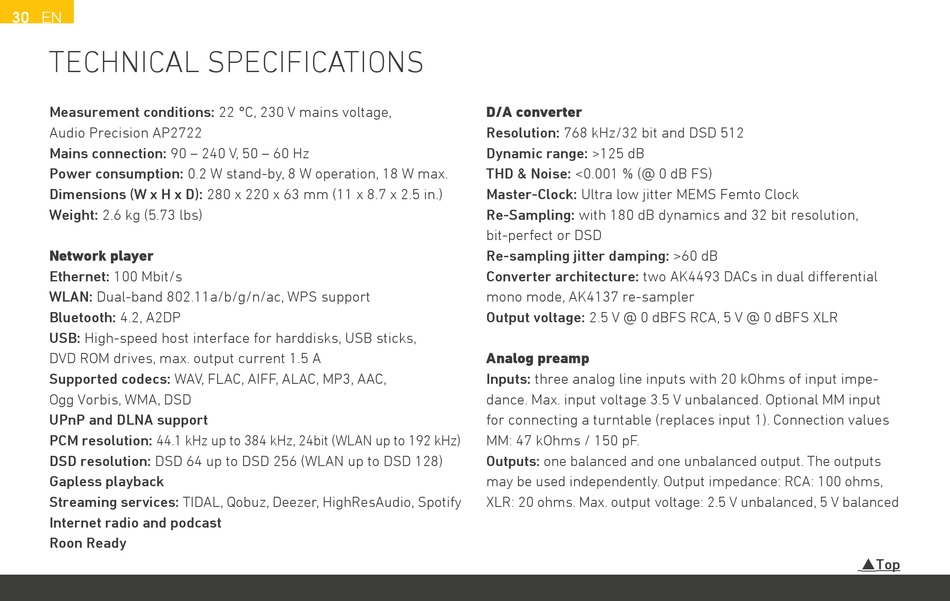

TECHNICAL SPECIFICATIONS

Measurement conditions: 22 °C, 230 V mains voltage,
Audio Precision AP2722
Mains connection: 90 – 240 V, 50 – 60 Hz
Power consumption: 0.2 W stand-by, 8 W operation, 18 W max.
Dimensions (W x H x D): 280 x 220 x 63 mm (11 x 8.7 x 2.5 in.)
Weight: 2.6 kg (5.73 lbs)
Network player
Ethernet: 100 Mbit/s
WLAN: Dual-band 802.11a/b/g/n/ac, WPS support
Bluetooth: 4.2, A2DP
USB: High-speed host interface for harddisks, USB sticks,
DVD ROM drives, max. output current 1.5 A
Supported codecs: WAV, FLAC, AIFF, ALAC, MP3, AAC,
Ogg Vorbis, WMA, DSD
UPnP and DLNA support
PCM resolution: 44.1 kHz up to 384 kHz, 24bit (WLAN up to 192 kHz)
DSD resolution: DSD 64 up to DSD 256 (WLAN up to DSD 128)
Gapless playback
Streaming services: TIDAL, Qobuz, Deezer, HighResAudio, Spotify
Internet radio and podcast
Roon Ready
D/A converter
Resolution: 768 kHz/32 bit and DSD 512
Dynamic range: >125 dB
THD & Noise: <0.001 % (@ 0 dB FS)
Master-Clock: Ultra low jitter MEMS Femto Clock
Re-Sampling: with 180 dB dynamics and 32 bit resolution,
bit-perfect or DSD
Re-sampling jitter damping: >60 dB
Converter architecture: two AK4493 DACs in dual differential
mono mode, AK4137 re-sampler
Output voltage: 2.5 V @ 0 dBFS RCA, 5 V @ 0 dBFS XLR
Analog preamp
Inputs: three analog line inputs with 20 kOhms of input impe-
dance. Max. input voltage 3.5 V unbalanced. Optional MM input
for connecting a turntable (replaces input 1). Connection values
MM: 47 kOhms / 150 pF.
Outputs: one balanced and one unbalanced output. The outputs
may be used independently. Output impedance: RCA: 100 ohms,
XLR: 20 ohms. Max. output voltage: 2.5 V unbalanced, 5 V balanced
