Lindemann musicbook source Bedienungsanleitung Seite 22

22 EN

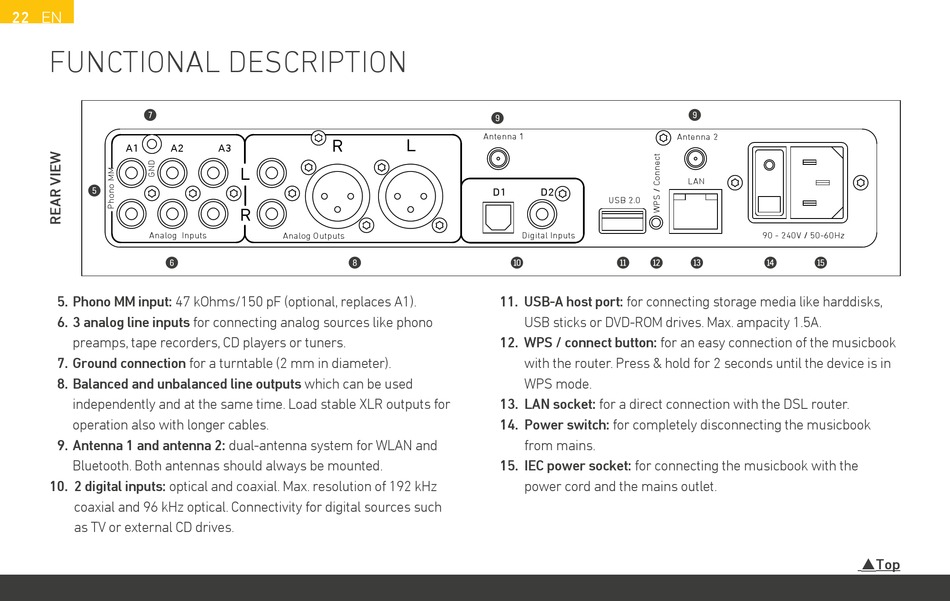

FUNCTIONAL DESCRIPTION
7
A1 A2
5
Analog Inputs
6
5. Phono MM input: 47 kOhms/150 pF (optional, replaces A1).
6. 3 analog line inputs for connecting analog sources like phono
preamps, tape recorders, CD players or tuners.
7. Ground connection for a turntable (2 mm in diameter).
8. Balanced and unbalanced line outputs which can be used
independently and at the same time. Load stable XLR outputs for
operation also with longer cables.
9. Antenna 1 and antenna 2: dual-antenna system for WLAN and
Bluetooth. Both antennas should always be mounted.
10. 2 digital inputs: optical and coaxial. Max. resolution of 192 kHz
coaxial and 96 kHz optical. Connectivity for digital sources such
as TV or external CD drives.
R
A3
L
R
Analog Outputs
8
9
Antenna 1
L
D1 D2
Digital Inputs
q
11. USB-A host port: for connecting storage media like harddisks,
USB sticks or DVD-ROM drives. Max. ampacity 1.5A.
12. WPS / connect button: for an easy connection of the musicbook
with the router. Press & hold for 2 seconds until the device is in
WPS mode.
13. LAN socket: for a direct connection with the DSL router.
14. Power switch: for completely disconnecting the musicbook
from mains.
15. IEC power socket: for connecting the musicbook with the
power cord and the mains outlet.
9
Antenna 2
LAN
USB 2.0
90 - 240V / 50-60Hz
w e r t y
