Velleman CAMCOLBUL4 Handbuch

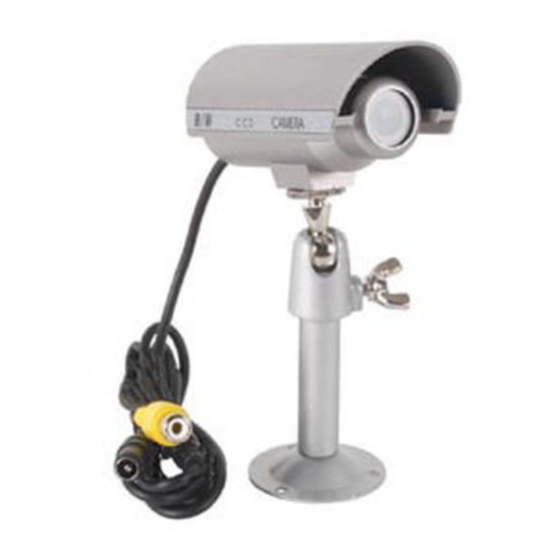

CAMCOLBUL4 - COLOUR CCD "BULLET" CAMERA (WEATHERPROOF)
CAMZWBUL4 - B/W CCD "BULLET" CAMERA (WEATHERPROOF)
1. Introduction & Features
Thank you for buying the CAMCOLBUL4/CAMZWBUL4. Please read the manual thoroughly before bringing this
device into service. If the device was damaged in transit, don't install or use it and contact your dealer.
The viewing angle depends on the type of lens you're using.
The electronic iris is suited for a wide range of applications.
2. Installation
1. Fix the camera on the mounting bracket.
2. Install the bracket in the selected location with the supplied screws. Do not forget to check the camera's field of vision
before you tighten the screws.
3. Connect the camera with the monitor (yellow plug) and the mains (black plug).
4. Use a regulated adapter for optimum results.
3. Specifications
Image Sensor
Pixels
Horizontal Resolution
Scanning System
Min. Illumination
Automatic Electronic Shutter
Dimensions
White Balance
Sync. System
Scanning Frequency
S/N Ratio
Gamma Correction
Video Output Signal
Automatic Gain Control (AGC)
Backlight Compensation (BLC)
Lens
Operating Temperature
Humidity
Output Connection
Power Supply
The information in this manual is subject to change without prior notice.
CAMCOLBUL4 / CAMZWBUL4
CAMCOLBUL4
1/4" Sharp colour CCD
320000 (PAL)
330 TV lines
625 lines, 2:1 interlace -PAL-
1 lux (F2:0)
1/50 - 100000 -PAL-
Ø36 x 100mm
15325Hz (H) x 50Hz (V)
1.0Vpp 75ohm negative
f3.6mm (board lens)
< 90% relative humidity
12Vdc 10%, 100mA
- 1 -
CAMZWBUL4
1/3" B/W CCD
320000 (CCIR)
420 TV lines
625 lines, 2:1 interlace -CCIR-
0.5 lux (F2:0)
1/50 - 100000 -CCIR-
Ø36 x 80mm
automatic (AWB)
2:1 internal
48dB (AGC off)
0.45
available
built-in
-10 to +50°C
RCA connector
