Assembly of panels
Devine the position of the panel on the wall. Mark the top and side edge.
1.

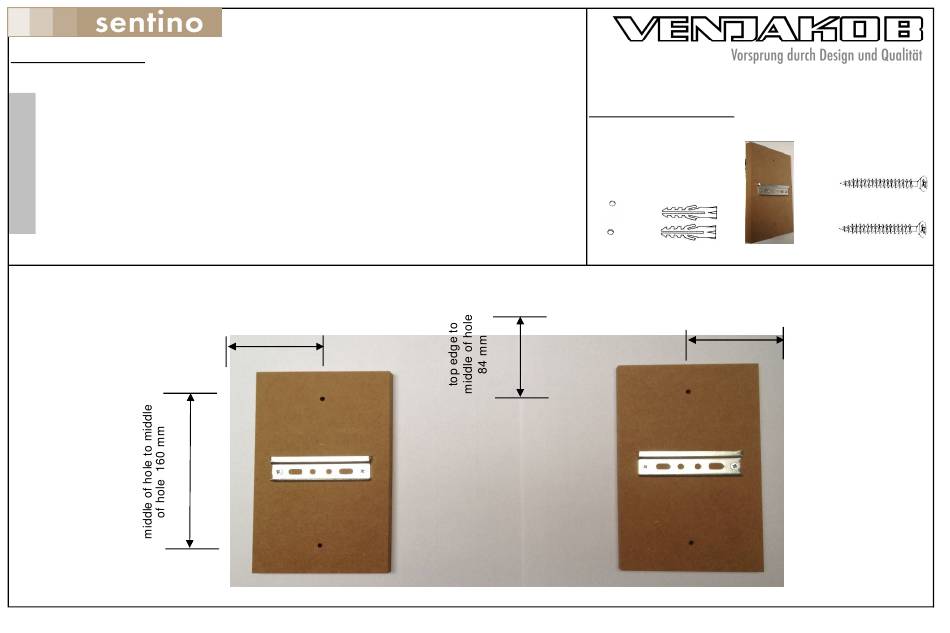

Mark the drilling holes as shown in the below picture. Drill the holes with a 8 mm drilling bit.
2.
Insert the anchor bolts (8x40) and screw on the bearing plates with 2 screws (5x80).
3.
Hang up the panel on the bearing plates. If necessary adjust with the adjusting screws
4.
on the hanging fitting.
side edge panel to
middle of hole 100
mm
fixing of the hanging plate
hanging plate
2 drilling holes
Ø 8mm
2 piece
anchor bolt 8x40
side edge panel to
middle of hole
100 mm
screws 5x80
