Setting Up the Visualizer

Working Surface

The working surface of the Visualizer (#2) has a special crystalline white color, which is especially designed
for perfect reproduction of transparencies.
In the following cases, an optional lightbox is recommended:
- If the transparency is very dark
- If the transparency is very wavy and causes reflections
- If the room light causes reflections on a transparency
The optional whiteboard foil can be used for direct annotation with special whiteboard markers. WolfVision
offers spare whiteboard foils.
More information on markers and sponge cleaners
Operating the Visualizer for the first time - Quick Setup Guide
When the Visualizer is switched on the first time, the Quick Setup Guide will be started automatically on-
screen (visible on HDMI-, RGB output and built-in display). Use the arrow keys to navigate through the
menu .
The settings are:
Language
Select the desired language for the on-screen menu.
Ethernet Settings
The IP-address, Subnet Mask and Gateway IP-address can be set automatically by a DHCP-server or
manually.
Time Settings
The Visualizer offers the possibility to use the internal clock or an external time server (a time valid time
server IP address and internet connection are required).
1. Connect the power pack to the POWER (#18)
Alternative PoE+ can be used (see page14).
2. Connect your display device (projector, monitor, video
conferencing unit etc.) to the appropriate output of
the Visualizer (#13, #14, #17 or #19).
IMPORTANT:
For choosing the right resolution on RGB and HDMI
outputs please read the detailed description on page 11!

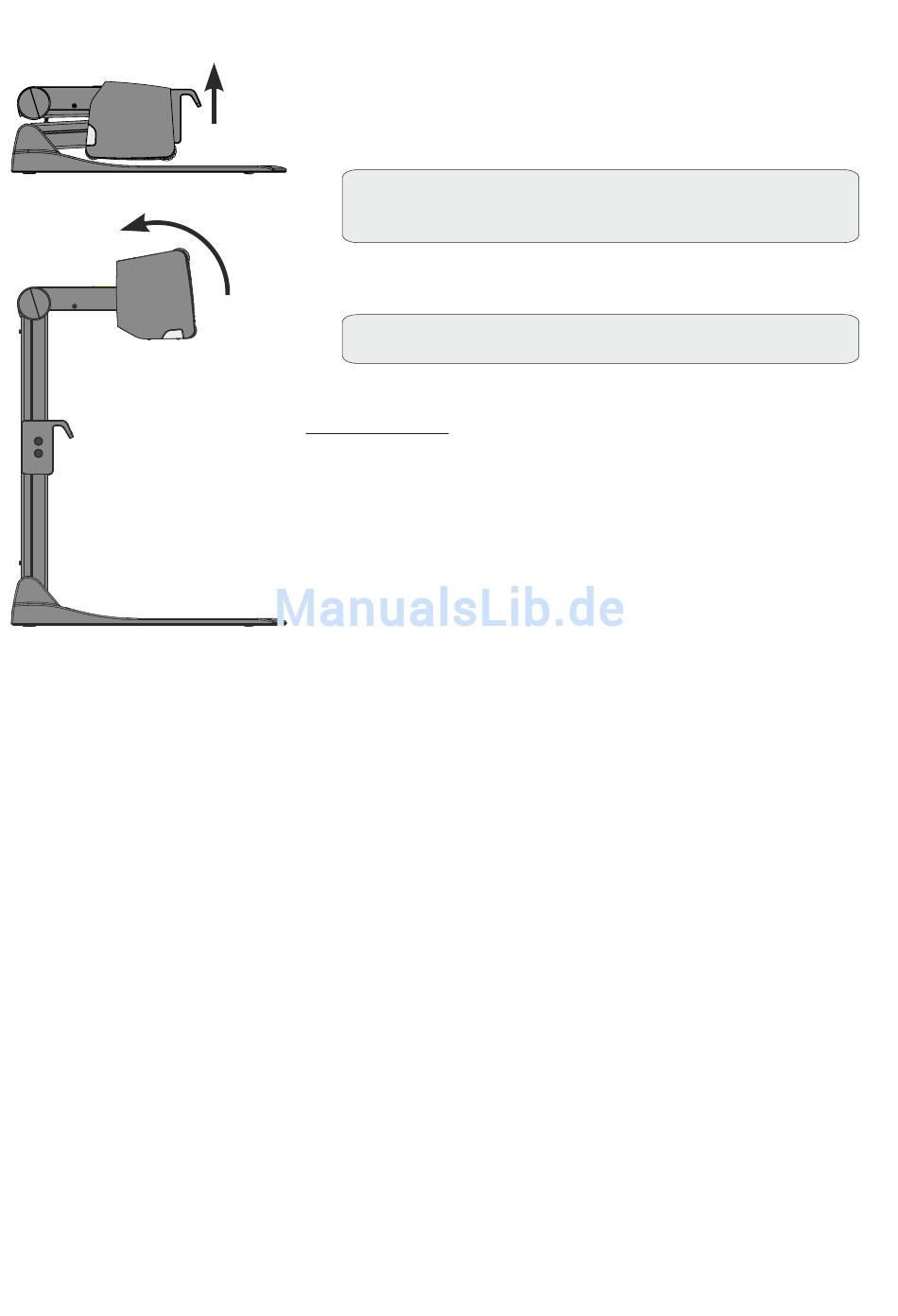

3. Use the pull pad (#11) to lift the arm upwards
4. Turn camera head to working position (light cannot be turned).
5. Switch on the Visualizer with the POWER key (#3).
IMPORTANT:
To fold the Visualizer, use pull pad only (#11)!
Power-on preset:
The power-on preset is automatically activated when switching on the
unit. The settings are: middle zoom size (approx. image width of 14 cm)
autofocus: on, auto iris: on.
As soon as the Power Indication LED stays green illuminated, you can
start working with the Visualizer. The behavior of the unit once the
power has been supplied or after the POWER key has been pressed
can be changed in the unit's on-screen menu (see page 10).
at www.wolfvision.com (Products / Accessories)
6
