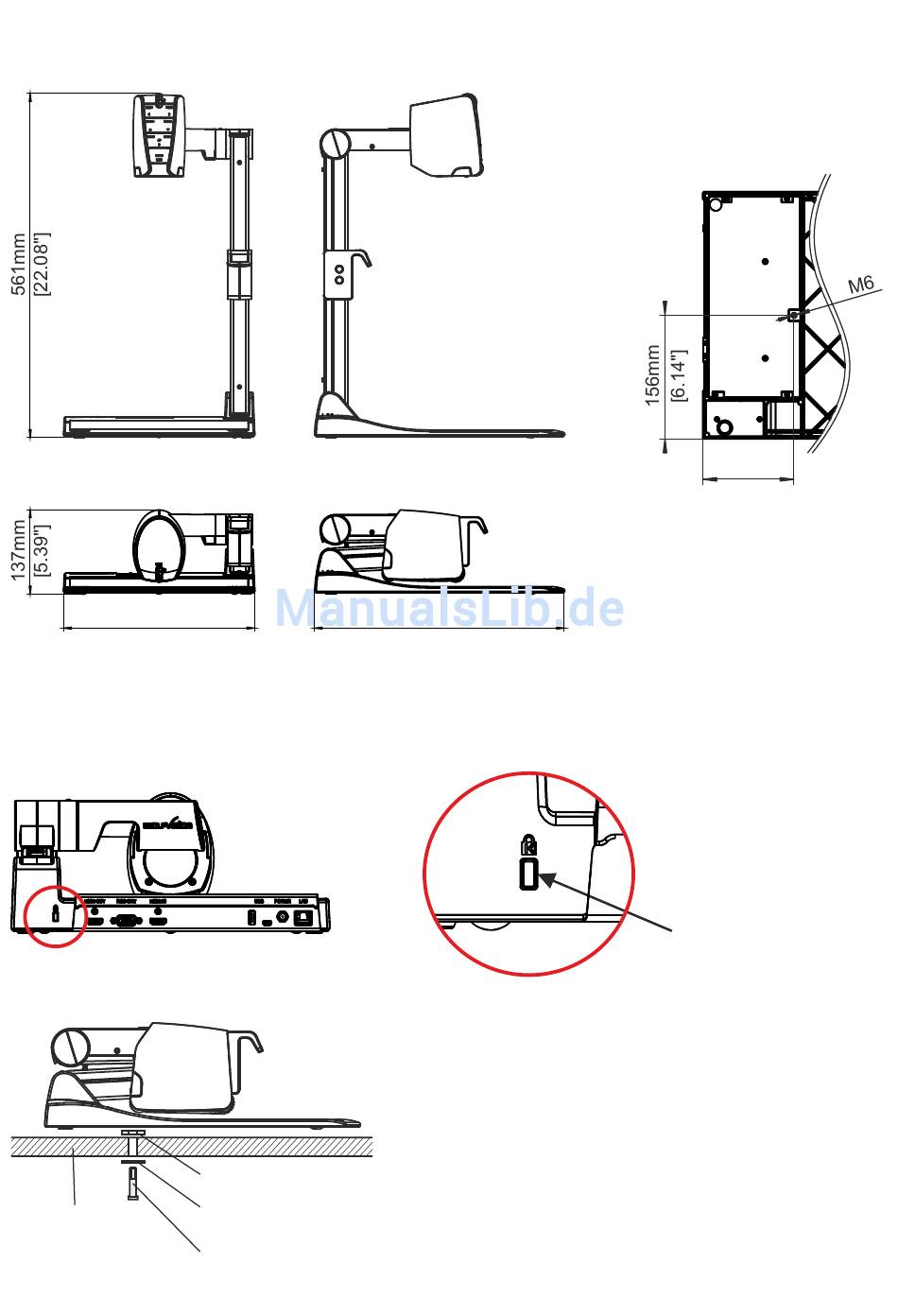

Dimensions
working position:
closed:
312mm
[12.28"]
Anti-theft device 1: T-bar lock
The Visualizer can be fixed with a
Follow the instructions from the cable lock manual.
Anti-theft device 2: table lock bolt
table
(sectional view)
security cable T-bar lock (Kensington Lock)
washer 6.4/17x3
washer 6.4/12x1.6
screw M6x35 or
screw M6x50
408mm
[16.06"]
The Visualizer can also be fixed onto a table with the
supplied table lock bolt in order to minimize the risk of
theft.
Please note that the usable depth of thread is 8mm, do
not screw in more than this.
Supplied accessories:
Screw DIN 912, M6x35 Zn
Screw DIN 912, M6x50 Zn
Washer DIN 125A 6.4/12x1.6
Washer DIN 7349 6.4/17x3
Assembly instructions VZ-8
15
115mm
[4.53"]
Technical Specifications are Subject to Change!
®
, so that it can not be stolen.
slot for lock
4
(101689)
(101690)
(101691)
(101692)
(107799)
