2. Input & Output Connections

2.1 FlyDVB-T Duo/Hybrid CardBus Connections

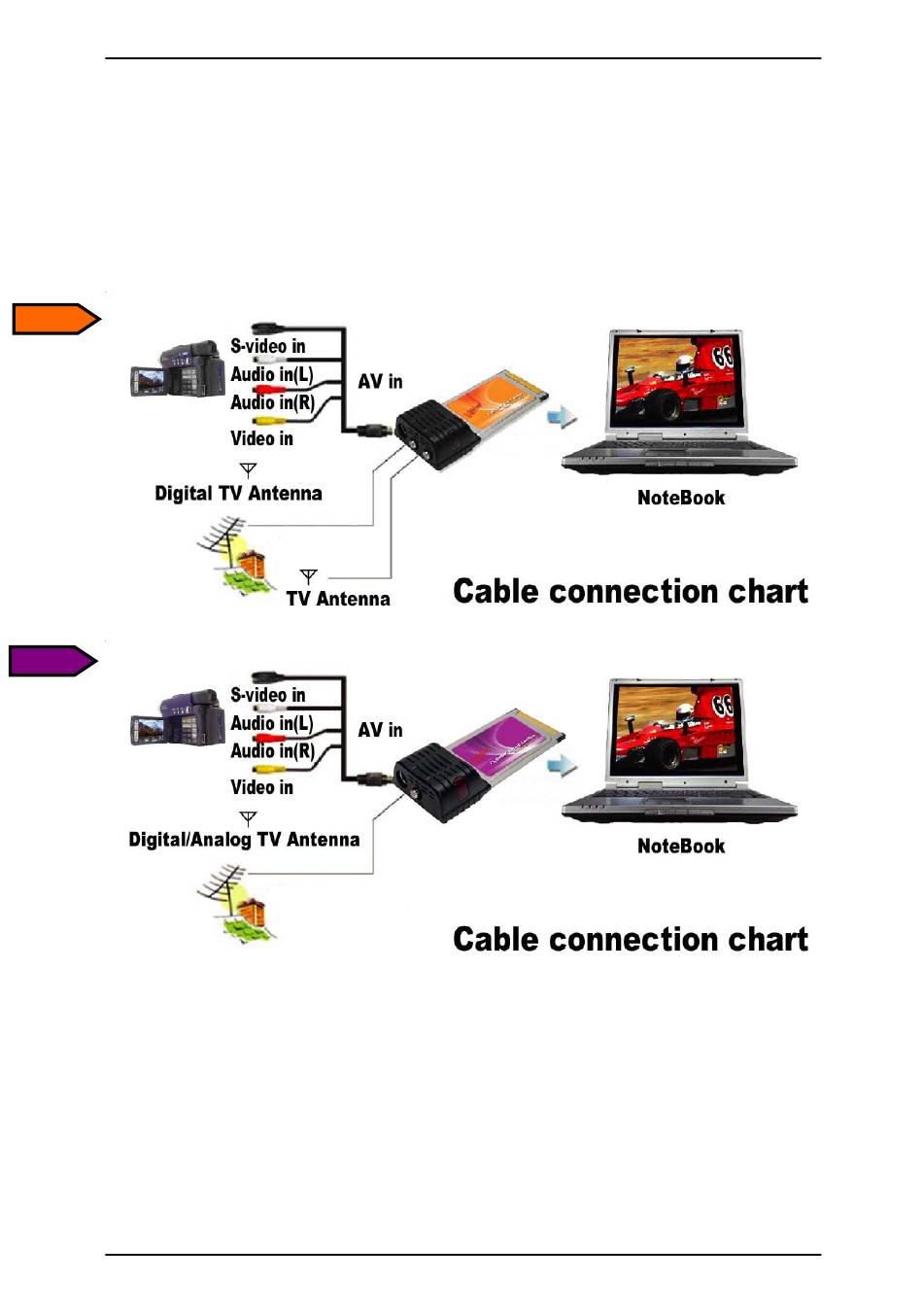

The FlyDVB-T Duo/Hybrid CardBus card supports S-Video, Composite and Analog
TV input. See the diagram below for connection details.
DUO
HYBRID
AV Cable:
S-Video:
Audio (L):
Audio (R):
Video In:
Digital TV Antenna: Connects to your home or room antenna for Digital Terrestrial
TV Antenna:
Connect the AV Cable to the 9-pin connector of the FlyDVB-T
Duo/Hybrid CardBus
S-Video input for external devices like VCRs or camcorders
Connects to the left audio channel of an external audio device
Connects to the right audio channel of an external audio device
Composite video input for external devices like VCRs or
camcorders
TV
Connects to your home antenna or cable for Analog TV
