2. Input & Output Connections

2.1 TV Walker Hybrid Connections

1
1
5
5
6
6

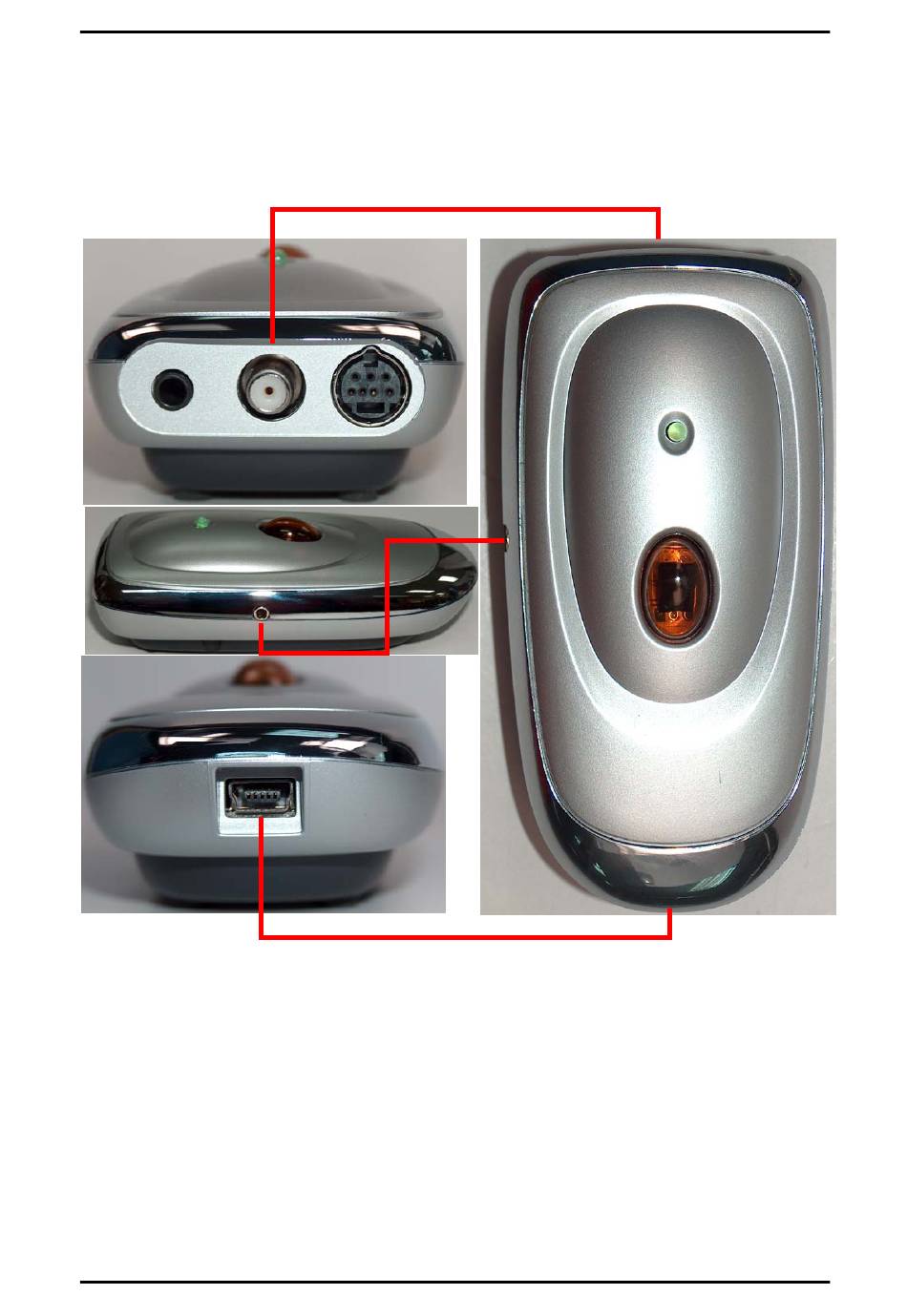

1 Audio In: Connects external audio to unit using supplied cable.
2 TV In: Connects to provided NTSC or PAL adaptor to connect to TV source.
3 S-Video In: Connects to S-Video sources, or to composite video sources using
provided adaptor.
4 IR Sensor: Onboard IR sensor for remote control.
5 Extended IR Sensor port: Connects to IR extension cable.
6 Mini USB: Connects the TV Walker Hybrid to your PC.
