2. Input & Output Connections

2.1 FlyDVB-T Connections

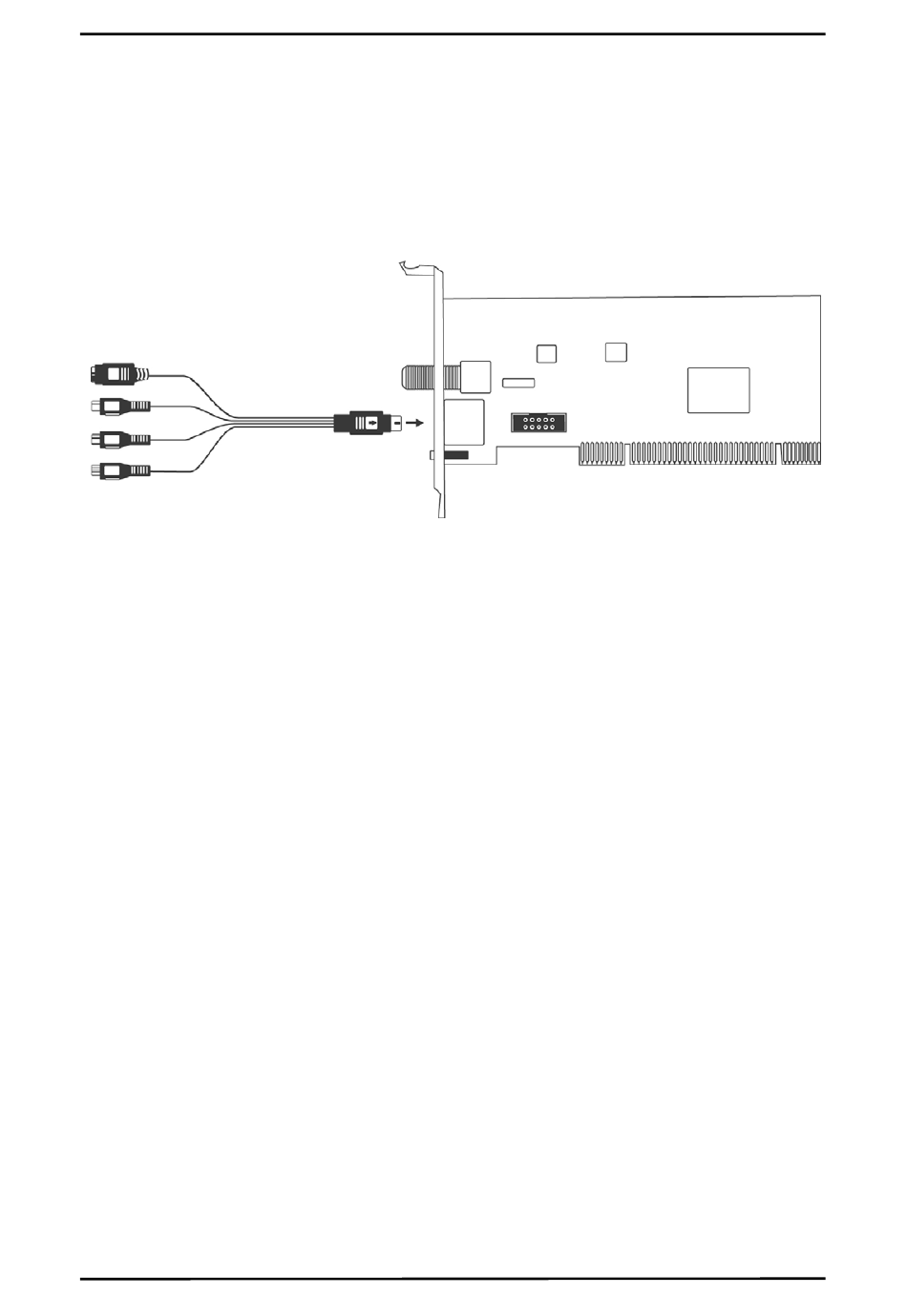

The FlyDVB-T card supports S-Video, and composite video input. See the diagram
below for connection details.
1
2
3
4
1. S-Video:
2. Composite Video:
3. Audio (R):
4. Audio (L):
5. DVB-T:
6. AV Cable:
7. Remote:
8. A/V Box Connector: Connects to optional A/V input box (optional)
5
6
7
S-Video input for external devices like VCRs or camcorders
Composite video input for external devices like VCRs or
camcorders
Connects to the right audio channel of an external audio
device
Connects to the left audio channel of an external audio
device
Connects to your home or room antenna for Digital
Terrestrial TV
Connect the AV Cable to the 9-pin connector of the
FlyDVB-T
Connects to the IR remote cable
