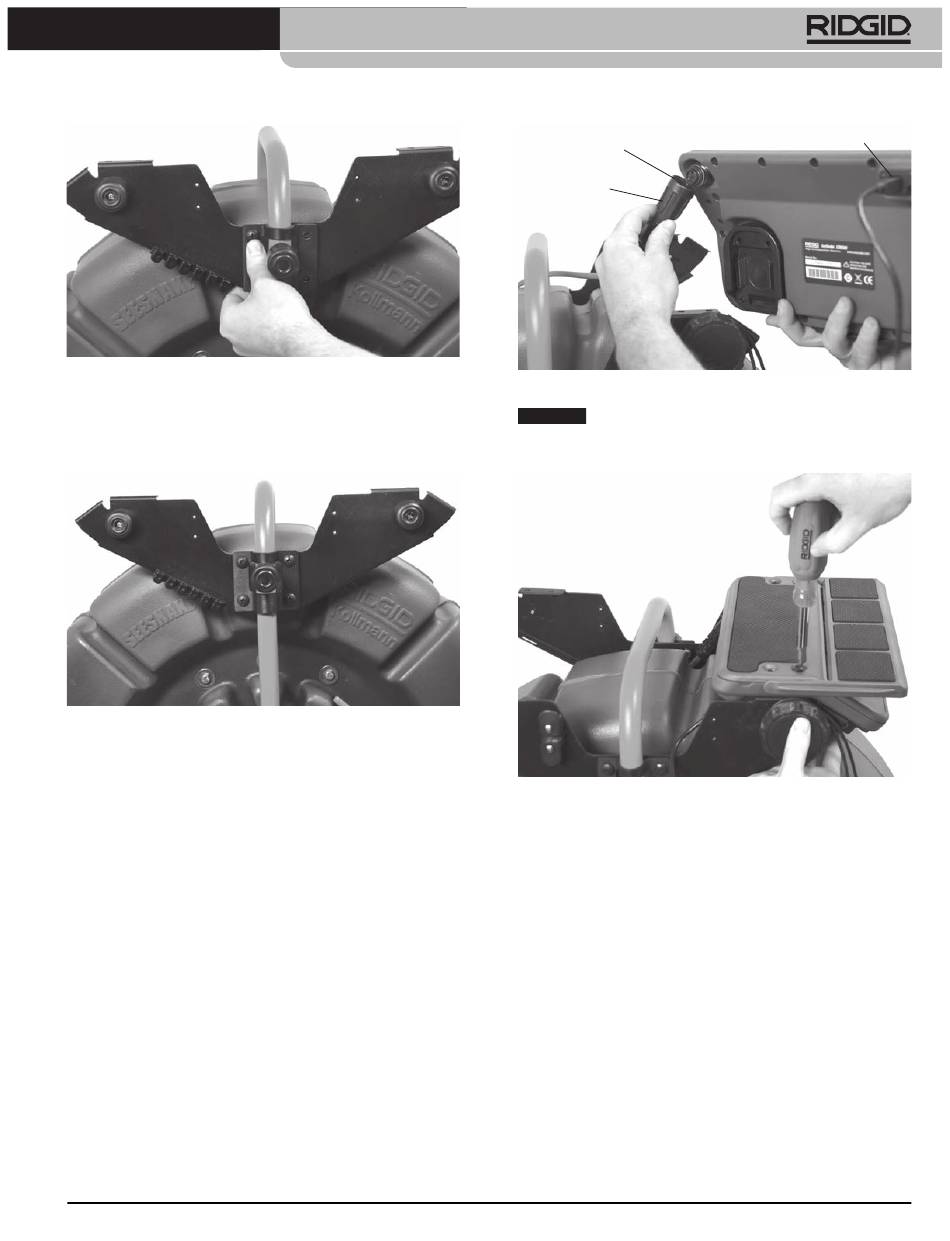

Figure 10 – Aligning the Bracket to the Side Plate
7. Insert the four screws through the mounting brack-
et and side plate into their individual nuts and hand
tighten.
Figure 11 – Near Side-Plate Mounted
8. Repeat the process with the other side plate and
mounting bracket. The two side plates should be
level.
9. Route the SeeSnake System Cable from the See-
Snake between the side plates and connect it to
the SeeSnake Connector on the bottom of the
right-hand platform. The SeeSnake System Cable
has a guide ridge molded into the top of the cable
connector. With the guide ridge aligned with the
guide pin of the receptacle, insert the System Ca-
ble into the System Connector firmly and turn the
locking sleeve clockwise to tighten it in position.
SeeSnake® LT1000
Locking Sleeve
Guide Ridge
Figure 12 – Attaching the SeeSnake System Cable
When connecting/disconnecting the SeeSnake
NOTICE
system cable, turn only the locking sleeve. To prevent dam-
age, do not bend or twist the connector or cable.
Figure 13 – Mounting Right-Hand Platform
10. Mount the right hand (keyboard) platform by align-
ing it with the mounting holes in the flanges of the
side plates and screw it hand tight with four screws.
Adjust the platform so it is level.
USB Connector
9
