ASROCK Z87 Extreme6/ac Handbuch Seite 6

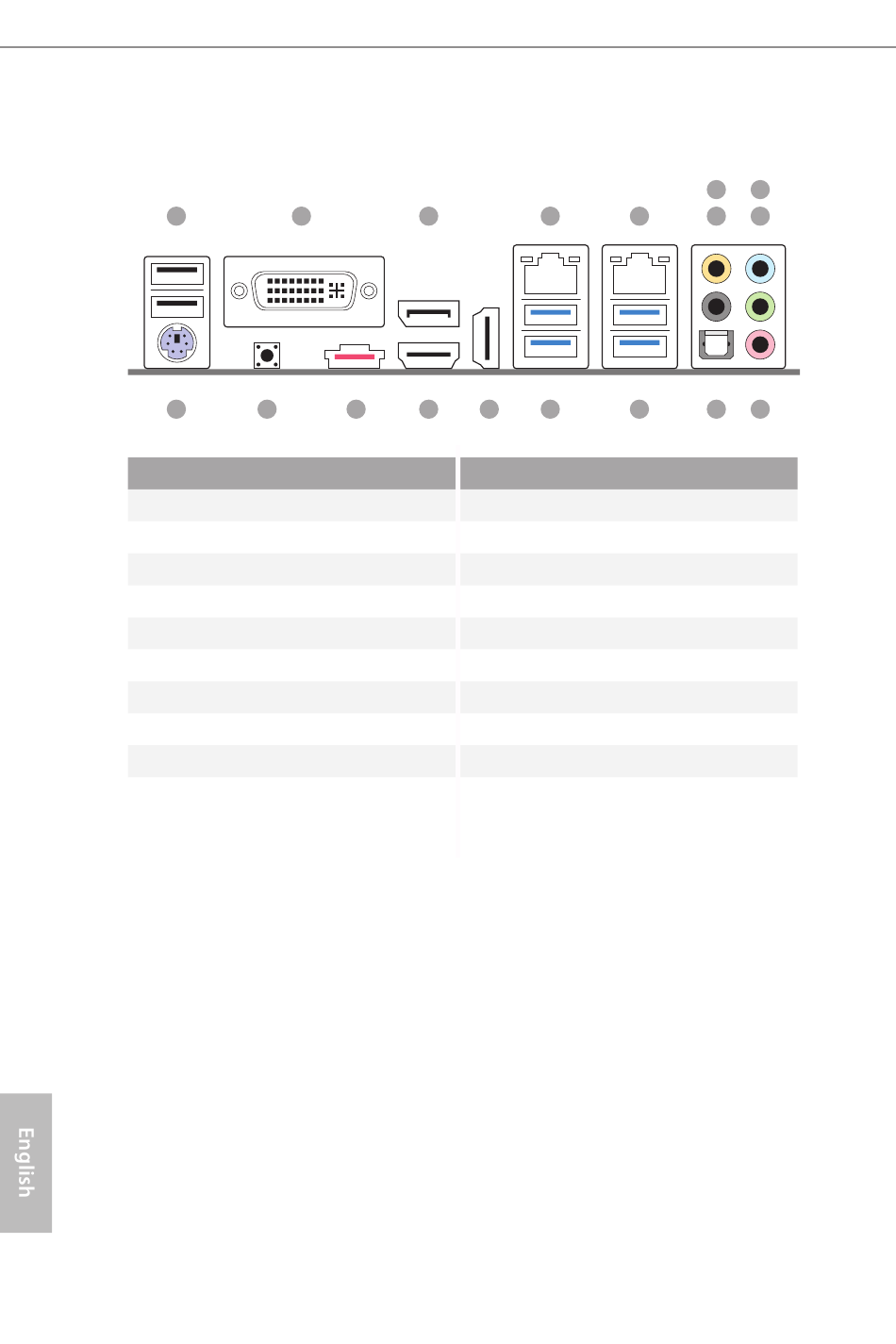

I/O Panel
1
18
No. Description
1 USB 2.0 Ports (USB01)
2 DVI-I Port
3 Display Port
4 LAN RJ-45 Port (Intel® I217V)*
5 LAN RJ-45 Port (Intel® I211AT)*
6 Central / Bass (Orange)
7 Rear Speaker (Black)
8 Line In (Light Blue)
9 Front Speaker (Lime)**
10 Microphone (Pink)
4
2 3
17 16 15
4 5
14 13 12
No. Description
11 Optical SPDIF Out Port
12 USB 3.0 Ports (USB3_23)
(ASMedia Hub)
13 USB 3.0 Ports (USB3_01)
(ASMedia Hub)
14 HDMI-In Port
15 HDMI-Out Port
16 eSATA Connector***
17 Clear CMOS Switch
18 PS/2 Mouse/Keyboard Port
6 8
7 9
11 10
