Behringer Ultragraph PRO Bedienungsanleitung Seite 10

10
ULTRAGRAPH PRO FBQ6200/FBQ3102/FBQ1502 Bedienungsanleitung

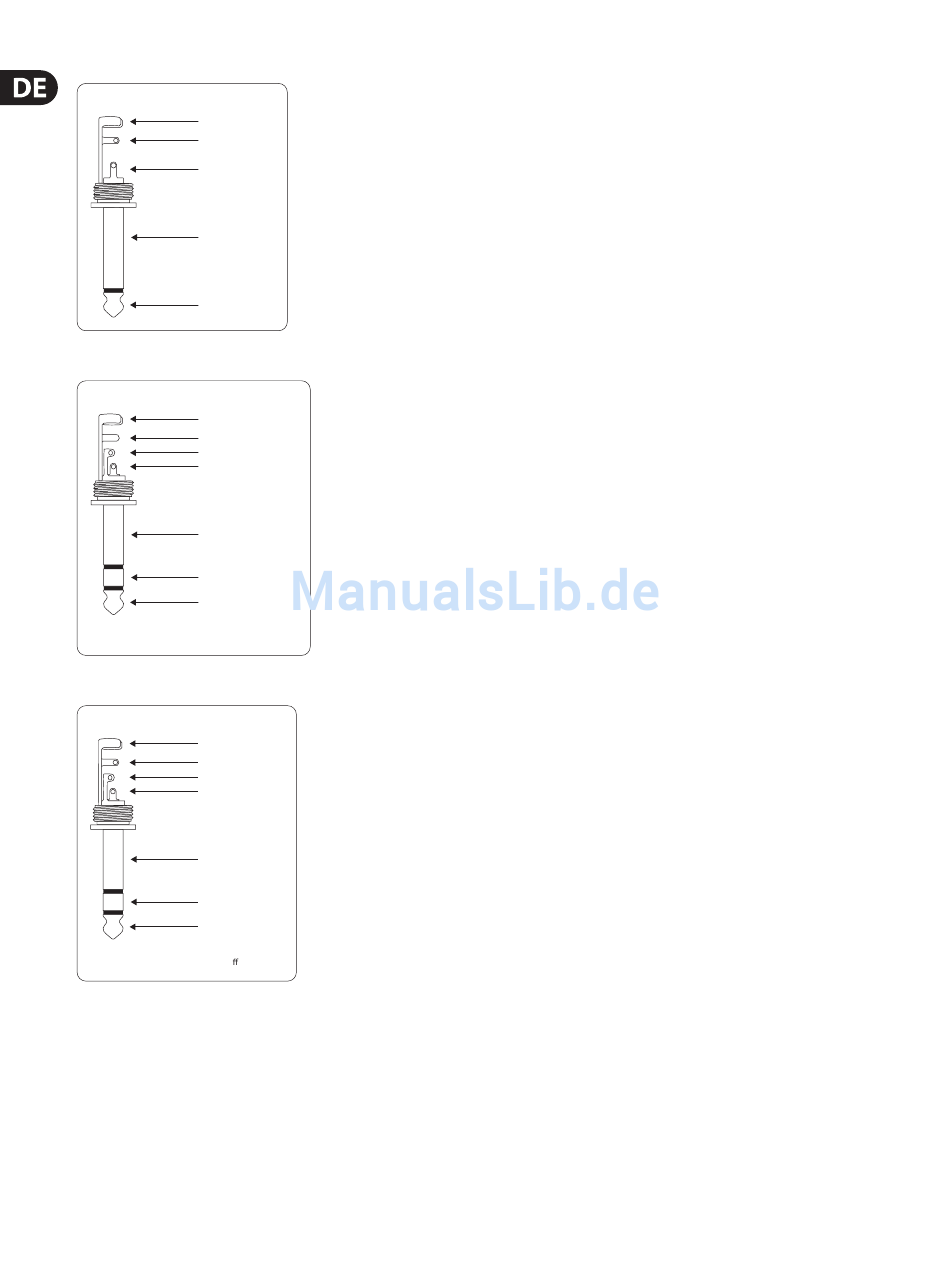

Unbalanced ¼" TS connector
strain relief clamp
sleeve
tip
sleeve
(ground/shield)
tip
(signal)
Abb. 4.2: 6,3-mm-Monoklinkenstecker
Balanced ¼" TRS connector
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
ring
cold (-ve)
tip
hot (+ve)
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Abb. 4.3: 6,3-mm-Stereoklinkenstecker
Insert send return ¼" TRS connector
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
ring
return (in)
tip
send (out)
Connect the insert send with the input and the
insert return with the output of the e ects device.
Abb. 4.4: 6,3-mm-Stereoklinkenstecker für Insert-Kabel
