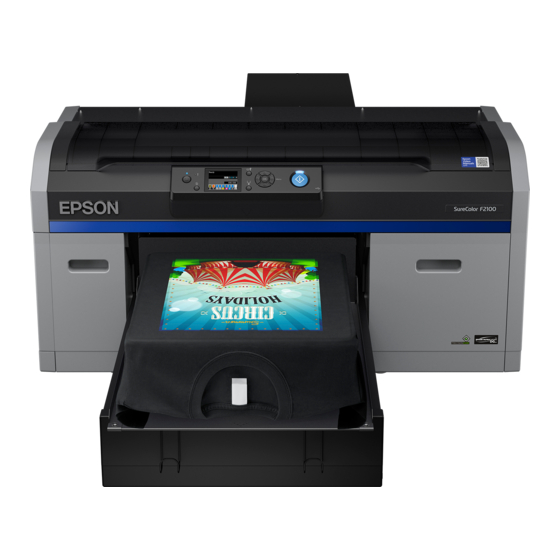

Epson SC-F2100 series Handbuch

EN Medium Grooved Platen (C12C933961)
If you use an SC-F2100 Series printer, see the printer
manual. See below if you use an SC-F2000 Series printer.
Notes on Usage
Notes on how to handle this product safely are also included
in the printer manual. Make sure you read those notes
together with this guide.
Handling this Product
• Be very careful not to drop when handling this product;
otherwise, it could be damaged.
• When cleaning this product, never use any volatile liquid
such as benzene, thinners, or alcohol. This could cause
discoloration, deformities, and damage.
Product Specifications
Dimensions (W) 389 × (D) 439 × (H) 50 mm
Weight 3.8 kg
Head Alignment
• Head alignment cannot be performed correctly on uneven
surfaces such as media with zippers and so on. For head
alignment, make sure you use an even surface such as the back
of the fabric.
• Head alignment check patterns printed with this product
attached appear in the area of "A" in the illustration below.
Areas that Cannot be Printed
Areas "A" and "B" in the illustration below cannot be printed.
Area "C" is occupied by a square part. This area cannot be
printed if the part is removed to ready the platen for use with
zippers. See the next section for information on removing
and attaching this part.
A: Platen frame
B: Area that cannot be printed
C: Square part
