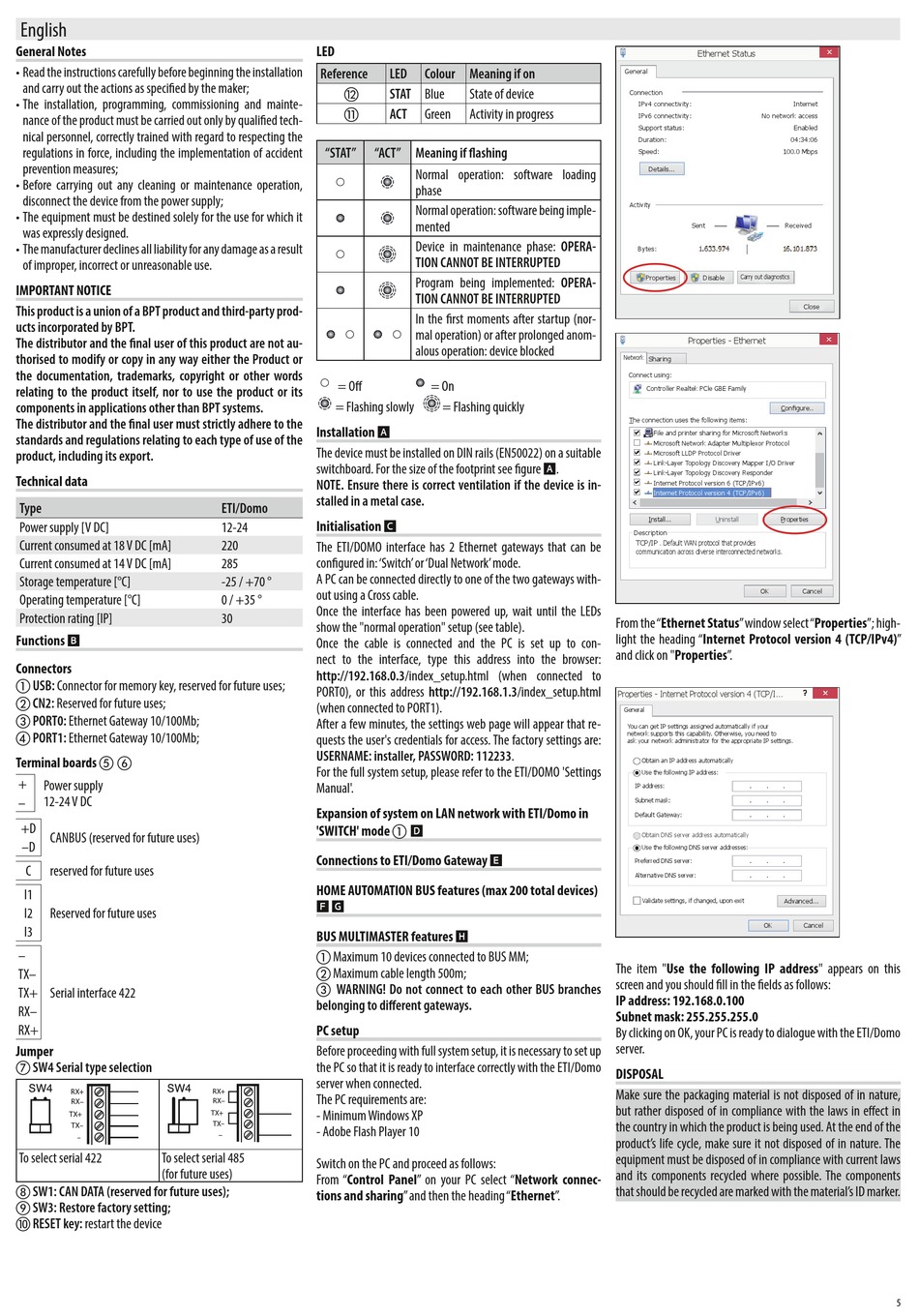

English
General Notes
• Read the instructions carefully before beginning the installation
and carry out the actions as specified by the maker;
• The installation, programming, commissioning and mainte-
nance of the product must be carried out only by qualified tech-
nical personnel, correctly trained with regard to respecting the
regulations in force, including the implementation of accident
prevention measures;
• Before carrying out any cleaning or maintenance operation,
disconnect the device from the power supply;
• The equipment must be destined solely for the use for which it
was expressly designed.
• The manufacturer declines all liability for any damage as a result
of improper, incorrect or unreasonable use.
IMPORTANT NOTICE
This product is a union of a BPT product and third-party prod-
ucts incorporated by BPT.
The distributor and the final user of this product are not au-
thorised to modify or copy in any way either the Product or
the documentation, trademarks, copyright or other words
relating to the product itself, nor to use the product or its
components in applications other than BPT systems.
The distributor and the final user must strictly adhere to the
standards and regulations relating to each type of use of the
product, including its export.
Technical data
Type
Power supply [V DC]
Current consumed at 18 V DC [mA]
Current consumed at 14 V DC [mA]
Storage temperature [°C]
Operating temperature [°C]
Protection rating [IP]
Functions
B
Connectors
USB: Connector for memory key, reserved for future uses;
CN2: Reserved for future uses;
PORT0: Ethernet Gateway 10/100Mb;
PORT1: Ethernet Gateway 10/100Mb;
Terminal boards
+
Power supply
12-24 V DC
–
+D
CANBUS (reserved for future uses)
–D
C
reserved for future uses
I1
I2
Reserved for future uses
I3
–
TX–
TX+
Serial interface 422
RX–
RX+
Jumper
SW4 Serial type selection
To select serial 422
To select serial 485
(for future uses)
SW1: CAN DATA (reserved for future uses);
SW3: Restore factory setting;
RESET key: restart the device
LED
Reference
LED
STAT Blue
ACT
"STAT"
"ACT" Meaning if flashing
= Off
= Flashing slowly
Installation
A
The device must be installed on DIN rails (EN50022) on a suitable
switchboard. For the size of the footprint see figure
NOTE. Ensure there is correct ventilation if the device is in-
stalled in a metal case.
ETI/Domo
Initialisation
12-24
C
220
The ETI/DOMO interface has 2 Ethernet gateways that can be
configured in: 'Switch' or 'Dual Network' mode.
285
A PC can be connected directly to one of the two gateways with-
-25 / +70 °
out using a Cross cable.
0 / +35 °
Once the interface has been powered up, wait until the LEDs
30
show the "normal operation" setup (see table).
Once the cable is connected and the PC is set up to con-
nect to the interface, type this address into the browser:
http://192.168.0.3/index_setup.html (when connected to
PORT0), or this address http://192.168.1.3/index_setup.html
(when connected to PORT1).
After a few minutes, the settings web page will appear that re-
quests the user's credentials for access. The factory settings are:
USERNAME: installer, PASSWORD: 112233.
For the full system setup, please refer to the ETI/DOMO 'Settings
Manual' .
Expansion of system on LAN network with ETI/Domo in
'SWITCH' mode
Connections to ETI/Domo Gateway
HOME AUTOMATION BUS features (max 200 total devices)
F G
BUS MULTIMASTER features
Maximum 10 devices connected to BUS MM;
Maximum cable length 500m;
WARNING! Do not connect to each other BUS branches
belonging to different gateways.
PC setup
Before proceeding with full system setup, it is necessary to set up
the PC so that it is ready to interface correctly with the ETI/Domo
server when connected.
The PC requirements are:
- Minimum Windows XP
- Adobe Flash Player 10
Switch on the PC and proceed as follows:
From "Control Panel" on your PC select "Network connec-
tions and sharing" and then the heading "Ethernet".
Colour Meaning if on
State of device
Green
Activity in progress
Normal operation: software loading
phase
Normal operation: software being imple-
mented
Device in maintenance phase: OPERA-
TION CANNOT BE INTERRUPTED
Program being implemented: OPERA-
TION CANNOT BE INTERRUPTED
In the first moments after startup (nor-
mal operation) or after prolonged anom-
alous operation: device blocked
= On
= Flashing quickly
A
.
D
E
H
Ethernet Status
General
Connection
IPv4 connectivity:
IPv6 connectivity:
No network access
Support status:
Duration:
Speed:
100.0 Mbps
Details...
Activity
Sent
Received
Bytes:
Carry out diagnostics
Properties
Disable
Properties - Ethernet
Network Sharing
Connect using:
Controller Realtek PCle GBE Family
Configure..
The connection uses the following items:
File and printer sharing for Microsoft Networks
Microsoft Network Adapter Multiplexor Protocol
Microsoft LLDP Protocol Driver
Link-Layer Topology Discovery Mapper I/O Driver
Link-Layer Topology Discovery Responder
Internet Protocol version 6 (TCP/IPv6)
Internet Protocol version 4 (TCP/IPv6)
Install...
Uninstall
Properties
Description
TCP/IP . Default WAN protocol that provides
communication across diverse interconnected networks.
OK
From the "Ethernet Status" window select "Properties"; high-
light the heading "Internet Protocol version 4 (TCP/IPv4)"
and click on "Properties".
Properties - Internet Protocol version 4 (TCP/I...
General
You can get IP settings assigned automatically if your
network supports this capability. Otherwise, you need to
ask your network administrator for the appropriate IP settings.
Obtain an IP address automatically
Use the following IP address:
IP address:
Subnet mask:
Default Gateway:
Obtain DNS server address automatically
Use the following DNS server addresses:
Preferred DNS server:
Alternative DNS server:
Validate settings, if changed, upon exit
Advanced...
OK
The item "Use the following IP address" appears on this
screen and you should fill in the fields as follows:
IP address: 192.168.0.100
Subnet mask: 255.255.255.0
By clicking on OK, your PC is ready to dialogue with the ETI/Domo
server.
DISPOSAL
Make sure the packaging material is not disposed of in nature,
but rather disposed of in compliance with the laws in effect in
the country in which the product is being used. At the end of the
product's life cycle, make sure it not disposed of in nature. The
equipment must be disposed of in compliance with current laws
and its components recycled where possible. The components
that should be recycled are marked with the material's ID marker.
Internet
Enabled
04:34:06
Close
Cancel
Cancel
5
