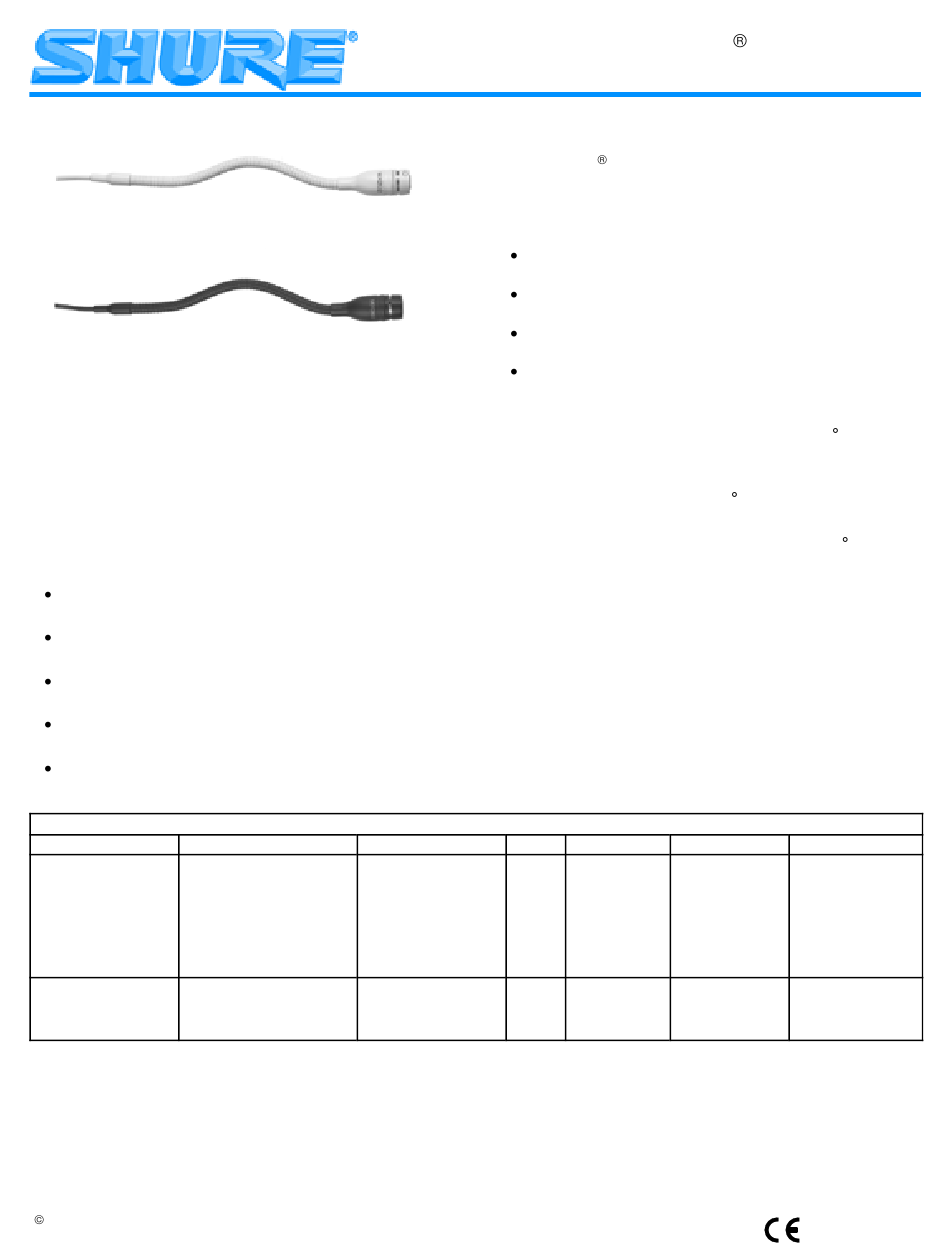

GENERAL
Shure Microflexr MX200 Series microphones are miniature
electret condenser microphones designed for miking choirs
and performance groups. They are typically suspended over
the heads of the performers. Their high sensitivity and wide
frequency range make them suitable for recording, as well as
sound reinforcement applications. An attached 101 mm (4 in.)
gooseneck allows them to be easily aimed at the sound
source.
FEATURES
Wide dynamic range and frequency response for accu-
rate sound reproduction across the audio spectrum
Interchangeable cartridges that provide an optimal polar
pattern choice for each application
Balanced, transformerless output for increased immunity
to noise over long cable runs
Supplied stand-mount adapter for portable applications
(in-line preamplifier versions only)
White or black finish that blends unobtrusively with most
surroundings
Application
Sound reinforcement Stand–mounted or sus-
for choirs or theater
Suspended from ceiling
Ambience recording or Stand–mounted or sus-
remote monitoring of
speech and vocals Suspended from ceiling
2001, Shure Incorporated
27D2836 (AD)
MICROPHONE APPLICATION AND SELECTION GUIDE
Mounting Method Preamplifier Type
pended from ceiling
Plate Mounted
Plate Mounted
Plate Mounted
Plate Mounted
pended from ceiling
Plate Mounted
Plate Mounted
Overhead Microphone User Guide
VARIATIONS
All Microflex microphones are available with any one of
three interchangeable cartridges. The polar pattern of the car-
tridge is indicated by the model number suffix:
C = Cardioid, S = Supercardioid, O= Omnidirectional

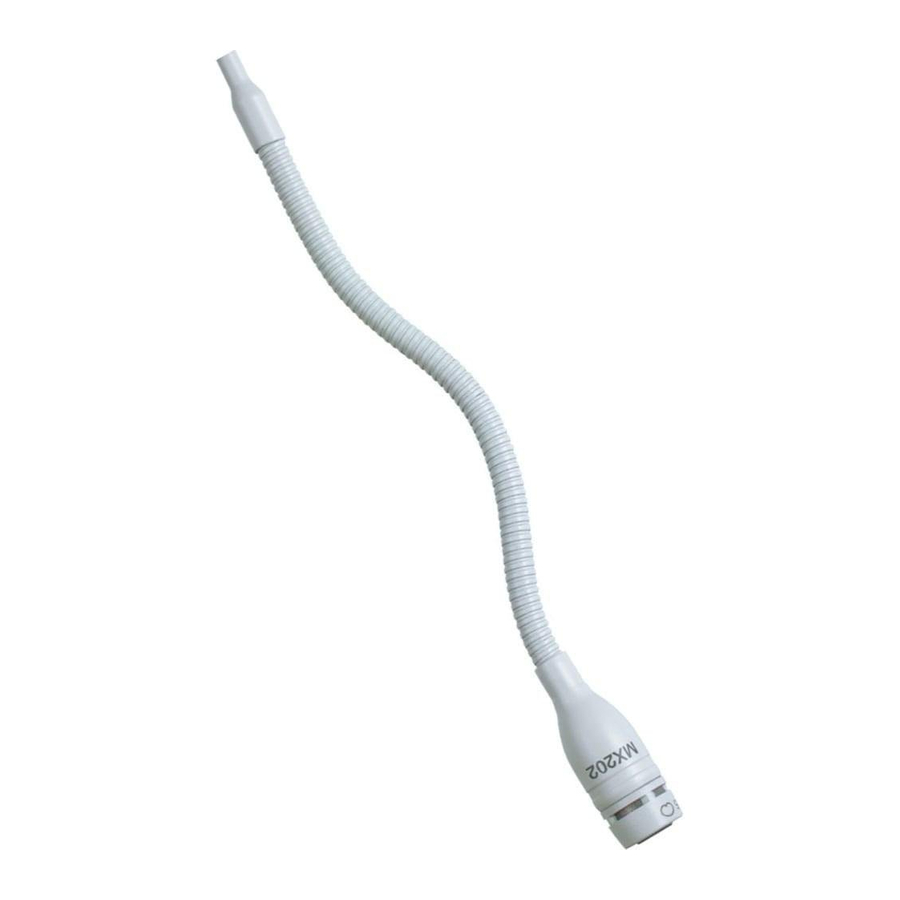

MX202B/C, S, O: Black mini-condenser microphone;
includes cable, in-line preamplifier, and stand adapter.
MX202W/C, S, O: White mini-condenser microphone;
includes cable, in-line preamplifier, and stand adapter.
MX202BP/C, S, O: Black mini-condenser microphone;
includes cable and plate-mounted preamplifier.
MX202WP/C, S, O: White mini-condenser microphone;
includes cable and plate-mounted preamplifier.
Cardioid (C). Recommended for general sound reinforce-
ment applications. Pickup angle (–3 dB) = 130 .
Supercardioid (S). Recommended for sound reinforce-
ment applications requiring narrow or more distant cover-
age. Pickup angle (–3 dB) = 115 .
Omnidirectional (O). Recommended for recording or re-
mote monitoring applications. Pickup angle = 360 .
GENERAL INSTALLATION GUIDELINES
1. For choir installations, hang a microphone 0.6 to 0.9 m
(2-3 ft.) in front of the first row, and 0.6 to 0.9 m (2 to 3
ft.) higher than the heads of the singers in the last row.
Aim the microphone at the back row (See Figure 1).
2. When miking groups that move or vary in size, use a
boom stand and the supplied stand adapter.
3. If four or more microphones will be open at once, an auto-
matic mixer, such as the Shure SCM810 or FP410, is rec-
ommended. Set up the automatic mixer so that all over-
head microphones gate on simultaneously.
Color Polar Pattern
In Line Black
In Line White
In Line Black Supercardioid
In Line White Supercardioid
Black
White
Black Supercardioid
White Supercardioid
In Line Black Omnidirectional
In Line White Omnidirectional
Black Omnidirectional
White Omnidirectional
Microflex MX200 Series
Model
Cardioid MX202B/C
Cardioid MX202W/C
MX202B/S
MX202W/S
Cardioid MX202BP/C
Cardioid MX202WP/C
MX202BP/S
MX202WP/S
MX202B/O
MX202W/O
MX202BP/O
MX202WP/O
Cable length
9 m (30 ft.)
9 m (30 ft.)
