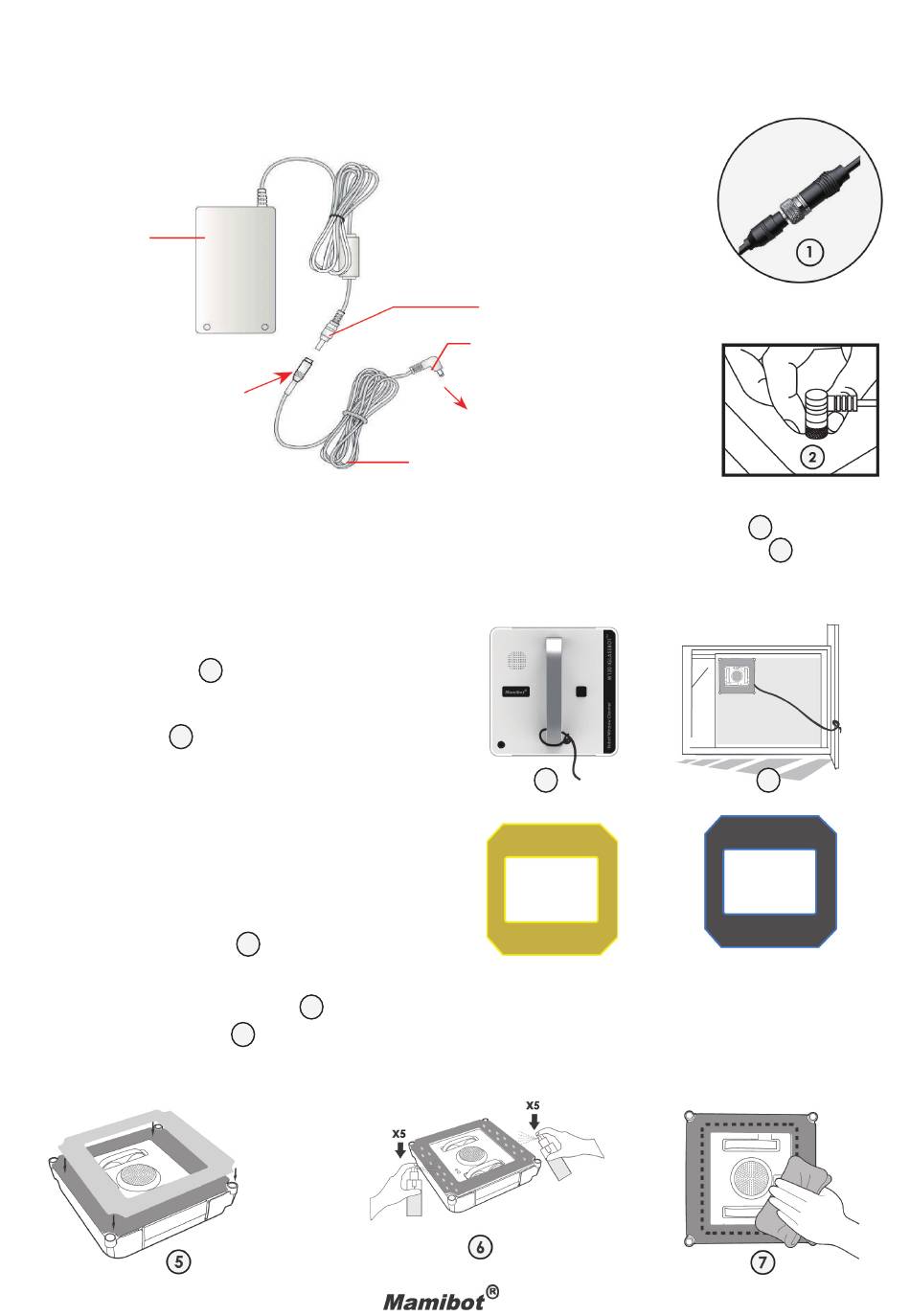

3. Installation

3.1 Assemble the Adapter

Power Adapter
extension cable
connector (End B)
A. Connect DC plug (End A) of Power Adapter with extension cable (End B), as above. 1
B. Connect End C to the robot power socket, screw the connector until it's tightly locked. 2

3.2 Fix the Safety Rope

A. Put the safety rope through the handle and
make a tight knot. 3
B. Tie the other end of the rope to indoor
fixture securely. 4

3.3 Attach Cleaning Pad

A. Choose the proper cleaning pad for your
window.
B. Attach the cleaning pad to W120 bottom
properly,the pad should not cover driving
treads or edge sensors. 5
C. Spray 5 times of cleaning solution to the
upper and lower side of W120, 6 wipe the
bottom after spraying. 7
DC plug (End A)
L-shape connector (End C)
Plug into DC power jack
DE extension cable
3
Yellow Cleaning
Pad for glass with
heavy dirt / dry
cleaning
7
4
Gray Cleaning
Pad for glass with
light dirt / wet
cleaning
