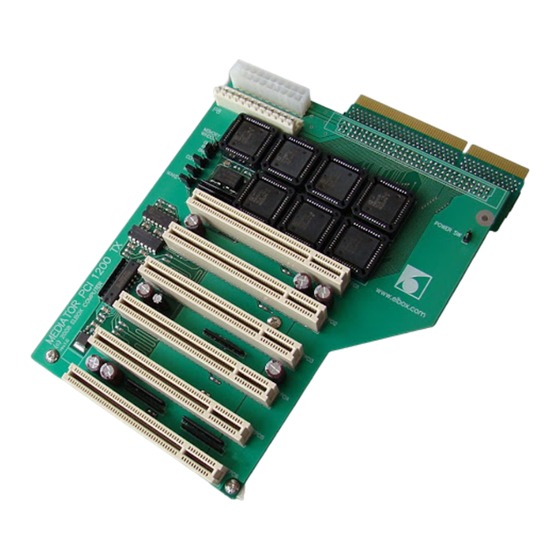

• Ready to run with the existing Amiga 68k and PPC accelerator cards. Hardware in MEDIATOR PCI 1200 is compatible with all the available turbo cards. MEDIATOR PCI 1200 ensures the maximum possible transfers for each and every configuration of any turbo card to any PCI card.
• 64 MB or more SDRAM installed on the SharkPPC G3/G4 turbo board • Hard disk drive 1.3. Package Contents Please check that your Mediator PCI 1200 package contains the following items: • Mediator PCI 1200 busboard • Passthrough for the CPU expansion slot •...
2.2. How to set Jumpers in MEDIATOR PCI 1200 MEMORY WINDOW Set 0 MB If you use 8MB of RAM installed in the memory expansion or in the turbo card configuring this memory in the lower boundary (e.g. M-TEC 1230 turbo card).
PC AT power supply unit with P8 - P9 plugs or you must replace the Infinitiv power supply with any standard PC AT power supply. 3.3. Installing Your MEDIATOR PCI 1200 Now you are ready to install the MEDIATOR PCI 1200 busboard and connect the related devices. Power off your Amiga.
11. Install the MEDIATOR PCI 1200 board in the connector in the passthrough for the CPU slot. 12. Fix the MEDIATOR PCI 1200 board with the M3 bolt to the spacing sleeve. 13. Connect the PSU’s P8 and P9 plugs in the proper power supply connection points in the MEDIATOR PCI 1200 board.
Seite 7
<serial number of your MEDIATOR PCI 1200 busboard (the 7-digit number on the MEDIATOR board and on the box)> <company where your busboard was purchased> Support If you have any questions about MEDIATOR PCI 1200, please contact our technical support: support@elbox.com (c) 2000 ELBOX COMPUTER http://www.elbox.com All rights reserved.
1. Einleitung Vielen Dank für den Kauf der MEDIATOR PCI 1200 Erweiterungskarte. Wir bitten Sie, sich vor dem Beginn der Installation mit dem vorliegenden Handbuch vertraut zu machen. 1.1. Eigenschaften Die Arbeit des MEDIATOR PCI 1200 Systems der Erweiterungen basiert auf der sich in der programmierbaren logischen Strukturen MACH befindenden fortgeschrittenen Algorithmen.
Sechseckige Distanzbuchse und M3 Schraube • Diskette mit Software • Handbuch Alle Vorrichtungen und Untergruppen, die MEDIATOR PCI 1200 Erweiterungssytem bilden, wurden vor dem Versand getestet. 2. Funktionen der Klammer 2.1. Beschreibung der Klammer auf der MEDIATOR PCI 1200 Platte...
Seite 10
Turbokarten Speichererweiterungen (Fabrikeinstellung). GESCHLOSSEN Für zukünftiges Hardware. 3. MEDIATOR PCI 1200 Installation 3.1. Hardwareinstallation Dieses Kapitel soll eine Richtlinie sein für Benutzer, die mit der Installation von Amiga-Peripheriegeräten und Software nicht vertraut sind, und soll ebenfalls als Bezugnahme für erfahrene Benutzer dienen. Befolgen Sie die...
Anschluß der Speisung zu zwei P8-P9 Sitze (AT Standardverbindung) ermöglicht oder den Speiseapparat gegen PC AT Standard-Speiseapparat austauschen. 3.3. Installation der Erweiterungsplatte MEDIATOR PCI 1200 Schalten Sie den Computer aus. Schalten Sie sämtliche Geräte, die an Ihr Computer angeschlossen sind, aus (Drucker, Monitor, usw.).
Distanzbuchse dort ein, wo früher Schraube war. Legen Sie Adapter der Steckfassung des Prozessors zu Steckfassung des Prozessors. Haben Sie bereits installierte ELBOX Fast ATA 1200 Prüfer, fügen Sie Signalbände dazu an. 10. Stellen Sie Klammer auf der MEDIATOR PCI Erweiterungsplatte ihrer Konfiguration gemäß...
Kein Teil der vorliegenden Instruktion kann durch xerographische Methoden oder als Textdatei vervielfacht werden oder übersetzt in beliebige Sprache, die in Hardware, insbesondere in Hardware für Datenbearbeitung verwendet wird, ohne frühere und deutliche schriftliche Genehmigung Elbox Computer. Übersetzung der vorliegenden Instruktion in Fremdsprachen muß durch Elbox Computer autorisiert werden.
Seite 14
1. Bienvenue Merci d'avoir choisi la carte bus MEDIATOR PCI 1200. Avant de procéder à son installation, lisez attentivement ce manuel. 1.1. Caractéristiques du Matériel MEDIATOR PCI 1200 est basé sur l'utilisation d'un noyau logique ELBOX de haute performance optimisé pour toutes les cartes turbo Amiga permettant d'atteindre les meilleures performances avec votre ordinateur: •...
Seite 15
Support hexagonal et boulon M3 • Disquette avec le logiciel • Ce manuel d'utilisateur Le contenu et le fonctionnement de chaque boîte MEDIATOR PCI 1200 ont été vérifiés avant leur envoi. 2. Description des Cavaliers 2.1. Description des Cavaliers du MEDIATOR PCI MEMORY WINDOW 0 MB Espace de la mémoire PCI indisponible, accès à...
2.2. Comment Régler les Cavaliers du MEDIATOR PCI 1200 MEMORY WINDOW Sur 0 MB Si vous utilisez 8MB de RAM installés sur la carte d'expansion mémoire ou la carte turbo configurés dans la partie basse (ex. carte turbo M-TEC 1230).
PC. 3.3. Installer Votre MEDIATOR PCI 1200 Maintenant vous êtes prêt à installer la carte bus MEDIATOR PCI 1200 et à y connecter les unités correspondantes. Eteignez votre Amiga. Eteignez tous les périphériques connectés (imprimante, moniteur, etc..) Déconnectez tous les câbles et connecteurs de l'ordinateur.
Seite 18
(Voir le Chapitre 2.2). Comment Régler les Cavaliers du MEDIATOR PCI 1200 pour des instructions détaillées). 11. Installez la carte MEDIATOR PCI 1200 sur le connecteur CPU de la prise gigogne. 12. Fixez la carte MEDIATOR PCI 1200 avec le "boulon M3" au support hexagonal.
Seite 19
< votre adresse e-mail > < votre version des PILOTES > < numéro de série de votre carte bus MEDIATOR PCI 1200 (le nombre à 7 chiffres sur la carte MEDIATOR et sur la boîte)> < la société qui vous a vendu la carte bus >...
Seite 20
1. Välkommen till MEDIATOR PCI 1200 Tack för ditt köp av MEDIATOR PCI 1200 busskort. Vänligen studera manualen noggrant före installation. 1.1. Hårdvaruspecifikationer MEDIATOR PCI 1200 från Elbox är ett högprestandakort, optimerat för alla modeller Amiga turbokort för kunna erbjuda högsta...
Seite 21
1.3. Innehållsförteckning Var vänlig kontrollera att din Mediator PCI 1200 förpackning innehåller följande: • Mediator PCI 1200 busskort • Genomföringsbuss för CPU-expansionsslotten • Avståndsbult med M3-mutter • Floppydiskett med mjukvara • Denna användarmanual Alla Mediator PCI 1200 förpackningar har blivit kontrollerade vad gäller innehåll och funktionalitet före leverans.
Seite 22
2. Hur sätta jumpers på MEDIATOR PCI 1200 Minnesfönster Sätt 0 MB Om du använder 8MB RAM som minnesexpansion installerat på minneskort eller om turbokortet konfigurerar detta minnet i det låga området (t.ex M-TEC 1230 turbokort). Sätt 4 MB Om du använder 4MB RAM som minnesexpansion installerat på...
Seite 23
Infinitiv nätdelen till en standard PC AT nätdel. 3.3. Installera ditt MEDIATOR PCI 1200 Du är nu redo för att installera MEDIATOR PCI 1200 busskort och till det ansluta passande kort. Stäng av din Amiga.
Seite 24
4. Mjukvaruinstallation 4.1. Installera driver’s Att montera hårdvaran är inte tillräckligt för att kunna nyttja PCI-kort med MEDIATOR PCI 1200 i din Amiga 1200. Nedan beskrivning är enkla steg för att installera MEDIATOR PCI mjukvaru-driver’s. 4.2. Installera MEDIATOR PCI 1200 driver’s OBS: Programmet ‘Installer’...
Seite 25
<serial number of your MEDIATOR PCI 1200 busboard (the 7-digit number on the MEDIATOR board and on the box)> <company where your busboard was purchased> Support Om du har några frågor angående MEDIATOR PCI 1200, vänligen kontakta vår tekniska support: support@elbox.com (c) 2000 ELBOX COMPUTER http://www.elbox.com Du kan även kontakta din återförsäljare för support, felavhjälpning,...
Il MEDIATOR PCI 1200 assicura la più alta velocità di trasferimento per ogni possibile combinazione scheda acceleratrice / scheda PCI. Il MEDIATOR PCI 1200 può trasferire dati dalla o verso la scheda acceleratrice fino ad un massimo di 132MB/s. L’unico limite pratico è...
Seite 27
Tutte le confezioni Mediator PCI1200 vengono ispezionate prima della spedizione per verificarne la presenza di tutte le parti ed il funzionamento. 2. Descrizione dei Ponticelli 2.1. Descrizione dei Ponticelli del MEDIATOR PCI 1200 MEMORY WINDOW 0 MB Non è disponibile spazio per la memoria PCI; è permesso l’accesso solo allo spazio I/O PCI;...
Seite 28
2.2. Come Regolare i Ponticelli del MEDIATOR PCI 1200 MEMORY WINDOW Su 0 MB Se si hanno 8MB di RAM installati su una scheda d’espansione o su una scheda acceleratrice che configura la sua memoria nella zona più bassa della memoria dell’Amiga (per esempio la scheda acceleratrice M-TEC 1230)).
PC di tipo AT con connettori P8-P9 o dovrete sostituire l’alimentatore con uno standard. 3.3. Installazione Ora siete pronti ad installare il Mediator PCI 1200 e installare le relative schede PCI. Spegnete l’Amiga. Spegnete ogni eventuale periferica collegata all’Amiga (stampante, monitor, ecc.).
Se sulla scheda madre c’è un controller PowerFlyer FastATA 1200, collegarne i cavi a 40 poli. 10. Regolare tutti i ponticelli sul Mediator PCI 1200 in base alla propria configurazione (per ulteriori informazioni vedere il paragrafo Come Regolare i Ponticelli del MEDIATOR PCI 1200).
Seite 31
Mediator (pci.library, PciInfo, Vendor.txt), i drivers attualmente disponibili per schede PCI ed infine installerà il sistema CyberGraphXV3 con i drivers per schede grafiche PCI. Registrazione Per aggiornamento del software per il Mediator PCI 1200 via e-mail, spedite un messaggio a support@elbox.com subject:...
