Avocent AMX Serie Schnellinstallationsanleitung

The following instructions will help you
to connect your AMX switching system.
For more detailed information, please consult
your installer/user guide.
Initial setup
Place the AMX switch and AMX user stations
in the desired locations. Rack mounting
brackets are included with the AMX switch for
easy installation.
1
Connecting power
Ensure that all power to the AMX switching
system is powered off. Attach the supplied
power cord to each AMX switch and each AMX
user station. Attach the other end of each cord
to an AC power source.
2
Connecting to the LAN
Attach a UTP cable to the Network port on the
AMX switch. Attach the other end of the UTP
cable to the LAN.
3
Connecting the user station to the
AMX switch
Attach a UTP cable to one of the two RJ-45
ports on the user station. Attach the other end
of the UTP cable to a numbered RJ-45 user
port on the left side of the AMX switch. Repeat
for each user station in the switching system.
4
Connecting a server to the AMX switch
Choose an appropriate IQ module and insert
the connectors into the corresponding ports
on the server. Attach a UTP cable to the RJ-
To Contact Avocent Technical Support
Avocent, the Avocent logo, AMX, AMWorks and The Power of Being There are registered trademarks of Avocent Corporation. All other marks are the property of their respective owners. ©2007 Avocent Corporation. All rights reserved.
Quick Installation Guide
AMX
®
Switching System

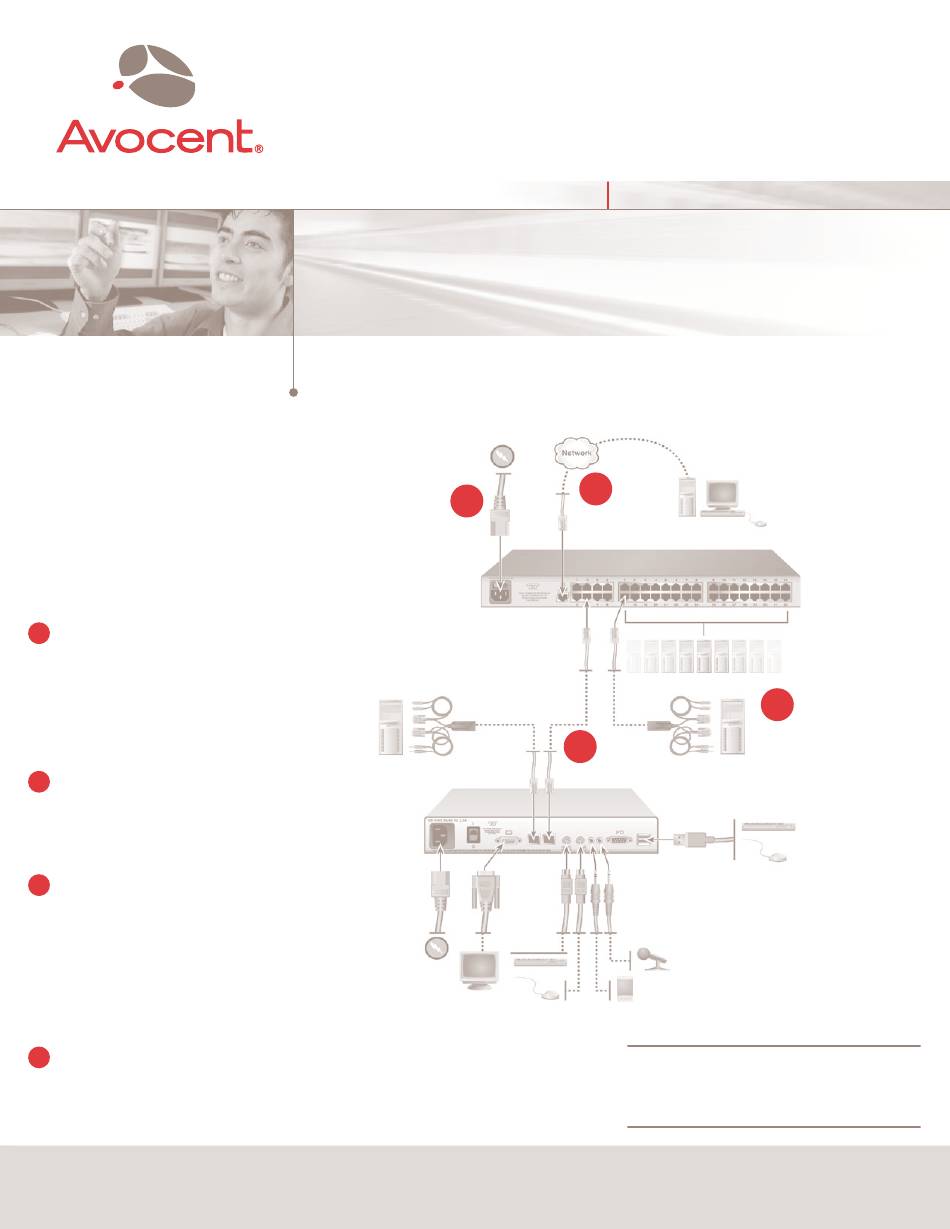

To install the AMX switch and the
AMX user station
1
AMX Switch
(AMX5000
Switch Shown)
IQ Module
(AMIQDM PS/2
Module Shown)
Local Server
AMX User Station
(AMX5130 User
Station Shown)
Monitor
45 port on the IQ module. Attach the other end of
the UTP cable to an RJ-45 server port on the right
side of the AMX switch. Repeat for each server in the
switching system.
CALL (888) 793-8763
The Power of Being There
2
3
Stereo Speakers
and Microphone
PS/2 Keyboard
and Mouse
NOTE: Some IQ modules provide audio and
serial connectors, which may be left unattached
from the server if this functionality is not required.
VISIT www.avocent.com/support
®
Server with
®
AMWorks Software
4
IQ Module
(AMIQDM PS/2
Module Shown)
USB Keyboard
and Mouse
DOWNLOAD www.avocent.com
