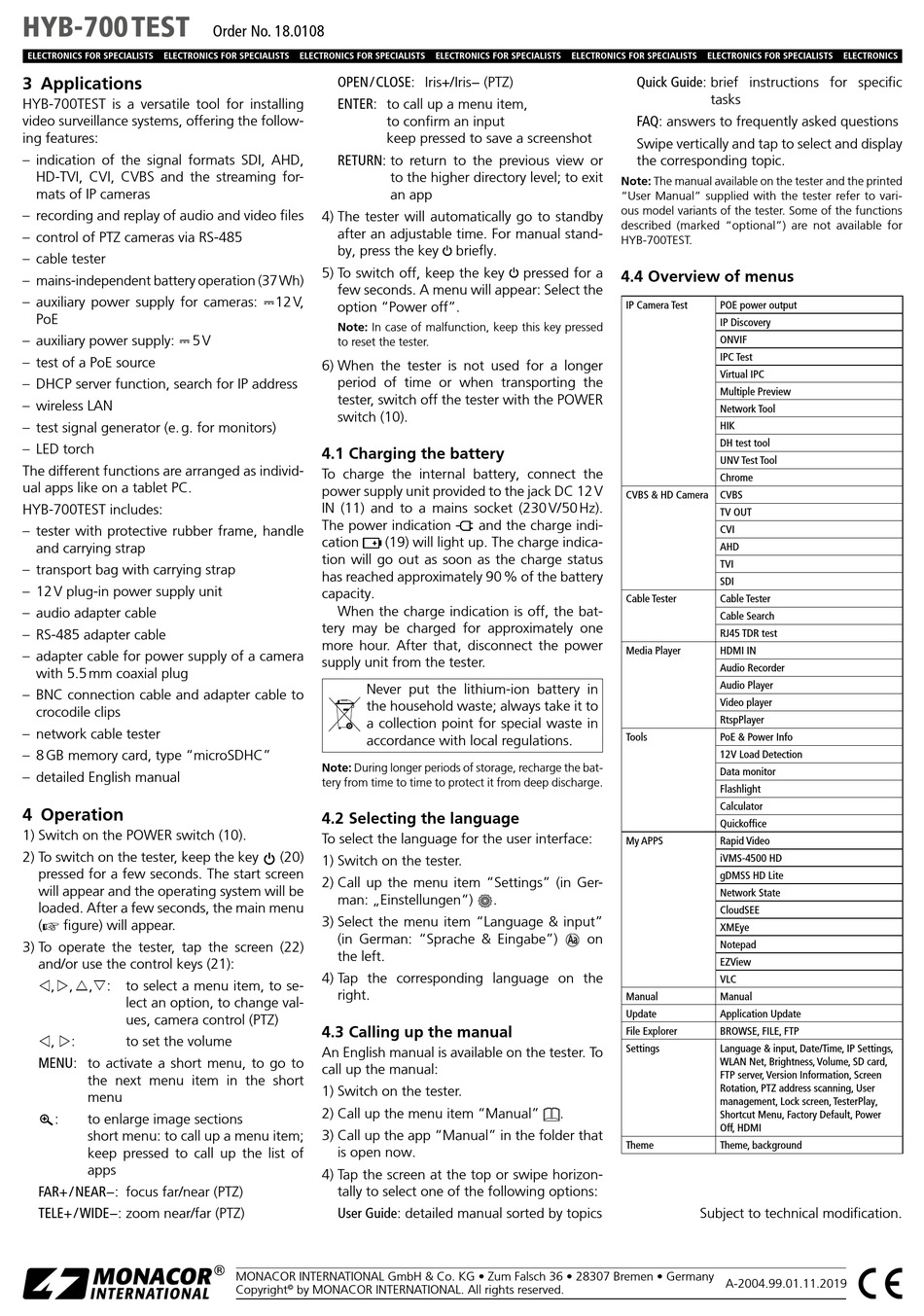

HYB-700 TEST
ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS
3 Applications
HYB­700TEST is a versatile tool for installing
video surveillance systems, offering the follow­
ing features:
– indication of the signal formats SDI, AHD,
HD­TVI, CVI, CVBS and the streaming for­
mats of IP cameras
– recording and replay of audio and video files
– control of PTZ cameras via RS­485
– cable tester
– mains­independent battery operation (37 Wh)
– auxiliary power supply for cameras: ⎓ 12 V,
PoE
– auxiliary power supply: ⎓ 5 V
– test of a PoE source
– DHCP server function, search for IP address
– wireless LAN
– test signal generator (e. g. for monitors)
– LED torch
The different functions are arranged as individ­
ual apps like on a tablet PC.
HYB­700TEST includes:
– tester with protective rubber frame, handle
and carrying strap
– transport bag with carrying strap
– 12 V plug­in power supply unit
– audio adapter cable
– RS­485 adapter cable
– adapter cable for power supply of a camera
with 5.5 mm coaxial plug
– BNC connection cable and adapter cable to
crocodile clips
– network cable tester
– 8 GB memory card, type "microSDHC"
– detailed English manual
4 Operation
1) Switch on the POWER switch (10).
2) To switch on the tester, keep the key
pressed for a few seconds. The start screen
will appear and the operating system will be
loaded. After a few seconds, the main menu
( figure) will appear.
☞
3) To operate the tester, tap the screen (22)
and/or use the control keys (21):
, , ,: to select a menu item, to se­
lect an option, to change val­
ues, camera control (PTZ)
, : to set the volume
MENU: to activate a short menu, to go to
the next menu item in the short
menu
: to enlarge image sections
short menu: to call up a menu item;
keep pressed to call up the list of
apps
FAR+ / NEAR−: focus far/near (PTZ)
TELE+ / WIDE−: zoom near/far (PTZ)
Order No. 18.0108
ELECTRONICS FOR SPECIALISTS
OPEN / CLOSE: Iris+/ Iris− (PTZ)
ENTER: to call up a menu item,
to confirm an input
keep pressed to save a screenshot
RETURN: to return to the previous view or
4) The tester will automatically go to standby
after an adjustable time. For manual stand­
by, press the key
5) To switch off, keep the key
few seconds. A menu will appear: Select the
option "Power off".
Note: In case of malfunction, keep this key pressed
to reset the tester.
6) When the tester is not used for a longer
period of time or when transporting the
tester, switch off the tester with the POWER
switch (10).
4.1 Charging the battery
To charge the internal battery, connect the
power supply unit provided to the jack DC 12 V
IN (11) and to a mains socket (230 V/ 50 Hz).
The power indication
cation (19) will light up. The charge indica­
tion will go out as soon as the charge status
has reached approximately 90 % of the battery
capacity.
When the charge indication is off, the bat­
tery may be charged for approximately one
more hour. After that, disconnect the power
supply unit from the tester.
Never put the lithium­ion battery in
the household waste; always take it to
a collection point for special waste in
accordance with local regulations.
Note: During longer periods of storage, recharge the bat­
tery from time to time to protect it from deep discharge.
4.2 Selecting the language
To select the language for the user interface:
(20)
1) Switch on the tester.
2) Call up the menu item "Settings" (in Ger­
man: „Einstellungen")
3) Select the menu item "Language & input"
(in German: "Sprache & Eingabe")
the left.
4) Tap the corresponding language on the
right.
4.3 Calling up the manual
An English manual is available on the tester. To
call up the manual:
1) Switch on the tester.
2) Call up the menu item "Manual"
3) Call up the app "Manual" in the folder that
is open now.
4) Tap the screen at the top or swipe horizon­
tally to select one of the following options:
User Guide: detailed manual sorted by topics
MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
Copyright by MONACOR INTERNATIONAL. All rights reserved.
©
ELECTRONICS FOR SPECIALISTS
to the higher directory level; to exit
an app
briefly.
pressed for a
and the charge indi­
.
.
ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS
Quick Guide: brief instructions for specific
tasks
FAQ: answers to frequently asked questions
Swipe vertically and tap to select and display
the corresponding topic.
Note: The manual available on the tester and the printed
"User Manual" supplied with the tester refer to vari­
ous model variants of the tester. Some of the functions
described (marked "optional") are not available for
HYB­700TEST.
4.4 Overview of menus
IP Camera Test POE power output
IP Discovery
ONVIF
IPC Test
Virtual IPC
Multiple Preview
Network Tool
HIK
DH test tool
UNV Test Tool
Chrome
CVBS & HD Camera CVBS
TV OUT
CVI
AHD
TVI
SDI
Cable Tester Cable Tester
Cable Search
RJ45 TDR test
Media Player HDMI IN
Audio Recorder
Audio Player
Video player
RtspPlayer
Tools PoE & Power Info
12V Load Detection
Data monitor
Flashlight
Calculator
Quickoffice
My APPS Rapid Video
iVMS-4500 HD
gDMSS HD Lite
Network State
CloudSEE
XMEye
on
Notepad
EZView
VLC
Manual Manual
Update Application Update
File Explorer BROWSE, FILE, FTP
Settings Language & input, Date/Time, IP Settings,
WLAN Net, Brightness, Volume, SD card,
FTP server, Version Information, Screen
Rotation, PTZ address scanning, User
management, Lock screen, TesterPlay,
Shortcut Menu, Factory Default, Power
Off, HDMI
Theme Theme, background
Subject to technical modification.
A-2004.99.01.11.2019
