HYB-700 TEST
Order No. 18.0108
ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS
Multifunction Tester for
Video Surveillance
These brief instructions are intended for
installers of video surveillance systems
with specific technical knowledge. Please
read the instructions carefully prior to op­
eration and keep them for later reference.
A detailed English manual is available on
the tester.
1 Safety Notes
The products (tester, power supply unit, net­
work cable tester) correspond to all relevant
directives of the EU and are therefore marked
with .
WARNING The power supply unit uses
dangerous mains voltage.
Leave servicing to skilled per­
sonnel only: Risk of electric
shock!
•
The products are suitable for indoor use only.
Protect them against dripping water, splash
water and high air humidity. The admissible
ambient temperature range is 0 – 40 °C.
•
Do not operate the tester in environments
with strong electromagnetic fields or close
to combustible gas.
•
Do not operate the products and immediate­
ly disconnect the power supply unit from the
socket
1. if one of the products is visibly damaged,
2. if a defect might have occurred after a
product was dropped or suffered a similar
accident,
3. if malfunctions occur.
In any case, the products must be repaired by
skilled personnel.
•
For cleaning only use a dry, soft cloth; never
use water or chemicals.
•
Do not leave the tester unattended while it
is being charged and do not charge for more
than 8 hours.
•
No guarantee claims for the products and
no liability for any resulting personal damage
or material damage will be accepted if the
products are used for other purposes than
originally intended, if they are not correctly
connected or operated, or if they are not re­
paired in an expert way. Likewise, no liability
will be accepted for any data loss as a result
of operating errors or a defect or for any con­
sequential damage caused by this data loss.
If the products are to be put out of
operation definitively, take them to
a local recycling plant for a disposal
which is not harmful to the environ­
ment.
ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS
1.1 Conformity and approval
Herewith, MONACOR INTERNATIONAL declare
that HYB­700TEST complies with the directive
2014 / 53 / EU. The EU declaration of conformity
is available on the Internet:
www.monacor.com
The tester operating in the range of 2.4 GHz
is generally approved for operation in EU and
EFTA countries. It is licence­free and requires
no registration.

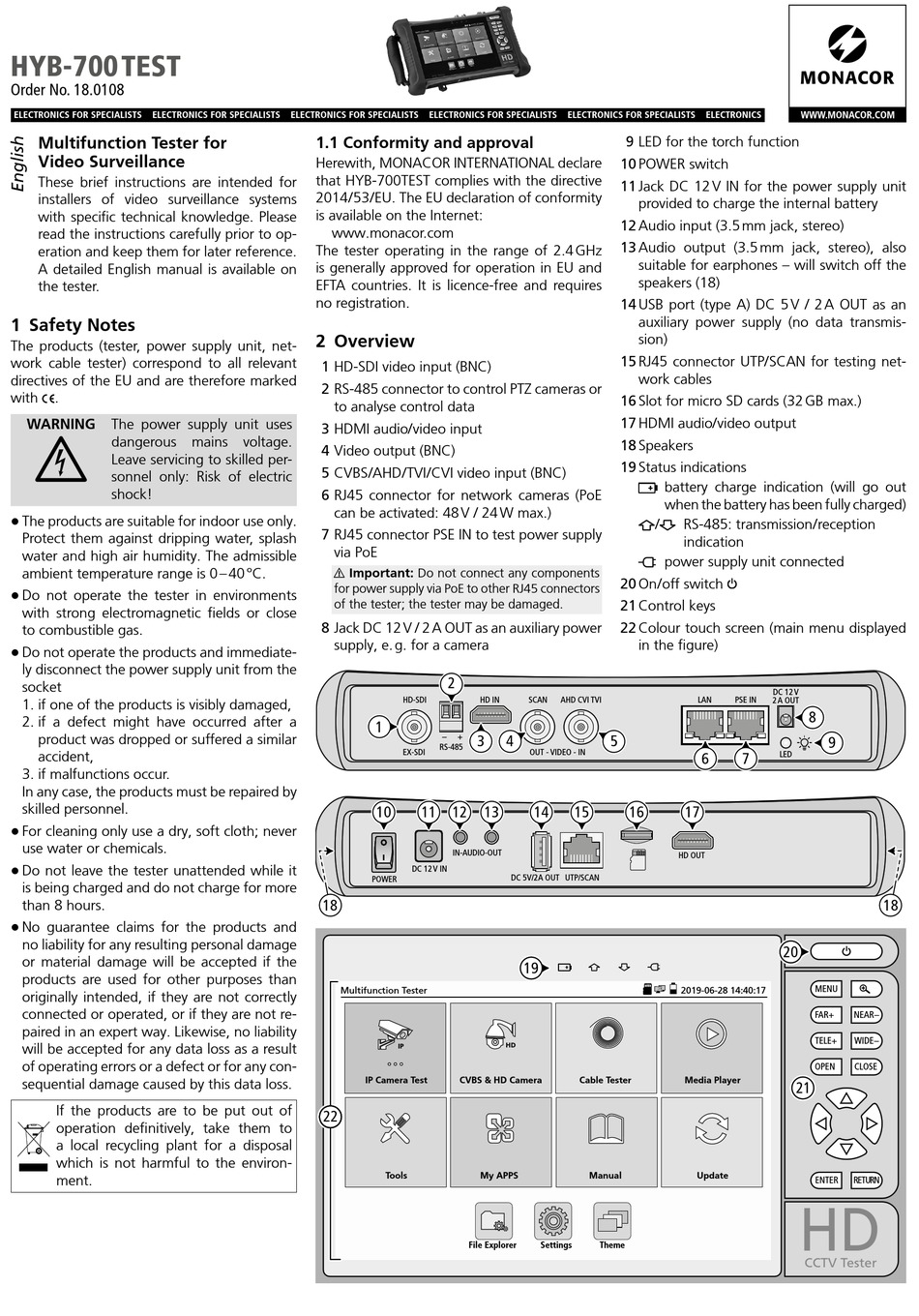

2 Overview
1 HD­SDI video input (BNC)
2 RS­485 connector to control PTZ cameras or
to analyse control data
3 HDMI audio/ video input
4 Video output (BNC)
5 CVBS /AHD / TVI / CVI video input (BNC)
6 RJ45 connector for network cameras (PoE
can be activated: 48 V / 24 W max.)
7 RJ45 connector PSE IN to test power supply
via PoE
⚠ Important: Do not connect any components
for power supply via PoE to other RJ45 connectors
of the tester; the tester may be damaged.
8 Jack DC 12 V / 2 A OUT as an auxiliary power
supply, e. g. for a camera
2
HD-SDI
1
− +
RS-485
EX-SDI
10 11 12
IN-AUDIO-OUT
DC 12V IN
POWER
18
Multifunction Tester
IP
IP Camera Test CVBS & HD Camera
22
Tools
ELECTRONICS FOR SPECIALISTS
9 LED for the torch function
10 POWER switch
11 Jack DC 12 V IN for the power supply unit
provided to charge the internal battery
12 Audio input (3.5 mm jack, stereo)
13 Audio output (3.5 mm jack, stereo), also
suitable for earphones – will switch off the
speakers (18)
14 USB port (type A) DC 5 V / 2 A OUT as an
auxiliary power supply (no data transmis­
sion)
15 RJ45 connector UTP/ SCAN for testing net­
work cables
16 Slot for micro SD cards (32 GB max.)
17 HDMI audio/ video output
18 Speakers
19 Status indications
20 On / off switch
21 Control keys
22 Colour touch screen (main menu displayed
in the figure)
HD IN SCAN AHD CVI TVI
3 4 5
OUT - VIDEO - IN
13 14 15 16
DC 5V/2A OUT UTP/SCAN
19
HD
Cable Tester
My APPS Manual
File Explorer Settings Theme
ELECTRONICS
battery charge indication (will go out
when the battery has been fully charged)
/ RS­485: transmission / reception
indication
power supply unit connected
DC 12V
LAN PSE IN 2 A OUT
8
9
6 7 LED
17
HD OUT
20
MENU
2019-06-28 14:40:17
FAR+
TELE+
OPEN
Media Player
21
Update
ENTER
HD
CCTV Tester
18
NEAR−
WIDE−
CLOSE
RETURN
