14
Assembly
• Please observe the standards and conditions in
your country.
Caution: Ensure that you do not strip too much of
the power cable to prevent any wires from tou-
ching the screws.

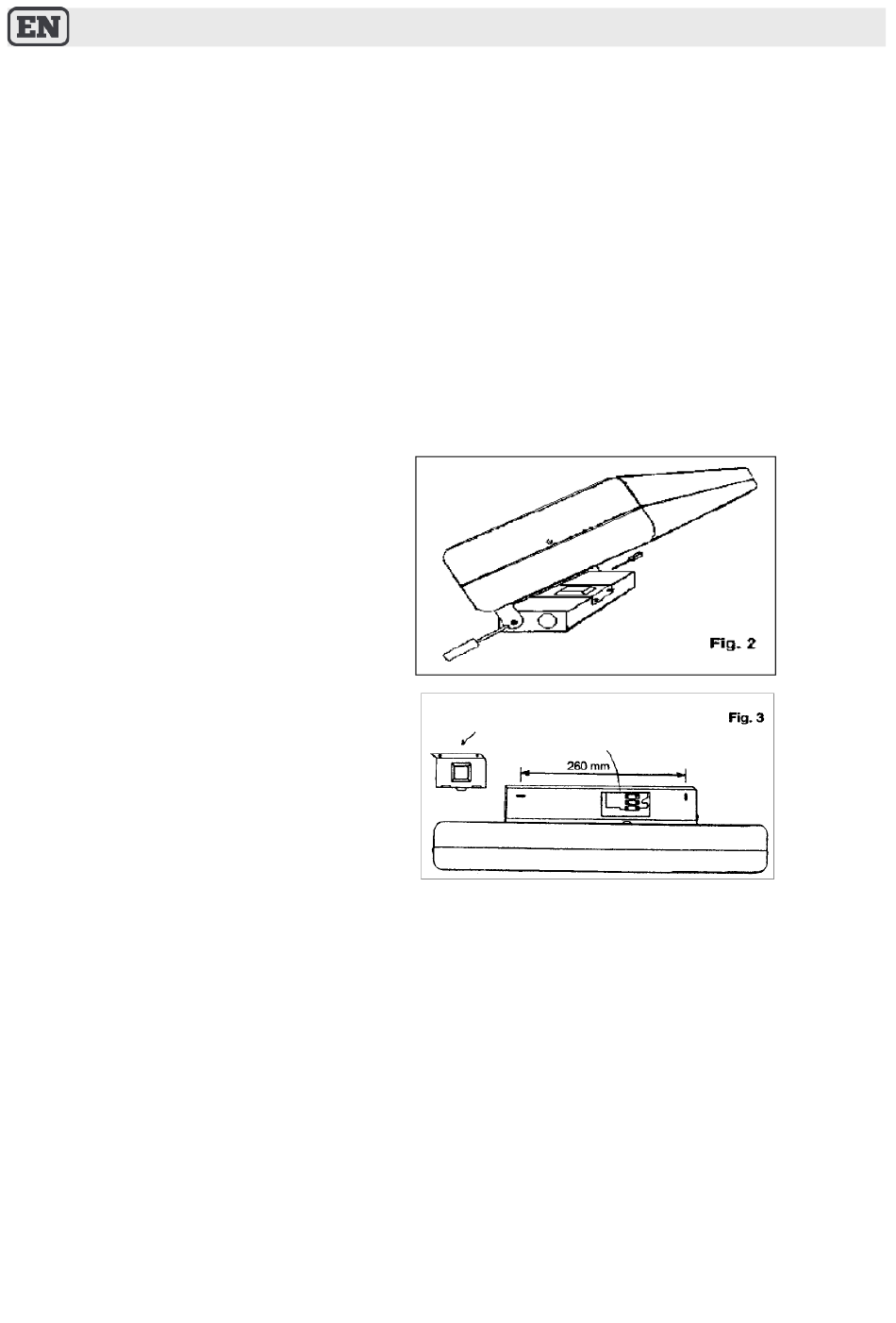

• After the heater was mounted on the wall, you can
lift the heater, attach and fix the console-cover.
Now the connection space is covered with it. The
swivel area of the upper part is limited to approx.
30° angle. Convenient angle to the tilting put and
fix the mechanism to the swivelling by tightening
both screws (s. Fig. 2).Now you can use the
quartz heater.
